FRAME COVER

RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250

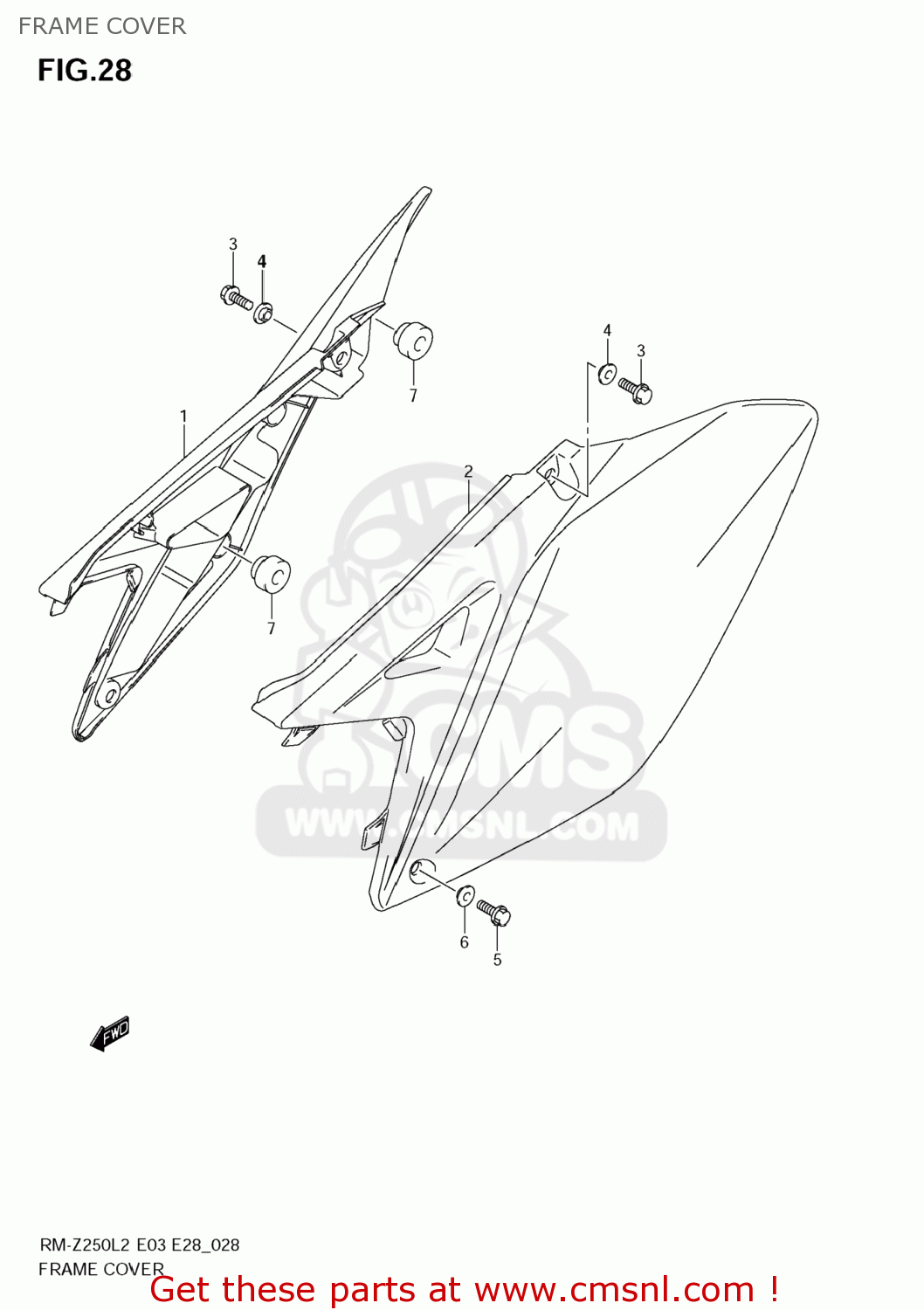

Frame cover diagram RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250

FRAME COVER RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250

FRAME COVER RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250

prices are in EUR

ref

part #

description

quantity

1

4711049H00GY8
ref: 1

COVER,FRAME,R

€ 81.00

2

4721049H01GY8
ref: 2

COVER,FRAME,L

€ 81.00

3

015470620A
ref: 3

BOLT

€ 2.50

4

4719110H01
ref: 4

WASHER

€ 6.00

5

015470616A
ref: 5

BOLT

€ 2.00

6

4719110H01
ref: 6

WASHER

€ 6.00

7

4716108G00
ref: 7

CUSHION

€ 5.00
