FRONT DAMPER

RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250

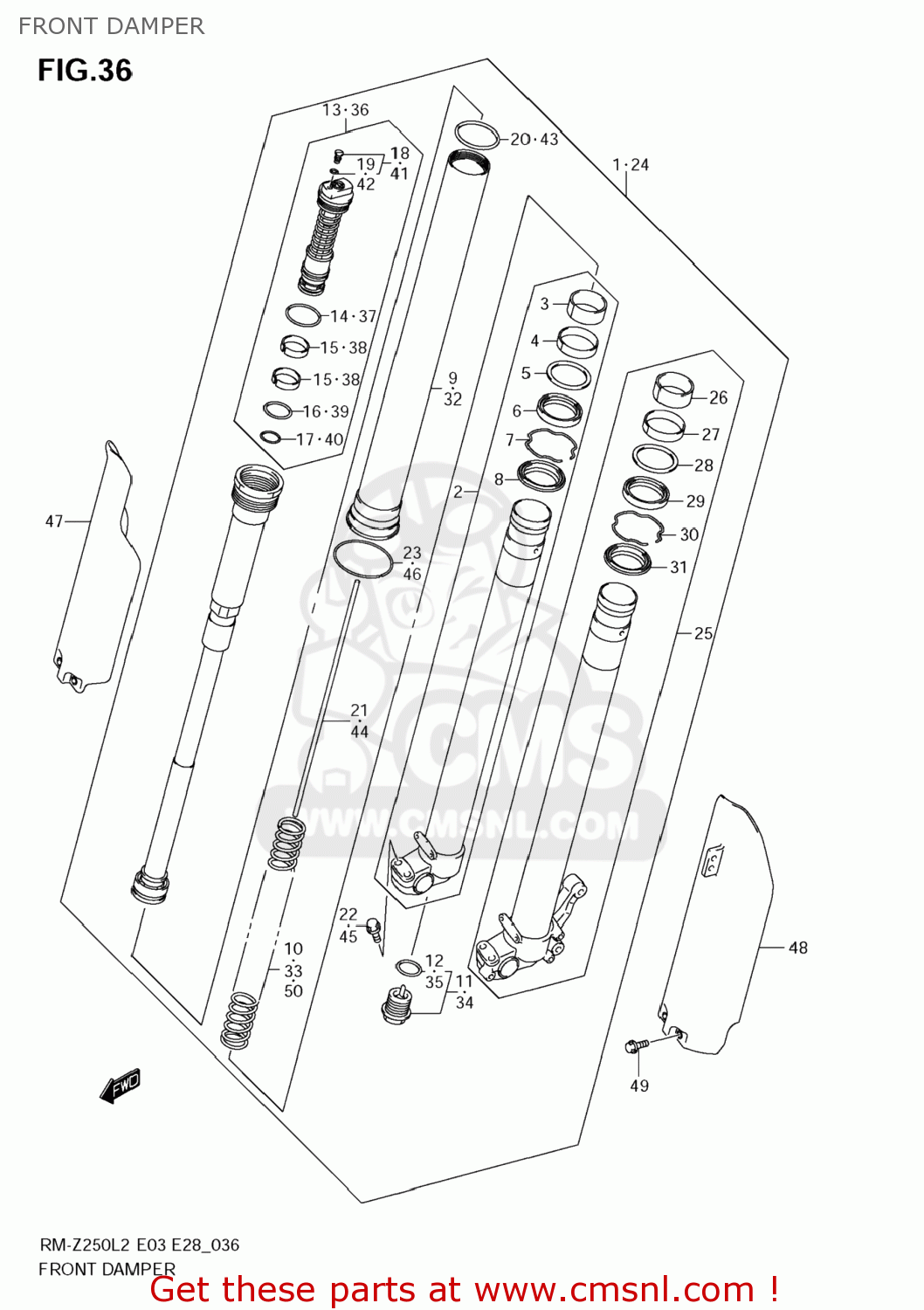

Front damper diagram RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250

FRONT DAMPER RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250
FRONT DAMPER RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250
FRONT DAMPER RM-Z250 2012 (L2) USA (E03) RMZ250 RM Z250
prices are in EUR
ref
part #
description
quantity
1
5110349H10
ref: 1
DAMPER ASSY,FR FORK,R
€ 1,274.00
2
5111028H10
ref: 2
TUBE,INNER,R
€ 327.50
3
5112128H10
ref: 3
BUSH
€ 11.50
4
5116728H10
ref: 4
BUSH,GUIDE
5116728H10
€ 18.50
5
5115836F00
ref: 5
SPACER,SEAL
5115836F00
€ 5.00
6
5115337F80
ref: 6
SEAL,OIL
5115337F80
€ 13.50
7
5115627C40
ref: 7
RING,OIL SEAL STOPPER
5115627C40
€ 3.50
8
5117337F80
ref: 8
SEAL,DUST
5117337F80
€ 16.50
9
5113010H10
ref: 9
TUBE,OUTER
€ 520.00
10
5117128H00
ref: 10
SPRING,FR(K=0.47)
€ 112.00
11
5117037FC0
ref: 11
BOLT,CTR
5117037FC0
€ 139.50
12
5117736E20
ref: 12
O RING
5117736E20
€ 2.50
13
5135149H10
ref: 13
BOLT,FORK
€ 300.00
14
5111737F80
ref: 14
O RING
5111737F80
€ 3.50
15
5112328H10
ref: 15
BUSH
5112328H10
€ 18.00
16
5117436E40
ref: 16
O RING
5117436E40
€ 2.50
17
5117537F80
ref: 17
O RING
5117537F80
€ 3.50
18
5135736F20
ref: 18
BOLT,PLUG
5135736F20
€ 8.00
19
5135828E30
ref: 19
O RING,PLUG
5135828E30
€ 2.50
20
5111837F80
ref: 20
O RING
5111837F80
€ 4.00
21
5119110H10
ref: 21
ROD,PUSH
5119110H10
€ 13.50
22
5132837F80
ref: 22
BOLT
5132837F80
€ 5.00
23
5121137FC0
ref: 23
STOPPER,RING
5121137FC0
€ 5.00
24
5110449H10
ref: 24
DAMPER ASSY,FR FORK,L
€ 1,274.00
25
5112028H10
ref: 25
TUBE,INNER,L
€ 327.50
26
5112128H10
ref: 26
BUSH
€ 11.50
27
5116728H10
ref: 27
BUSH,GUIDE
5116728H10
€ 18.50
28
5115836F00
ref: 28
SPACER,SEAL
5115836F00
€ 5.00
29
5115337F80
ref: 29
SEAL,OIL
5115337F80
€ 13.50
30
5115627C40
ref: 30
RING,OIL SEAL STOPPER
5115627C40
€ 3.50
31
5117337F80
ref: 31
SEAL,DUST
5117337F80
€ 16.50
32
5113010H10
ref: 32
TUBE,OUTER
€ 520.00
33
5117128H00
ref: 33
SPRING,FR(K=0.47)
€ 112.00
34
5117037FC0
ref: 34
BOLT,CTR
5117037FC0
€ 139.50
35
5117736E20
ref: 35
O RING
5117736E20
€ 2.50
36
5135149H10
ref: 36
BOLT,FORK
€ 300.00
37
5111737F80
ref: 37
O RING
5111737F80
€ 3.50
38
5112328H10
ref: 38
BUSH
5112328H10
€ 18.00
39
5117436E40
ref: 39
O RING
5117436E40
€ 2.50
40
5117537F80
ref: 40
O RING
5117537F80
€ 3.50
41
5135736F20
ref: 41
BOLT,PLUG
5135736F20
€ 8.00
42
5135828E30
ref: 42
O RING,PLUG
5135828E30
€ 2.50
43
5111837F80
ref: 43
O RING
5111837F80
€ 4.00
44
5119110H10
ref: 44
ROD,PUSH
5119110H10
€ 13.50
45
5132837F80
ref: 45
BOLT
5132837F80
€ 5.00
46
5121137FC0
ref: 46
STOPPER,RING
5121137FC0
€ 5.00
47
5150128H20
ref: 47
51501-28H21
PROTECTOR,FRON
€ 49.00
48
5151128H20
ref: 48
51511-28H21
PROTECTOR,FRON
€ 69.50
49
0911106098
ref: 49
BOLT(6X10)
0911106098
€ 2.00
50-1
5117128H10
ref: 50-1
SPRING,FR(K=0.45)
5117128H10
€ 112.00
50-2
5117128H20
ref: 50-2
SPRING,FR(K=0.49)
€ 112.00
