BRAKE PEDAL

RM-Z450 2007 (K7) USA (E03) RMZ450 RM Z450

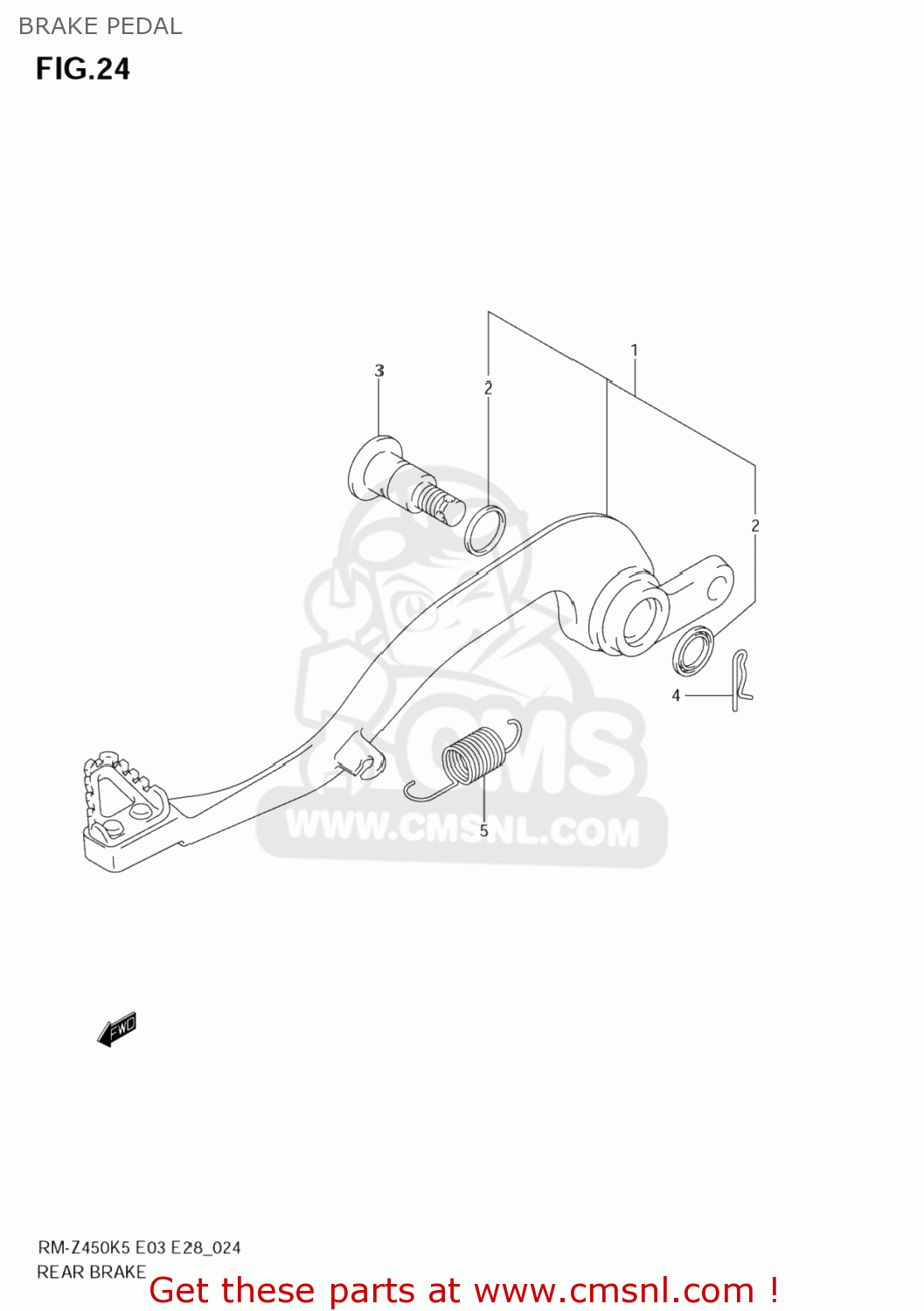

Brake pedal diagram RM-Z450 2007 (K7) USA (E03) RMZ450 RM Z450

BRAKE PEDAL RM-Z450 2007 (K7) USA (E03) RMZ450 RM Z450

BRAKE PEDAL RM-Z450 2007 (K7) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1-1

4310035G00
ref: 1-1

PEDAL ASSY,BRAKE

€ 131.00

1-2

4310035G10
ref: 1-2

PEDAL ASSY,BRAKE

€ 131.00

2

0928415006
ref: 2

SEAL,OIL(15X21X3)

€ 3.50

3

4314237F00
ref: 3

SHAFT,BRAKE PEDAL

€ 17.00

4

0938510005
ref: 4

CLIP

€ 1.50

5

0944313037
ref: 5

SPRING

€ 3.00
