CRANKCASE (RM-Z450K 8/K9/L0)

RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450

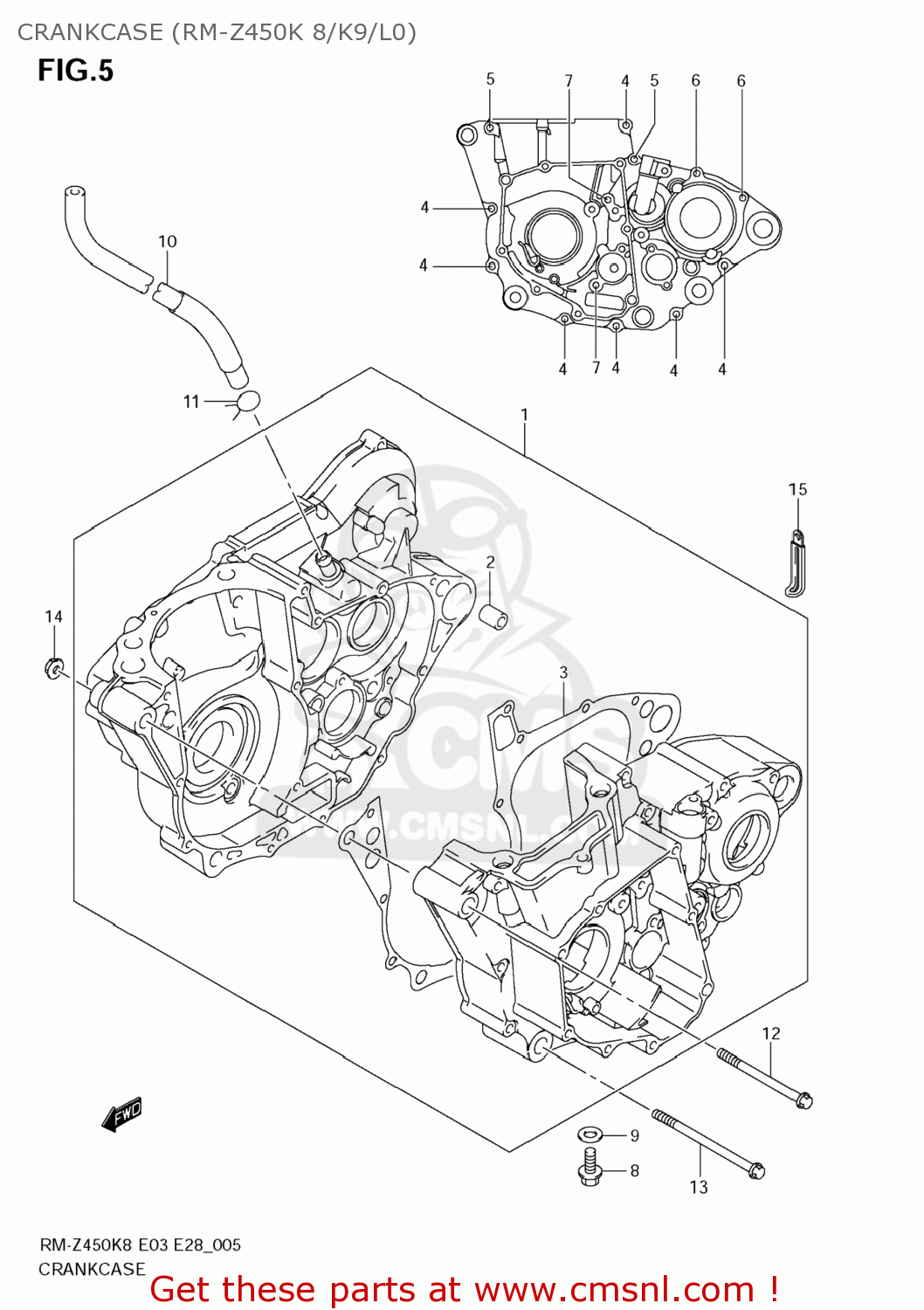

Crankcase (rm-z450k 8/k9/l0) diagram RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450

CRANKCASE (RM-Z450K 8/K9/L0) RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450
CRANKCASE (RM-Z450K 8/K9/L0) RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450
CRANKCASE (RM-Z450K 8/K9/L0) RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450
prices are in EUR
ref
part #
description
quantity
1-1
1130128842
ref: 1-1
CRANKCASE SET
€ 876.00
1-2
1130128862
ref: 1-2
CRANKCASE SET
€ 876.00
2
0920613020
ref: 2
PIN(10.4X13X18)
0920613020
€ 2.50
3
1148128H00
ref: 3
GASKET,CRANKCASE (NAS)
1148128H00
€ 13.00
4
015470655A
ref: 4
BOLT
015470655A
€ 2.50
5
015470665A
ref: 5
BOLT
015470665A
€ 2.50
6
015470675A
ref: 6
BOLT
015470675A
€ 2.00
7
015470680A
ref: 7
BOLT
015470680A
€ 2.00
8
0910308393
ref: 8
BOLT(8X20)
0910308393
€ 2.00
9
0916808016
ref: 9
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
10-1
1133235G11
ref: 10-1
HOSE,BREATHER
€ 20.50
10-2
1133228H00
ref: 10-2
HOSE,BREATHER
€ 20.50
11
0940113301
ref: 11
CLIP
0940113301
€ 2.00
12
0910310403
ref: 12
BOLT(10X135)
0910310403
€ 12.00
13
0910310399
ref: 13
BOLT(10X125)
0910310399
€ 7.00
14
0915910115
ref: 14
NUT
0915910115
€ 4.00
15
0940406429
ref: 15
CLAMP(L:45)
€ 2.50
