REAR WHEEL (RM-Z450 L1)

RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450

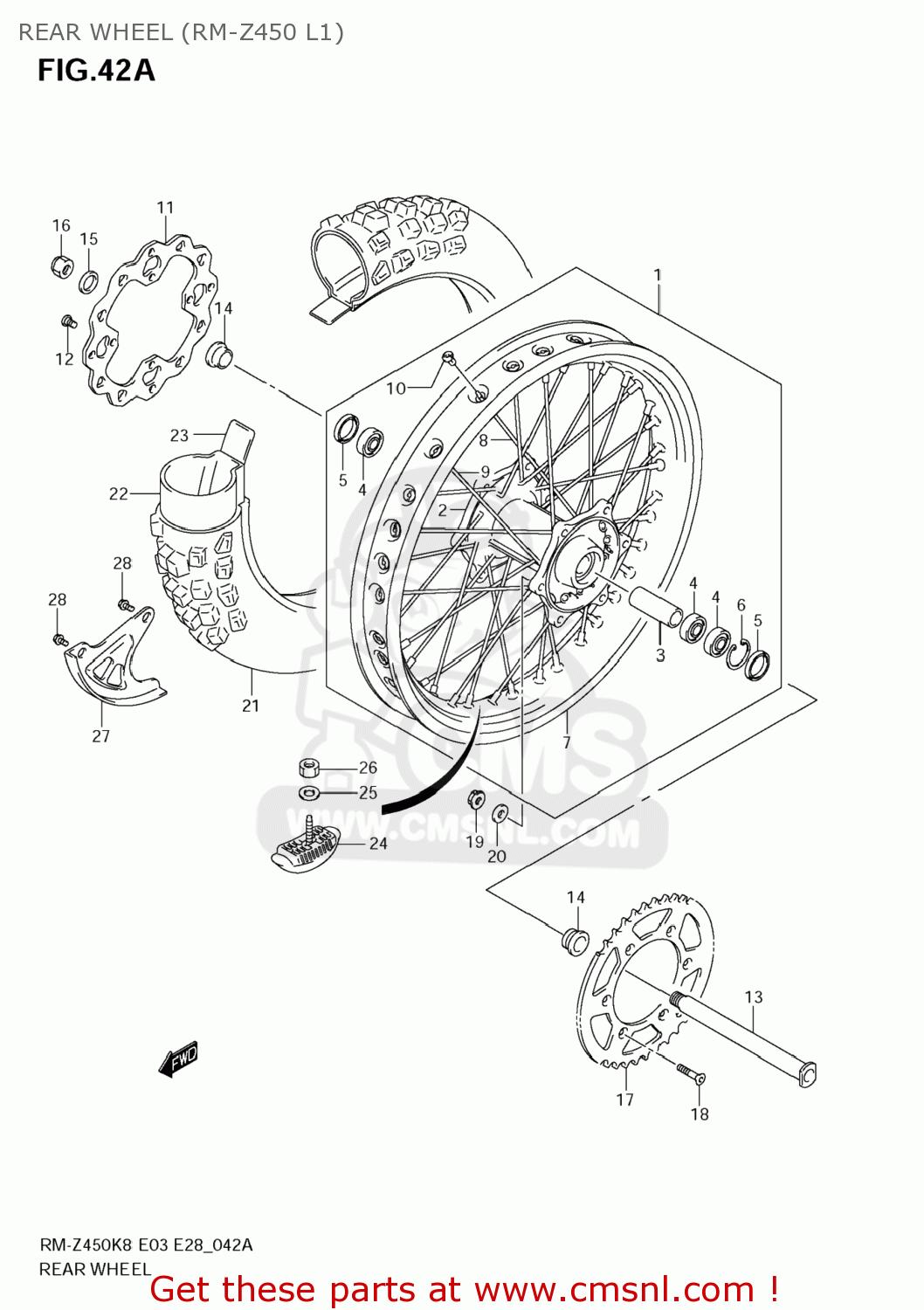

Rear wheel (rm-z450 l1) diagram RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450

REAR WHEEL (RM-Z450 L1) RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450

REAR WHEEL (RM-Z450 L1) RM-Z450 2008 (K8) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

6410028H00
ref: 1

WHEEL ASSY,RR

€ 774.00

2

6411135G20
ref: 2

HUB,RR

€ 261.00

3

6473135G01
ref: 3

SPACER,RR HUB BEARING

€ 26.50

4

0926225139
ref: 4

BEARING(25X42X9)

€ 28.50

5

0928332045
ref: 5

SEAL,OIL(32X43X7)

€ 13.00

6

083314142A
ref: 6

CIRCLIP

€ 1.50

7

6531135G00
ref: 7

RIM,RR WHEEL(19X2.15 AL)(WHT)

€ 334.00

8

6532135G10
ref: 8

SPOKE,RR WHEEL INNER

€ 2.50

9

6532235G10
ref: 9

SPOKE,RR WHEEL OUTER

€ 2.50

10

6532535G10
ref: 10

NIPPLE,RR WHEEL

€ 3.00

11

6921128H10
ref: 11

DISC,RR BRAKE

€ 121.00

12

0913908022
ref: 12

SCREW(8X15)

€ 3.50

13

6471135G10
ref: 13

AXLE,RR

€ 67.50

14

6475135G01
ref: 14

SPACER,RR AXLE

€ 30.00

15

0916022081
ref: 15

WASHER(22X35X2)

€ 2.00

16

0915922007
ref: 16

NUT

€ 20.00

17-1

6451136E00
ref: 17-1

SPROCKET,RR(NT:50)

€ 99.00

17-2

6451137E00
ref: 17-2

SPROCKET,RR(NT:48)

€ 99.00

17-3

6451140261
ref: 17-3

SPROCKET,RR(NT:51 AL)

€ 87.50

17-4

6451128E00
ref: 17-4

SPROCKET,RR(NT:49)

€ 99.00

18

0912008017
ref: 18

BOLT(8X28)

€ 2.00

19

0915908133
ref: 19

NUT

€ 3.50

20

0916008082
ref: 20

WASHER(8.5X16X1.2)

€ 2.00

21

6511028H00
ref: 21

TIRE,RR(110/90 19)

€ 205.00

21

6511028H00
ref: 21

TIRE,RR(110/90 19)

€ 205.00

22

6520035G01
ref: 22

TUBE ASSY,WHEEL INNER

€ 43.00

23

6526135G01
ref: 23

PROTECTOR,WHL INR TUBE

€ 3.50

24

6527028E00
ref: 24

STOPPER,BEAD(2.15)

€ 38.00

25

083220108A
ref: 25

WASHER

€ 2.00

26

083100008A
ref: 26

NUT

€ 2.00

27

6923137F12
ref: 27

COVER,RR DISC

€ 12.50

28

0911606197
ref: 28

BOLT(6X12)

€ 2.50
