FRAME (RM-Z450 L0)

RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

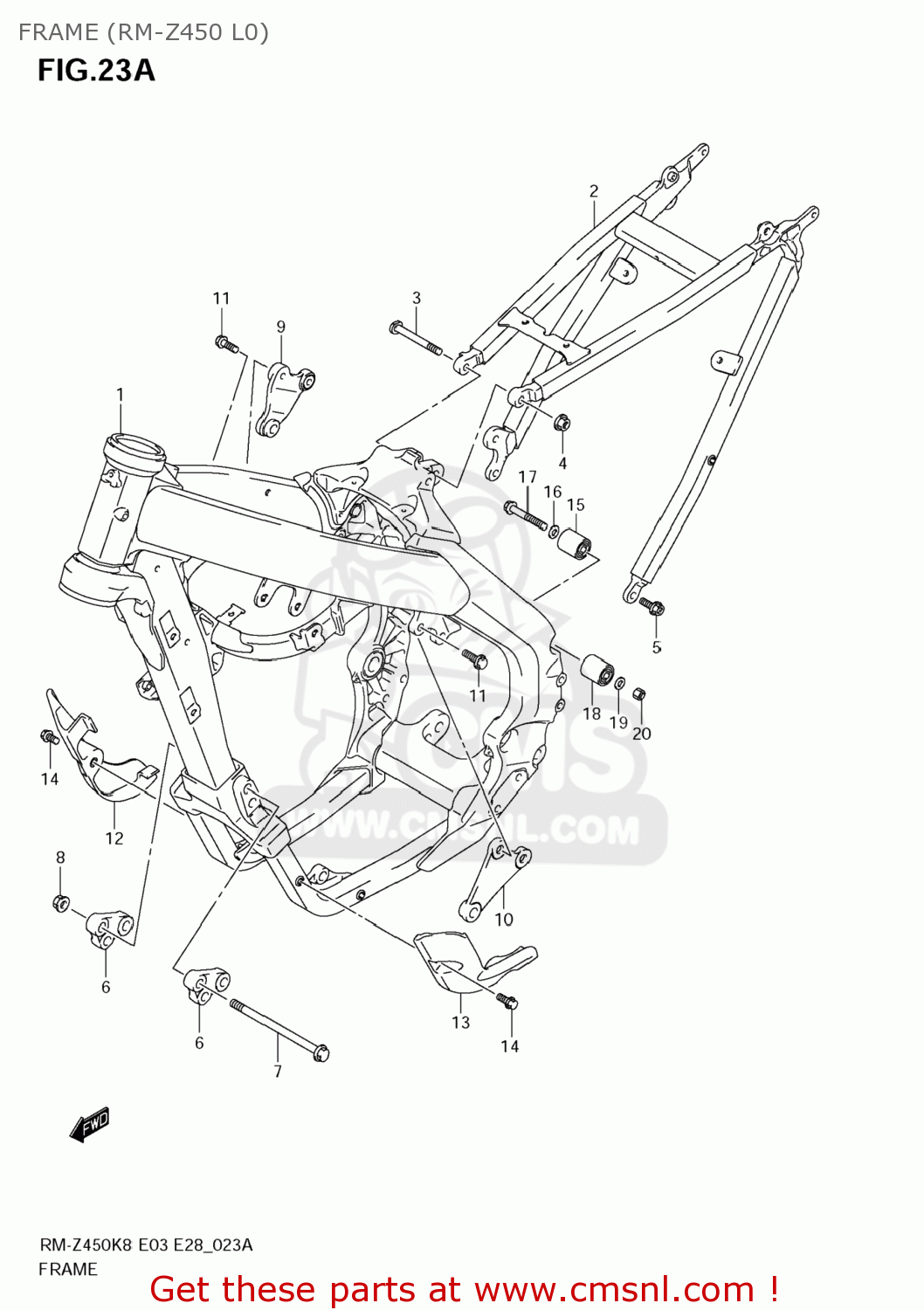

Frame (rm-z450 l0) diagram RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

FRAME (RM-Z450 L0) RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

FRAME (RM-Z450 L0) RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

4110028H10
ref: 1

FRAME

€ 3,380.50

2

4120028H20
ref: 2

RAIL,SEAT

€ 644.50

3

4131128H20
ref: 3

BOLT,SEAT RAIL UPR

€ 12.50

4

083193108A
ref: 4

NUT

€ 2.50

5

0910308506
ref: 5

BOLT(8X23)

€ 3.50

6

4199128H10
ref: 6

BRACKET,ENGINE MOUNTING FR

€ 41.00

7

0910310403
ref: 7

BOLT(10X135)

€ 12.00

8

0915910115
ref: 8

NUT

€ 4.00

9

4199328H00
ref: 9

BRACKET,ENGINE MOUNTING UPR,R

€ 72.50

10

4199428H00
ref: 10

STEUN

€ 69.50

11

0910308404
ref: 11

BOLT(8X21)

€ 3.00

12

4252028H01
ref: 12

PROTECTOR,FR,R

€ 19.00

13

4253028H10
ref: 13

PROTECTOR,FR,L

€ 23.50

14

0911606177
ref: 14

BOLT(6X25)

€ 1.50

15

4391037F00
ref: 15

ROLLER,CHAIN

€ 31.50

16

0918108167
ref: 16

SHIM(8X16X1)

€ 2.00

17

0910308207
ref: 17

BOLT(8X45)

€ 2.00

18

4391035G00
ref: 18

ROLLER,CHAIN

€ 38.00

19

0918108111
ref: 19

SHIM(8X12X1)

€ 2.00

20

083192108A
ref: 20

NUT

€ 1.50
