REAR SWINGING ARM (RM-Z450 L0)

RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

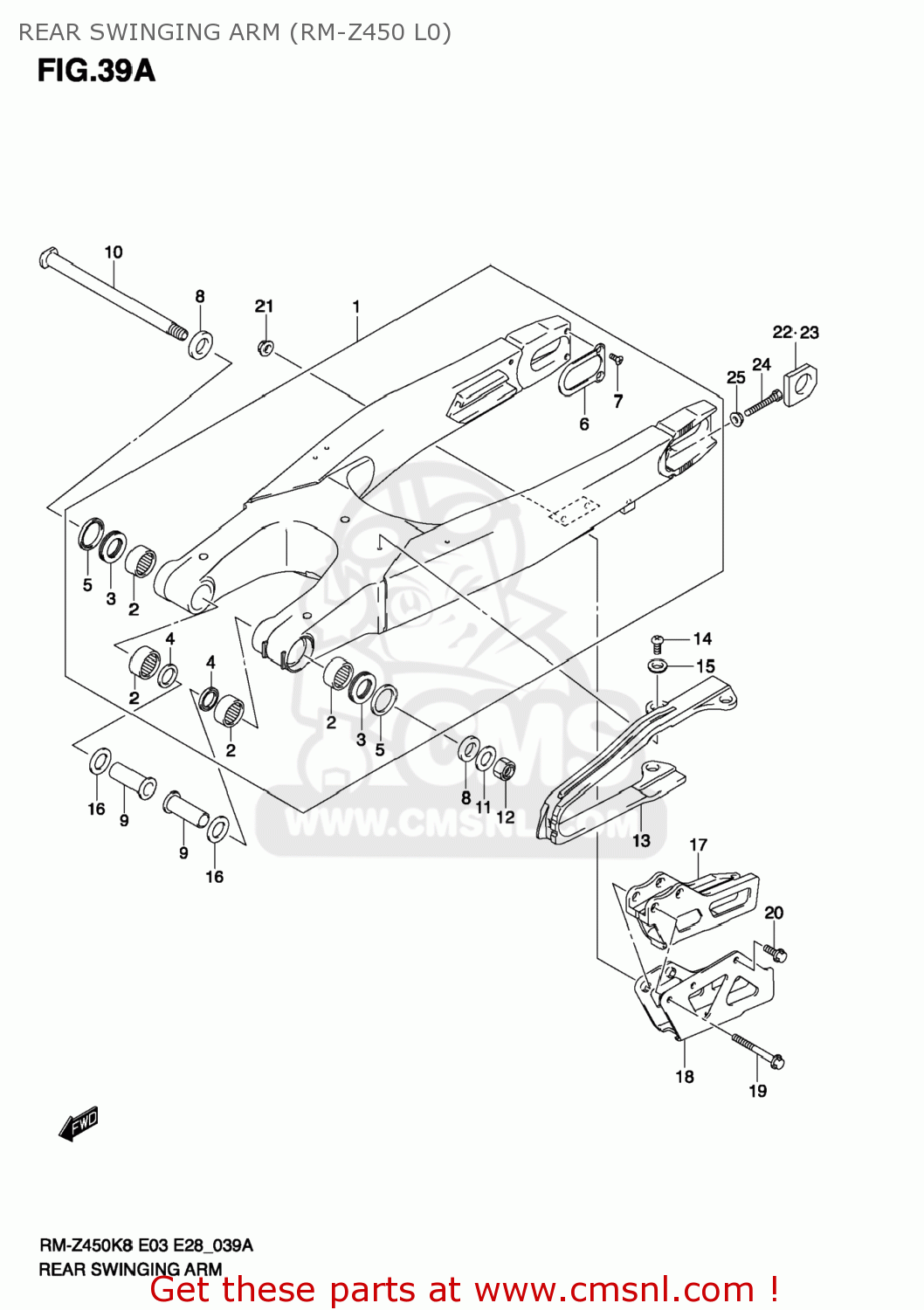

Rear swinging arm (rm-z450 l0) diagram RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

REAR SWINGING ARM (RM-Z450 L0) RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

REAR SWINGING ARM (RM-Z450 L0) RM-Z450 2009 (K9) USA (E03) RMZ450 RM Z450

prices are in EUR

ref

part #

description

quantity

1

6100028H10
ref: 1

SWGARM ASSY,RE

€ 904.00

2

0926322070
ref: 2

BEARING(22X29X15)

€ 16.00

3

0926322064
ref: 3

BEARING(22X35X2)

€ 19.00

4

0928522001
ref: 4

SEAL,OIL(22X29X4)

€ 5.00

5

6126236E00
ref: 5

SEAL,RR SWGARM PIVOT OUTER

€ 3.50

6

6112835G00
ref: 6

PLATE,SWING ARM RR

€ 10.50

7

021220410B
ref: 7

SCREW

€ 2.50

8

6125136E01
ref: 8

SPACER,RR SWGARM PIVOT OUTER

€ 6.00

9

6125237F01
ref: 9

SPACER,SWGARM PIVOT INNER

€ 17.00

10

6121135G00
ref: 10

SHAFT,RR SWINGINGARM PIVOT

€ 33.00

11

083220116B
ref: 11

WASHER

€ 2.00

12

0915916007
ref: 12

NUT

€ 10.50

13

6127335G00
ref: 13
61273-35G10

BUFFER,CHAIN T

€ 37.00

14

021120508B
ref: 14

SCREW

€ 2.00

15

0916905022
ref: 15

WASHER

€ 3.50

16

0821122365
ref: 16

WASHER

€ 3.00

17

6134135G10
ref: 17

GUIDE,CHAIN

€ 57.50

18

6134237F00
ref: 18

PLATE,CHAIN GUIDE

€ 31.00

19

0910306242
ref: 19

BOLT(6X45)

€ 4.00

20

0910306233
ref: 20

BOLT(6X12)

€ 2.00

21

083161006B
ref: 21

NUT

€ 2.50

22

6144528H11
ref: 22

WASHER,CHAIN ADJUSTER,R

€ 22.00

23

6144635G01
ref: 23

WASHER,CHAIN ADJUSTER,L

€ 17.00

24

0910008287
ref: 24

BOLT(8X50)

€ 3.00

25

0915908034
ref: 25

NUT

€ 2.00
