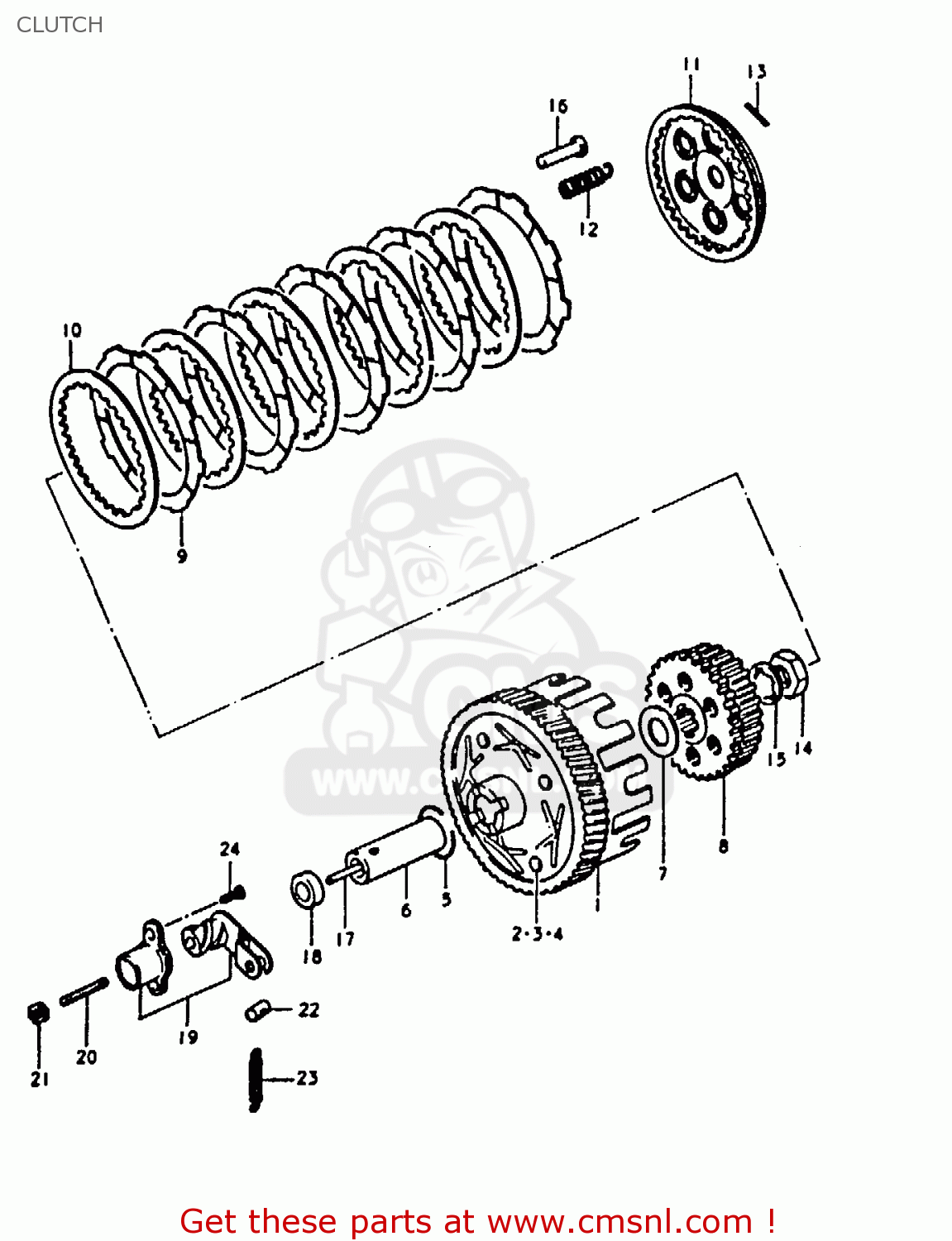

CLUTCH

ref

part #

description

quantity

1-1

2120012001
ref: 1-1
W:7, FROM 21200-1200

GEAR ASSEMBLY,PRIMARY DRIVE

€ 163.50

1-2

2120012003
ref: 1-2
WITH REF.NO.5

GEAR ASSEMBLY,PRIMARY DRIVE

€ 163.50

2-1

2123120040
ref: 2-1
W:9

DAMPER,PRIMARY DRIVEN

€ 0.00

2-2

2123125040
ref: 2-2
W:7

DAMPER,PRIMARY DRIVEN GEAR

€ 3.50

3-1

2124125300
ref: 3-1
FROM 21241-03000

PLATE

€ 10.50

3-2

2124125301
ref: 3-2

PLATE

€ 10.50

4-1

0502205219
ref: 4-1
L:21

RIVET

€ 1.50

4-2

0502205189
ref: 4-2
L:18.5

RIVET

€ 0.50

5

0938030001
ref: 5

SPRING

€ 2.00

7

0821117282
ref: 7
17X28X1.5

WASHER

€ 3.00

8

2141123000
ref: 8

HUB,CLUTCH SLEEVE

€ 39.00

9

2144112000
ref: 9

PLATE,CLUTCH DRIVE (MCA)

€ 12.00

10

2145123000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 6.50

11

2146023000
ref: 11

PLATE,CLUTCH PRESSURE

€ 24.00

12

0944312003
ref: 12

SPRING

€ 3.00

13

0926102001
ref: 13

PIN(2.5X19.8)

€ 1.50

14

0914016001
ref: 14

NUT

€ 4.50

15

0916717002
ref: 15

WASHER,LOCK

€ 2.00

16

2312109210
ref: 16

PIECE,CLUTCH PUSH

€ 9.00

17

2311112000
ref: 17

ROD,CLUTCH PUSH

€ 6.50

18

0928505004
ref: 18

SEAL,OIL(5.5X16X8)

€ 12.00

19

2320005030
ref: 19

SCREW ASSY,CLUTCH RELEASE

€ 25.00

20

0913406001
ref: 20

SCREW

€ 3.00

21

0831022068
ref: 21

NUT 6MM

€ 2.50

22

2322207000
ref: 22

PIECE,RELEASE ARM END

€ 5.00

23

0944308001
ref: 23

SPRING

€ 3.00

24

0212205128
ref: 24

SCREW 5X12

€ 2.50
