CYLINDER - CRANKCASE
A100 1975 (M) UNITED KINGDOM (E02)

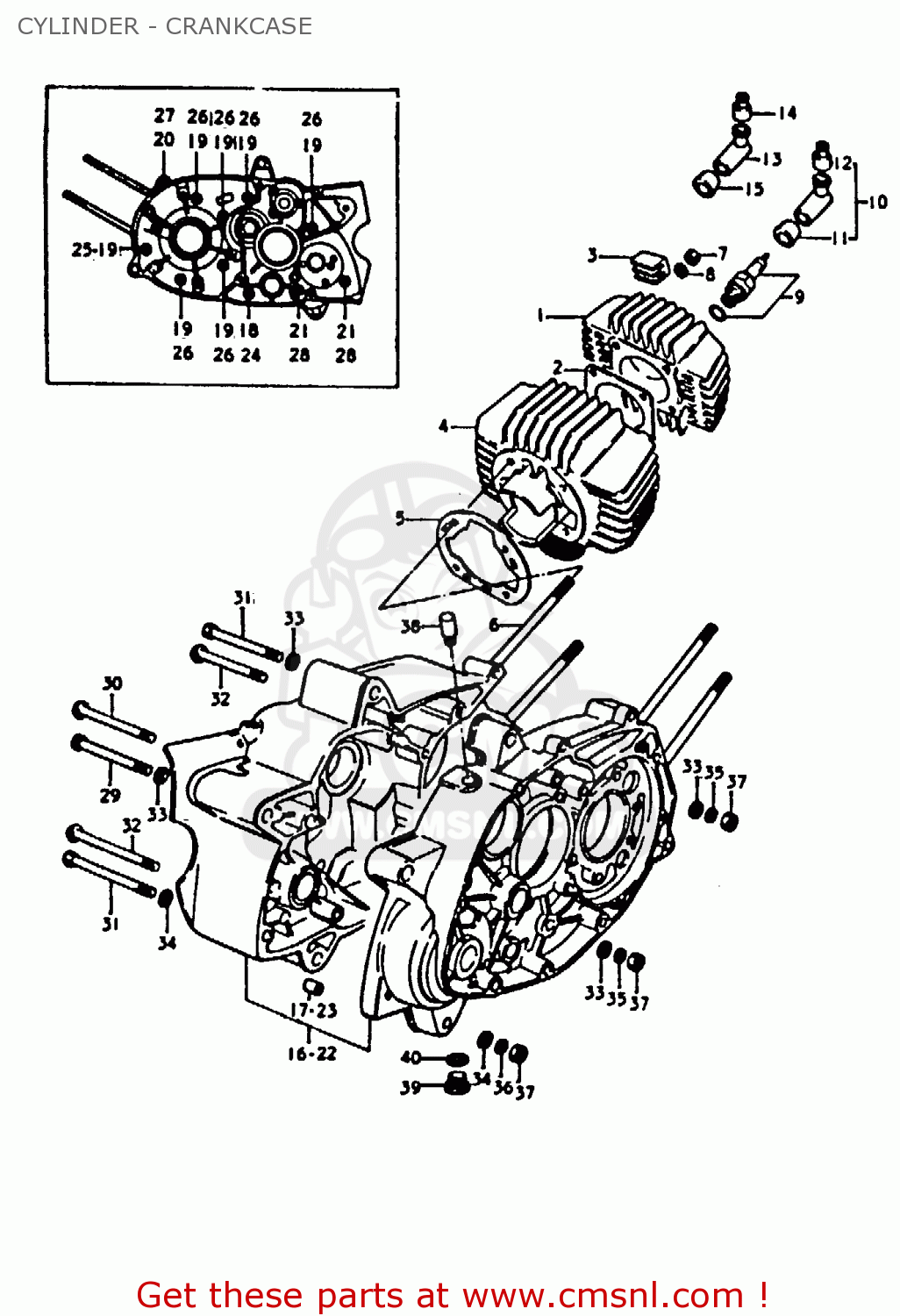

Cylinder - crankcase diagram A100 1975 (M) UNITED KINGDOM (E02)
CYLINDER - CRANKCASE A100 1975 (M) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1
1111112402
ref: 1
FROM 11111-12401
HEAD,CYLINDER
€ 92.00
2
1114112401
ref: 2
FROM 11141-12400
GASKET,CYLINDER HEAD (NAS)
€ 8.00
3-2
1125128000
ref: 3-2
PAD,CYLINDER
€ 5.00
4-1
1121012002
ref: 4-1
CYLINDER
€ 286.00
4-2
1121012611
ref: 4-2
CYLINDER
€ 286.00
5
1124112000
ref: 5
GASKET,CYLINDER (MCA)
€ 5.50
6
0910808006
ref: 6
BOLT,STUD
€ 5.00
7
0914008005
ref: 7
NUT (8MM)
€ 1.50
8
0832121088
ref: 8
LOCK WASHER
€ 2.00
9-1
0948200084
ref: 9-1
NGK, BP6HS
PLUG,SPARK(BP6HS)
€ 4.00
9-2
0948200085
ref: 9-2
ND, W20FP
SPARK PLUG
€ 3.50
9-3
0948200105
ref: 9-3
NGK, BP7HS OPT
PLUG,SPARK(BP7HS)
€ 4.50
10
3350069810
ref: 10
CAP,SPARK PLUG
€ 29.50
11
3354169010
ref: 11
SEAL,SPARK PLUG
€ 5.00
12
3354298000
ref: 12
SEAL,SPARK PLU
€ 4.50
13
3351023310
ref: 13
CAP, SPARK PLUG
€ 15.50
14
3354169010
ref: 14
SEAL,SPARK PLUG
€ 5.00
15
3354223310
ref: 15
SEAL, CORD
€ 3.50
16
1130012853
ref: 16
CRANKCASE SET
€ 2.50
17
0421109129
ref: 17
PIN
€ 2.00
18
0211206608
ref: 18
SCREW 6X60
€ 2.50
19
0211206458
ref: 19
SCREW (6X45)
€ 2.00
20
0211206408
ref: 20
SCREW
€ 2.00
21
0211206358
ref: 21
SCREW (6X35)
€ 2.50
22
1130022880
ref: 22
CRANKCASE SET
€ 0.00
23
0421109129
ref: 23
PIN
€ 2.00
24
0211206557
ref: 24
SCREW
€ 2.50
25
0211206508
ref: 25
SCREW
€ 2.50
26
0211206458
ref: 26
SCREW (6X45)
€ 2.00
27
0211206408
ref: 27
SCREW
€ 2.00
28
0211206358
ref: 28
SCREW (6X35)
€ 2.50
29
0910008024
ref: 29
8X105
BOLT 8X105
€ 4.00
30
0910308023
ref: 30
8X105
BOLT
€ 3.00
31
0910008026
ref: 31
8X110
BOLT 8X110
€ 2.00
32
0910308024
ref: 32
8X110
BOLT
€ 3.00
33
0832211088
ref: 33
WASHER
€ 2.00
34
0832221088
ref: 34
WASHER
€ 2.00
35
0832121088
ref: 35
LOCK WASHER
€ 2.00
36
0832131088
ref: 36
WASHER,LOCK,8.
€ 2.00
37
0831012088
ref: 37
NUT
€ 2.00
39-2
0924710001
ref: 39-2
10THREAD
PLUG
€ 3.00
40-2
0916810002
ref: 40-2
10X14.2X2
GASKET(10X14X3.6) (NAS)
€ 2.00
