FRAME
A100 1975 (M) UNITED KINGDOM (E02)

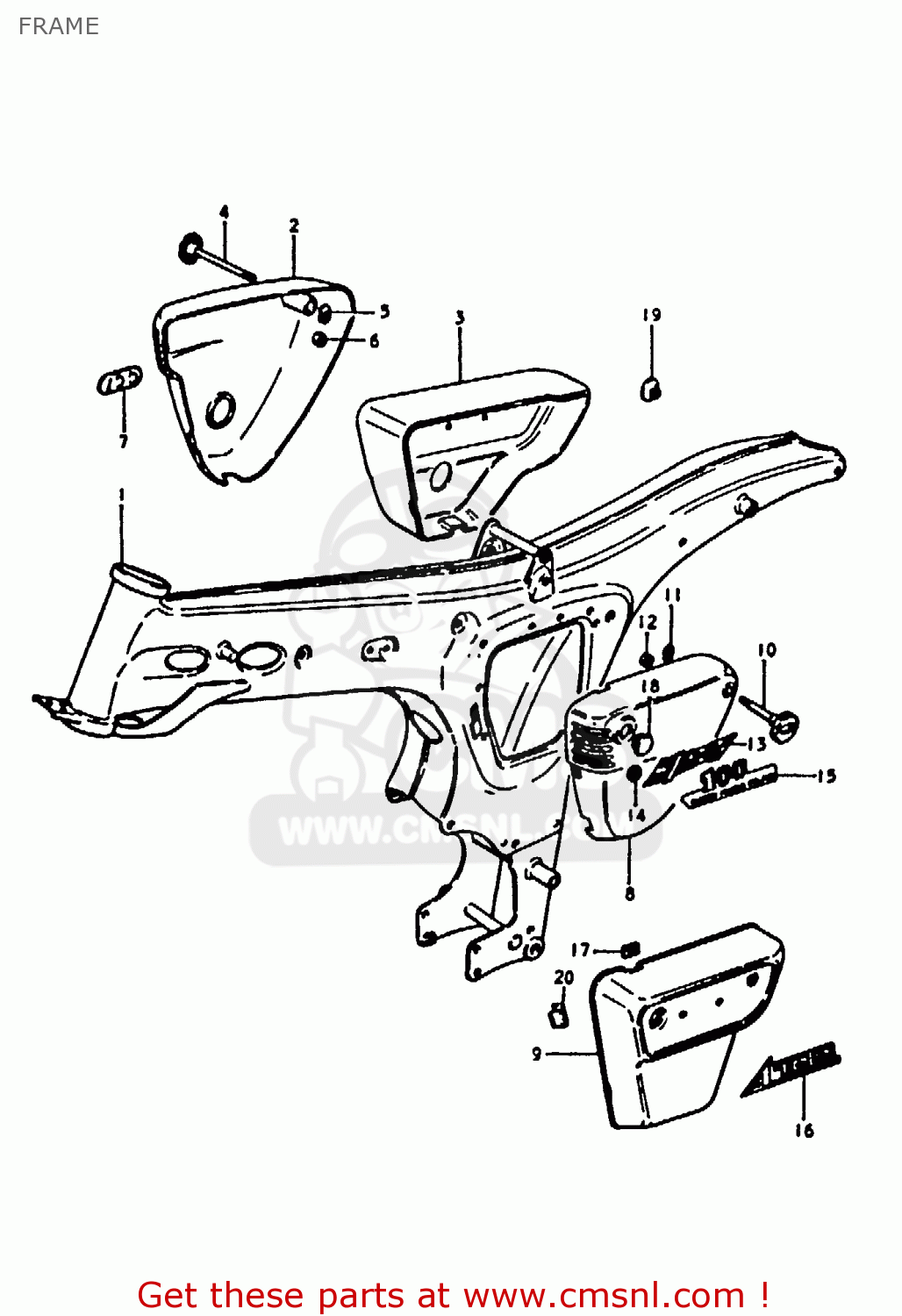

Frame diagram A100 1975 (M) UNITED KINGDOM (E02)
FRAME A100 1975 (M) UNITED KINGDOM (E02)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110022500019
ref: 1-1
FRAME
€ 0.00
1-2
4110023700019
ref: 1-2
FRAME
€ 0.00
3-1
4711123320019
ref: 3-1
COVER, FRAME RH
€ 25.50
3-2
471112332005H
ref: 3-2
COVER, FRAME RH
€ 25.50
3-3
471112332007P
ref: 3-3
COVER, FRAME RH
€ 25.50
4-1
4713003002
ref: 4-1
WITH 08310-22068
KNOB,FRAME COVER,R
€ 5.50
4-2
4723019102
ref: 4-2
KNOB,FRAME COVER
€ 7.50
5
0915206002
ref: 5
NUT
€ 2.00
6
0831022068
ref: 6
NUT 6MM
€ 2.50
7
6817126000
ref: 7
EMBLEM,CCIS
€ 4.00
9-1
4721023311019
ref: 9-1
COVER, FRAME LH
€ 27.00
9-2
472102331105H
ref: 9-2
COVER, FRAME LH
€ 27.00
9-3
472102331107P
ref: 9-3
COVER, FRAME LH
€ 27.00
10-1
4713001002
ref: 10-1
WITH 08310-22068
KNOB,FRAME COVER,L
€ 8.00
10-2
4723003002
ref: 10-2
KNOB,FRAME COVER,L
€ 6.50
11
0915206002
ref: 11
NUT
€ 2.00
12
0831022068
ref: 12
NUT 6MM
€ 2.50
16
6813123310
ref: 16
EMBLEM
€ 26.00
17
0914803002
ref: 17
NUT
€ 3.00
18
4722922500
ref: 18
CAP,FRAME COVER,LEFT
€ 0.00
20
4711723000
ref: 20
CUSHION,FRAME COVER
€ 2.00
