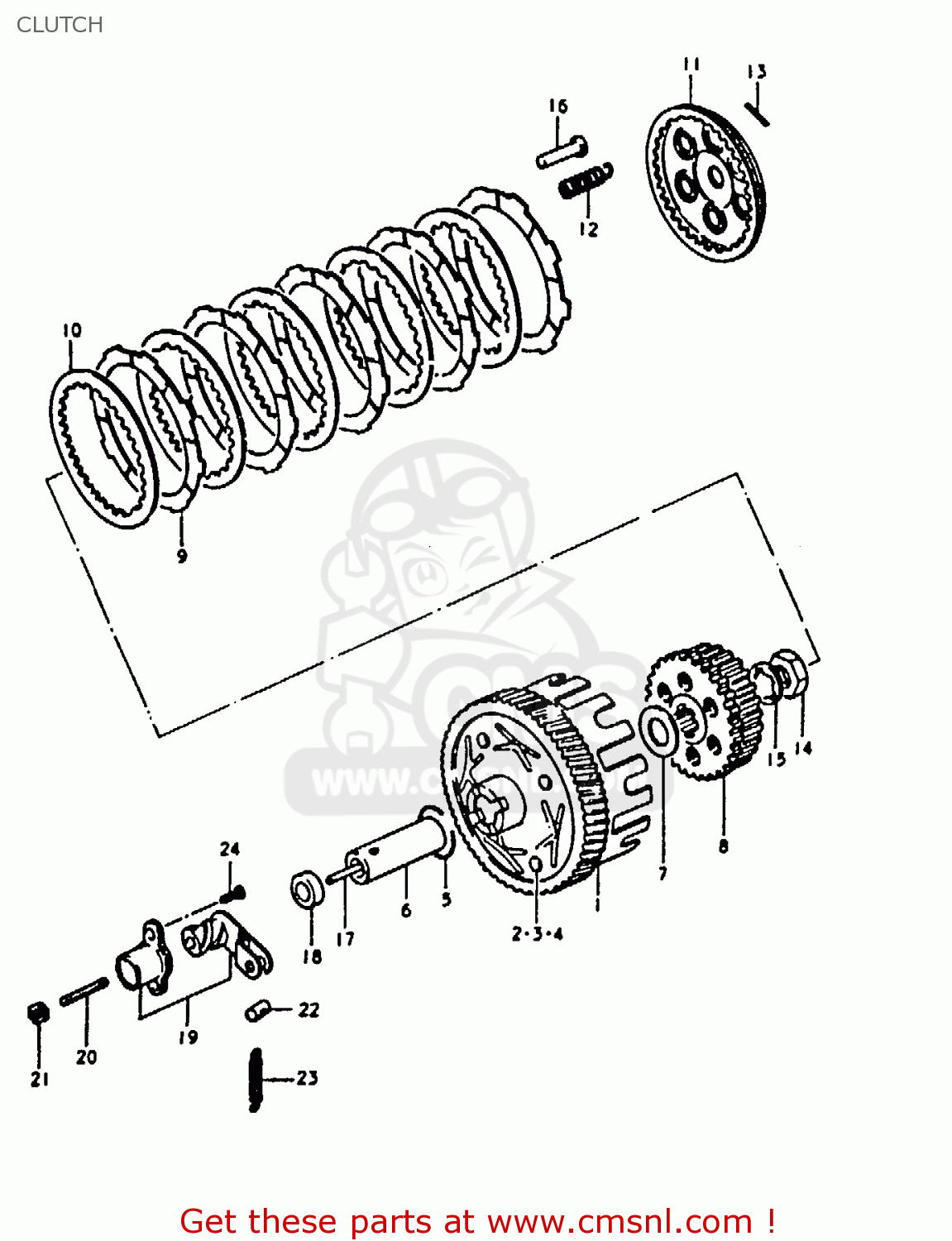

CLUTCH

ref

part #

description

quantity

7

0821117282
ref: 7
17X28X1.5

WASHER

€ 3.00

8

2141123000
ref: 8

HUB,CLUTCH SLEEVE

€ 39.00

9

2144112000
ref: 9

PLATE,CLUTCH DRIVE (MCA)

€ 12.00

10

2145123000
ref: 10

PLATE,CLUTCH DRIVEN (NAS)

€ 6.50

11

2146023000
ref: 11

PLATE,CLUTCH PRESSURE

€ 24.00

12

0944312003
ref: 12

SPRING

€ 3.00

13

0926102001
ref: 13

PIN(2.5X19.8)

€ 1.50

14

0914016001
ref: 14

NUT

€ 4.50

15

0916717002
ref: 15

WASHER,LOCK

€ 2.00

16

2312109210
ref: 16

PIECE,CLUTCH PUSH

€ 9.00

17

2311112000
ref: 17

ROD,CLUTCH PUSH

€ 6.50

18

0928505004
ref: 18

SEAL,OIL(5.5X16X8)

€ 12.00

19

2320005030
ref: 19

SCREW ASSY,CLUTCH RELEASE

€ 25.00

20

0913406001
ref: 20

SCREW

€ 3.00

21

0831022068
ref: 21

NUT 6MM

€ 2.50

22

2322207000
ref: 22

PIECE,RELEASE ARM END

€ 5.00

23

0944308001
ref: 23

SPRING

€ 3.00

24

0212205128
ref: 24

SCREW 5X12

€ 2.50

all assemblies
