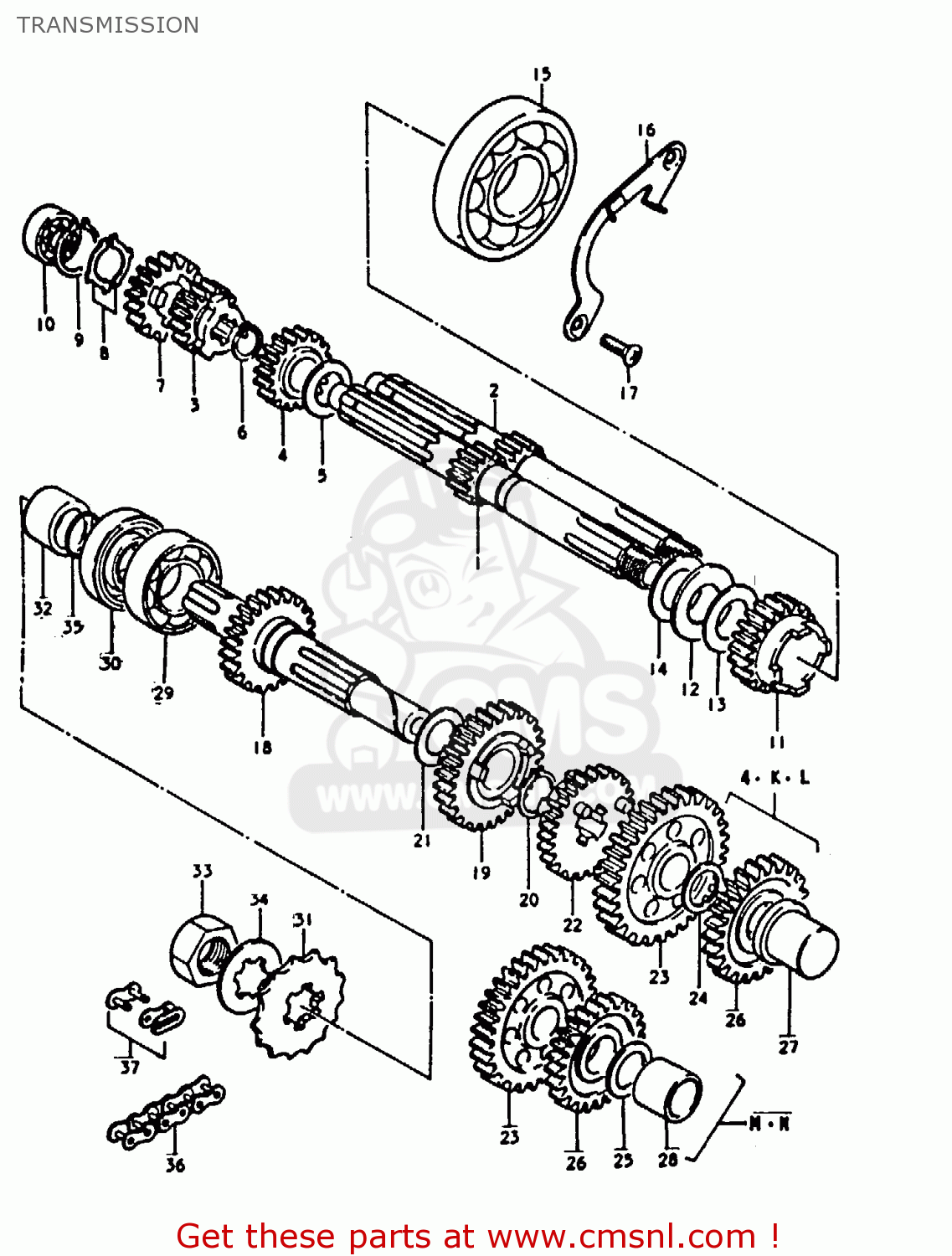

TRANSMISSION

ref

part #

description

quantity

3

2422107000
ref: 3
NT:15

GEAR,SECOND DRIVE

€ 42.00

4

2423107000
ref: 4
NT:18

GEAR,THIRD DRIVE

€ 32.50

5

0821117241
ref: 5
17X24X1

WASHER

€ 2.00

6

0938017001
ref: 6

CIRCLIP

€ 2.00

7

2424107000
ref: 7
NT:20

GEAR,FOURTH DRIVE

€ 44.00

8

0939914001
ref: 8

RING

€ 2.50

9

0938026001
ref: 9

RING,SNAP

€ 2.00

10

0926212001
ref: 10

BEARING(12X28X8)

€ 15.00

15

0926230002
ref: 15

BEARING

€ 30.00

17

0212206108
ref: 17

SCREW

€ 1.50

20

0938020003
ref: 20

CIRCLIP

€ 3.00

23

2431007001
ref: 23
NT:32 FROM 24310-070

GEAR,FIRST DRIVEN

€ 48.50

29

0811362040
ref: 29

Bearing

€ 28.00

30

0928325003
ref: 30

SEAL,OIL(25X40X9)

€ 16.00

31

2751136200
ref: 31
NT:14

SPROCKET,ENGINE

€ 33.00

32

0918020016
ref: 32
20X25X15.5

SPACER(20X25X15.5)

€ 4.00

33

0914020001
ref: 33

NUT

€ 3.50

34

0916720006
ref: 34

WASHER,LOCK

€ 3.00

35

0928020001
ref: 35

O RING(D:1,ID:19.5)

€ 2.00

36

2760008010
ref: 36
#428X108&

CHAIN ASSEMBLY,DRIVE

€ 38.00

37

2762020210
ref: 37

JOINT ASSEMBLY,CHAIN

€ 7.00
