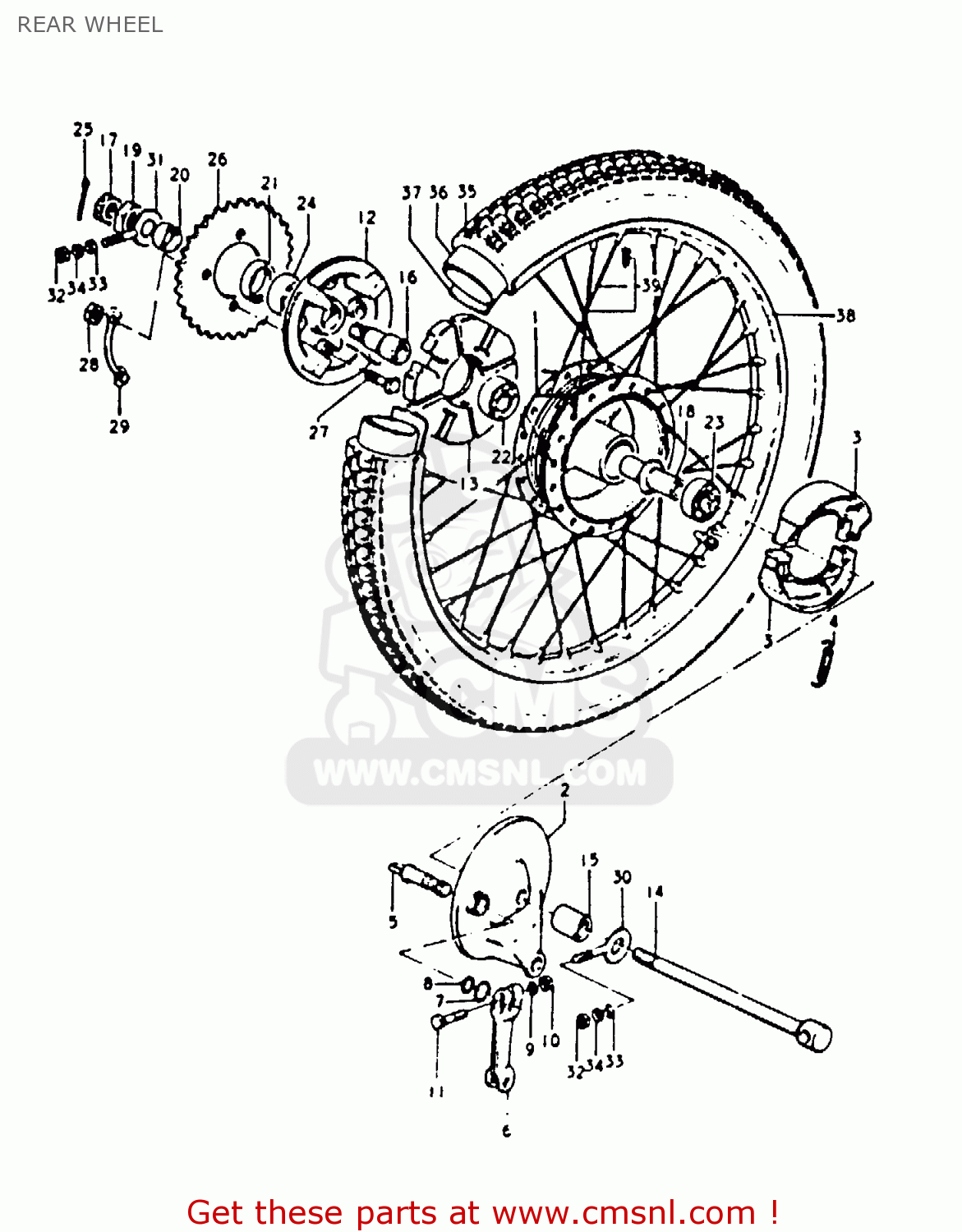

REAR WHEEL

ref

part #

description

quantity

3

5441001005
ref: 3

SHOE,BRAKE

€ 39.00

4

0944307001
ref: 4

SPRING(L:34)

€ 2.50

9

0832221068
ref: 9

WASHER

€ 2.00

10

0831011068
ref: 10

NUT

€ 2.50

12

6461101001
ref: 12
FROM 64611-01000

DRUM,REAR SPROCKET MOUNT

€ 56.50

13

6465101000
ref: 13

CUSHION,REAR DRUM

€ 9.00

14

6471101603
ref: 14

AXLE,REAR

€ 27.00

15

0918012005
ref: 15
12.2X22X30.5

SPACER(12.2X22X30.5)

€ 6.50

16

6476101000
ref: 16

SHAFT,RR SPROCKET DRUM

€ 96.00

17

0831431108
ref: 17

NUT

€ 1.50

19

0914016005
ref: 19

NUT

€ 4.50

20

0918017004
ref: 20
16X23X8

SPACER(17X25X10.5)

€ 4.00

21

0928525001
ref: 21

SEAL OIL(25X40X6)

€ 12.50

25

0411120308
ref: 25

COTTER PIN

€ 1.00

26

6451112760
ref: 26
NT:37

SPROCKET,RR

€ 47.00

27

0910508001
ref: 27

BOLT(8X33.5)

€ 2.50

28

0831012088
ref: 28

NUT

€ 2.00

29

0916908011
ref: 29

WASHER

€ 2.50

30

6141101002
ref: 30
FROM 61411-01602

ADJUSTER,CHAIN,R

€ 6.00

31

6142101002
ref: 31
FROM 61421-01602

PLATE,CHAIN ADJUSTER

€ 6.50

32

0831011068
ref: 32

NUT

€ 2.50

33

0832221068
ref: 33

WASHER

€ 2.00

34

0832121068
ref: 34

LOCK WASHER

€ 2.50

35

6510012110
ref: 35
2.50-18

TIRE, REAR

€ 81.00

36

5520014010
ref: 36
2.50-18

TUBE,INNER

€ 22.00

37

5526114010
ref: 37

PROTECTOR,WHEEL,INNER

€ 3.50

38

5531112120
ref: 38

RIM,WHEEL(1.40X18)

€ 85.00

39

6530012828
ref: 39

SPOKE SET,REAR

€ 26.00

all assemblies
