FRONT DAMPER (MODEL K3/K4/K5/K6)

DL1000 VSTROM 2005 (K5) USA (E03)

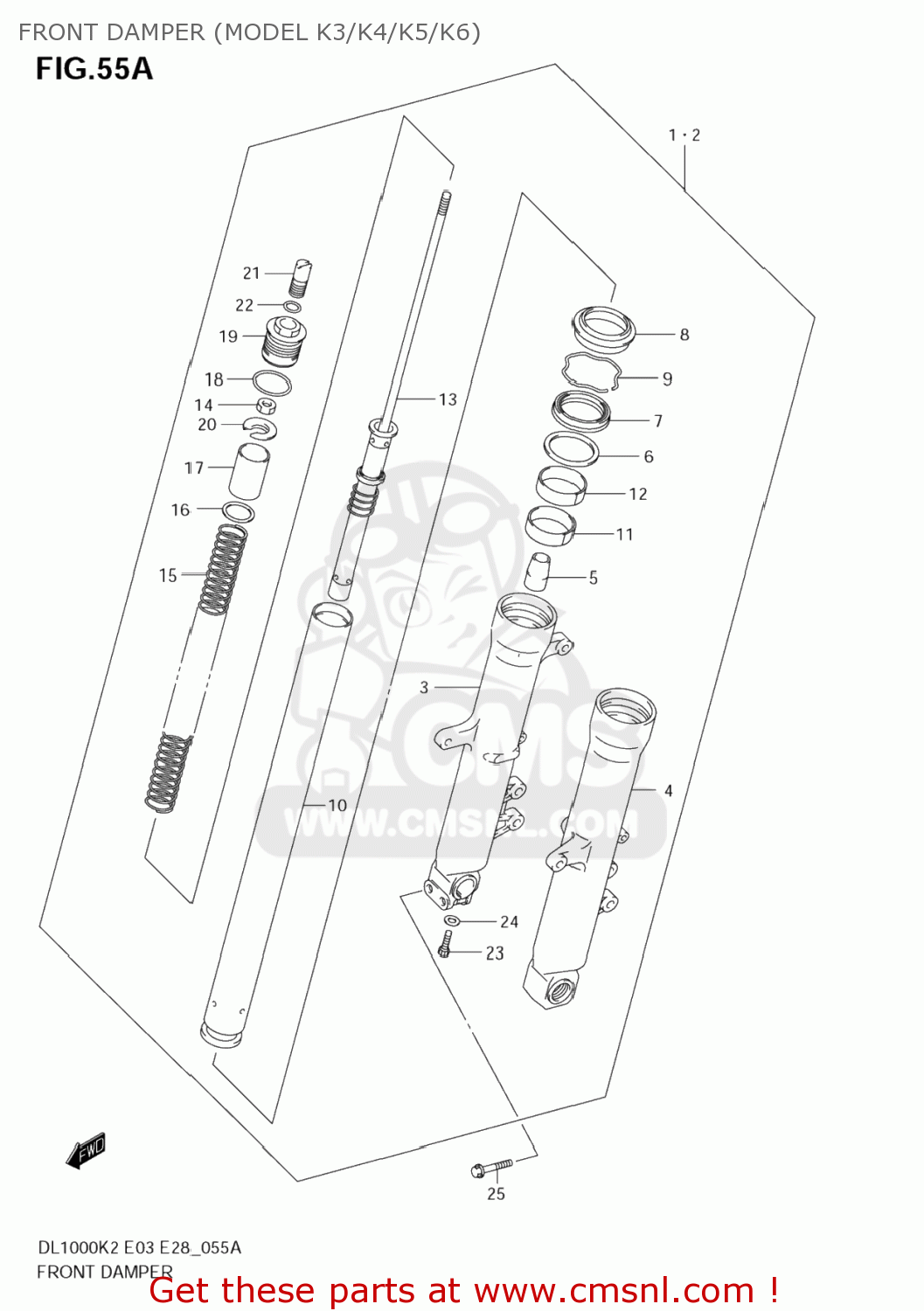

Front damper (model k3/k4/k5/k6) diagram DL1000 VSTROM 2005 (K5) USA (E03)

FRONT DAMPER (MODEL K3/K4/K5/K6) DL1000 VSTROM 2005 (K5) USA (E03)

FRONT DAMPER (MODEL K3/K4/K5/K6) DL1000 VSTROM 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5110306G20
ref: 1

DAMPER ASSY,FR FORK,R

€ 1,014.50

2

5110406G20
ref: 2

DAMPER ASSY,FR FORK,L

€ 1,014.50

3

5113006G00
ref: 3

TUBE,OUTER,R

€ 708.50

4

5114006G00
ref: 4

TUBE,OUTER,L

€ 708.50

5

5119531E00
ref: 5

PIECE,OIL LOCK

€ 25.00

6

5116817C00
ref: 6

SPACER,SEAL

€ 5.00

7

5115314D00
ref: 7

SEAL,OIL

€ 20.50

8

5117329E00
ref: 8

SEAL,DUST

€ 23.00

9

5155638B00
ref: 9

CIRCLIP,FORK OIL SEAL

€ 4.50

10

5111006G20
ref: 10

TUBE,INNER

€ 502.00

11

5112113E00
ref: 11

BUSH,SLIDE

€ 18.00

12

5115213E00
ref: 12

BUSH,GUIDE

€ 23.50

13

5211006G20
ref: 13

ROD,FR DAMPER

€ 513.50

14

5182727E00
ref: 14

NUT

€ 6.50

15

5117106G20
ref: 15

SPRING,FR

€ 96.00

16

5118617C00
ref: 16

SEAT,SPRING LWR

€ 4.50

17

5117612C10
ref: 17

COLLAR,SPRING(32.9X34X50)

€ 11.50

18

5111717C00
ref: 18

O RING

€ 3.50

19

5118914D00
ref: 19

BOLT,FORK

€ 62.50

20

5117217C00
ref: 20

SEAT,SPRING UPR

€ 11.50

21

5118531E00
ref: 21

ADJUSTER,SPRING

€ 62.50

22

0928014011
ref: 22

O RING(D:2.5,ID:13.8)

€ 3.50

23

5114748130
ref: 23

BOLT(8X27)

€ 3.50

24

5114836011
ref: 24

GASKET (NAS)

€ 4.00

25

5116606G00
ref: 25

BOLT

€ 7.50
