TURNSIGNAL LAMP (MODEL K2/K3)

DL1000 VSTROM 2005 (K5) USA (E03)

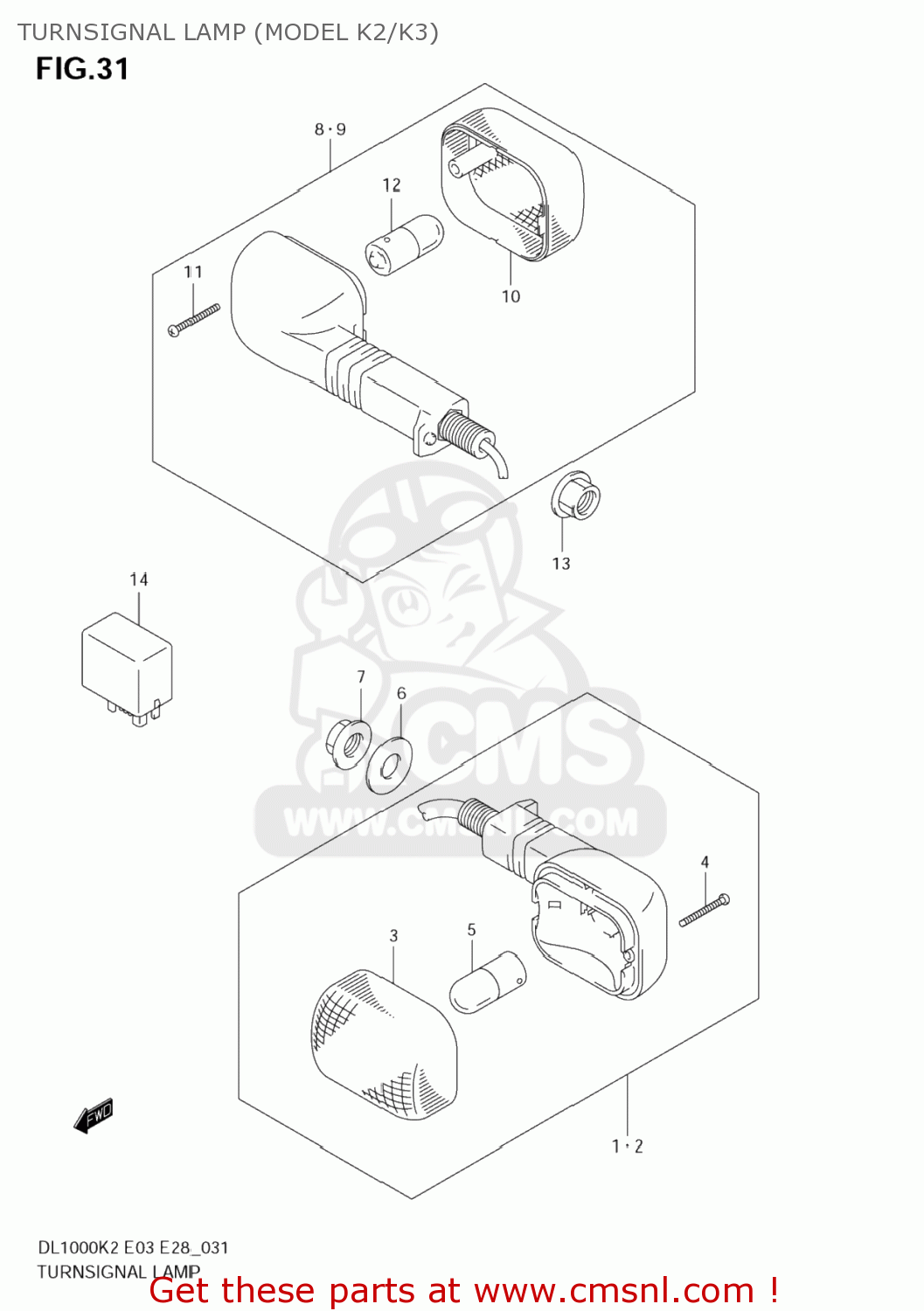

Turnsignal lamp (model k2/k3) diagram DL1000 VSTROM 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

3560106G30
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 33.50

3560206G30
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 0.00

3561206G00
ref: 3

LENS

€ 31.50

3562306G00
ref: 4

SCREW

€ 2.00

0947112177
ref: 5

BULB(12V10W)

€ 7.00

0916012092
ref: 6

WASHER(12.5X30X1.6)

€ 3.00

0831610123
ref: 7
08316-1012A

NUT

€ 2.50

3560106G00
ref: 8

LAMP ASSY,FR TURN SIGNAL,R

€ 86.50

3560206G00
ref: 9

LAMP ASSY,FR TURN SIGNAL,L

€ 86.50

3561206G00
ref: 10

LENS

€ 31.50

3562306G00
ref: 11

SCREW

€ 2.00

0947112177
ref: 12

BULB(12V10W)

€ 7.00

0831610123
ref: 13
08316-1012A

NUT

€ 2.50

3861012FA0
ref: 14

RELAY ASSY,TURNSIGNAL LAMP

€ 114.50
