CARRIER

DL650A VSTROM 2007 (K7) USA (E03)

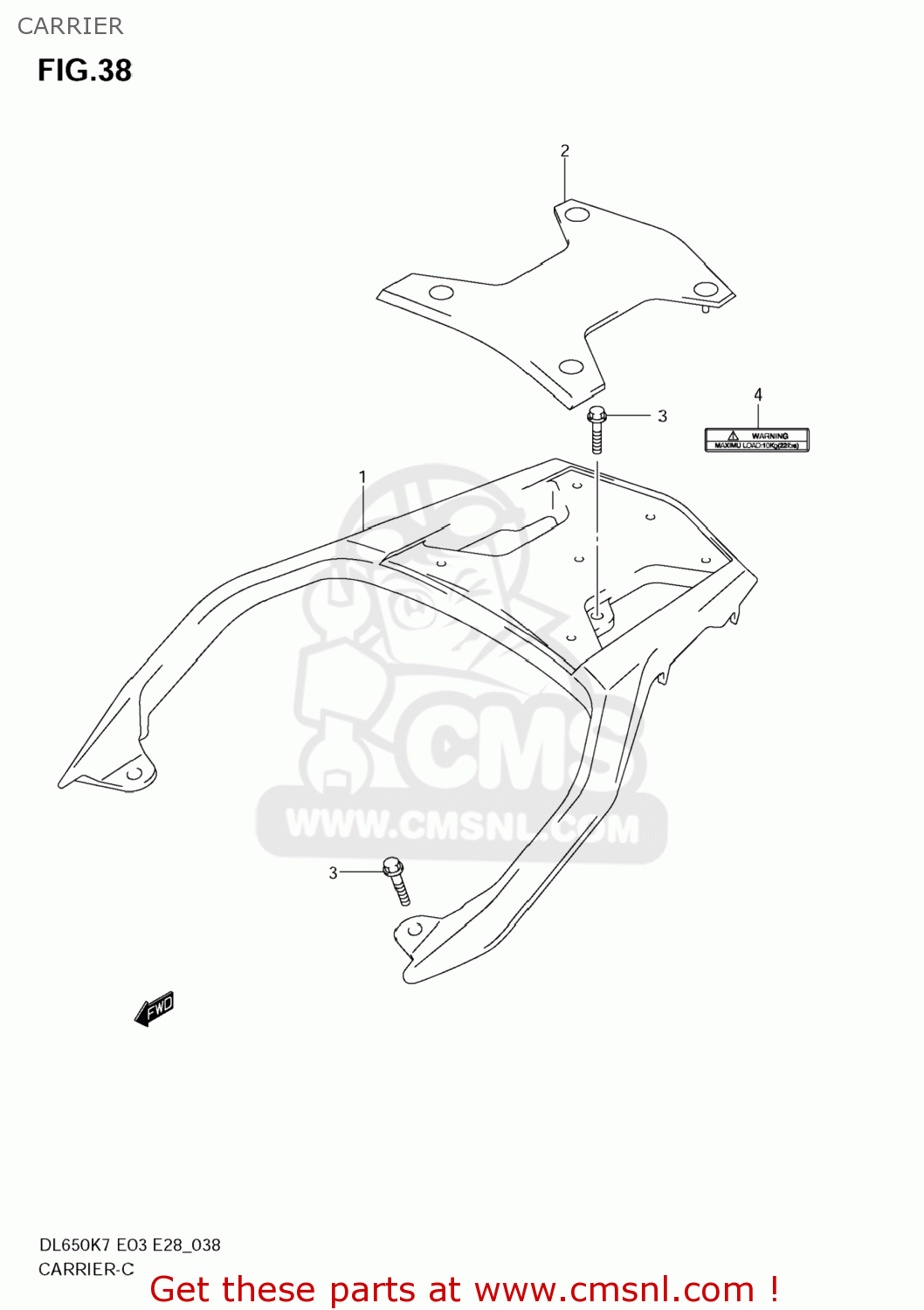

Carrier diagram DL650A VSTROM 2007 (K7) USA (E03)

CARRIER DL650A VSTROM 2007 (K7) USA (E03)

CARRIER DL650A VSTROM 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4631106G00YKV
ref: 1

CARRIER,SPORT

€ 234.00

2

4632106G00
ref: 2

MAT,SPORT CARRIER

€ 24.00

3

0910308391
ref: 3

BOLT(8X35)

€ 3.00

4-1

6839106G00
ref: 4-1

LABEL,WARNING LUGGAGE CARRIER

€ 7.50

4-2

6839106G10
ref: 4-2

LABEL,CARRIER

€ 5.00
