WIRING HARNESS (DL650AK7)

DL650A VSTROM 2007 (K7) USA (E03)

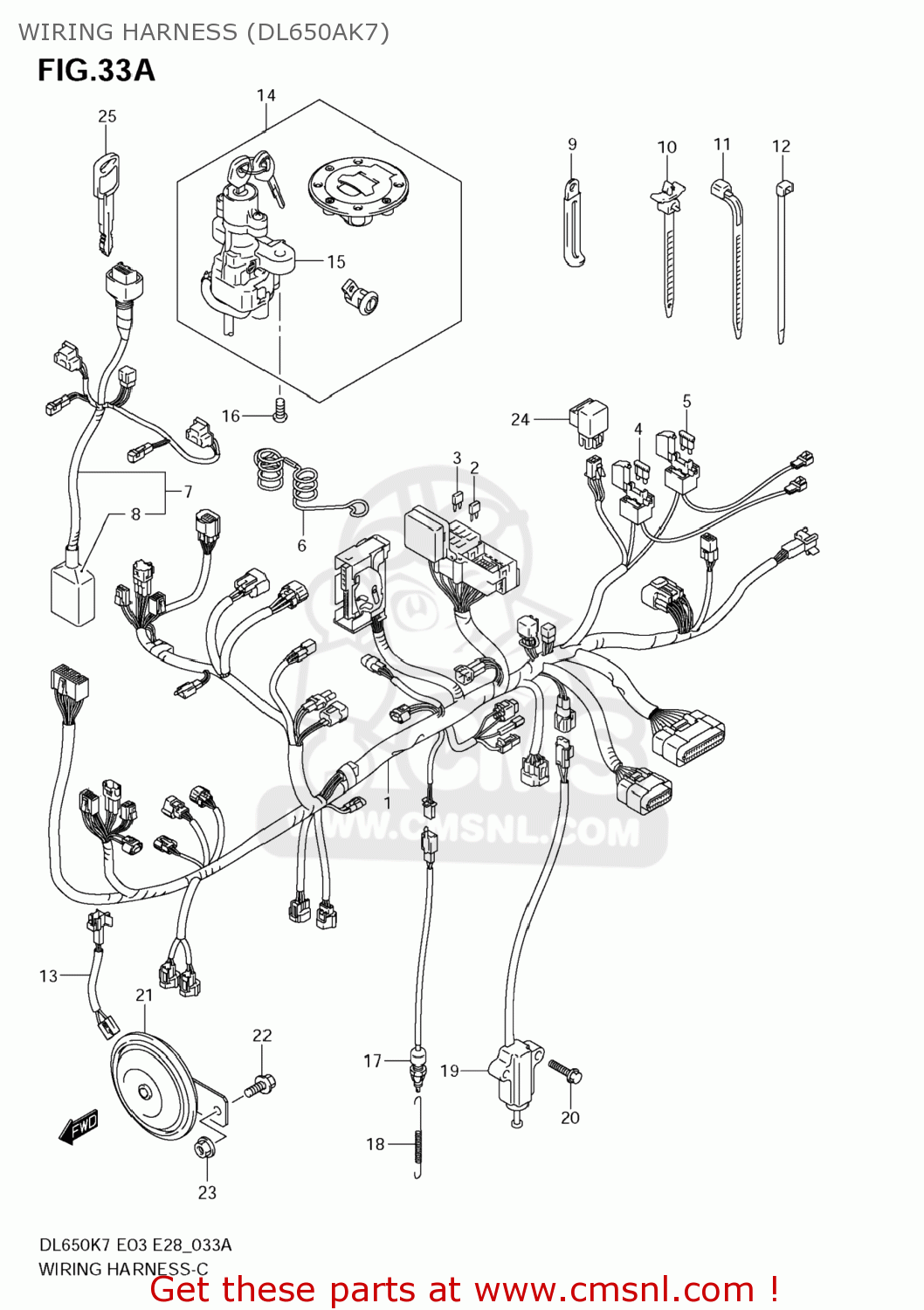

Wiring harness (dl650ak7) diagram DL650A VSTROM 2007 (K7) USA (E03)

WIRING HARNESS (DL650AK7) DL650A VSTROM 2007 (K7) USA (E03)

WIRING HARNESS (DL650AK7) DL650A VSTROM 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661027GD0
ref: 1

HARNESS, WIRING, NO.1

€ 783.00

2

0948110501
ref: 2

FUSE(10A)

€ 3.00

3

0948115501
ref: 3

FUSE(15A)

€ 1.00

4

0948140101
ref: 4

FUSE(40A)

€ 7.50

5

0948125101
ref: 5
09481-25103

FUSE (25A)

€ 2.50

6

3661906G01
ref: 6

GUIDE,WIRING HARNESS

€ 17.50

7

3662027G80
ref: 7

HARNESS,WIRING NO.2

€ 281.50

8

3661818G10
ref: 8

COVER,CONNECTOR

€ 8.00

9-1

0940406429
ref: 9-1

CLAMP(L:45)

€ 2.50

9-2

0940406433
ref: 9-2

CLAMP(L:80)

€ 3.00

10

0940711402
ref: 10

CLAMP(L:90)

€ 2.50

11-1

0940711401
ref: 11-1

CLAMP(L:95)

€ 2.50

11-2

0940714403
ref: 11-2

CLAMP(L:125)

€ 2.50

12

0940714407
ref: 12

CLAMP(L:145)

€ 4.00

13

3685206G00
ref: 13

WIRE,HORN LEAD

€ 16.00

14-1

3700027860
ref: 14-1

LOCK SET

€ 523.00

14-2

3700027870
ref: 14-2

LOCK SET

€ 0.00

15

3710027G00
ref: 15

LOCK ASSY,STEERING

€ 211.00

16

0913908016
ref: 16

BOLT(8X20)

€ 3.50

17

3774045D00
ref: 17
37740-31D00

SWITCH ASSY,STOP LAMP

€ 20.50

18

0944306012
ref: 18

SPRING

€ 3.00

19

3784006G00
ref: 19

SWITCH ASSY,SIDE STAND

€ 67.00

20

0155006163
ref: 20
01550-0616A

BOLT

€ 2.50

21

3850027G00
ref: 21

HORN ASSY

€ 80.00

22

0155008123
ref: 22
01550-0812A

BOLT

€ 3.50

23

083161008A
ref: 23

NUT

€ 2.50

24

3874024X50
ref: 24

RELAY ASSY

€ 37.50

25

3714633E00
ref: 25

KEY,BLANK

€ 13.00
