HANDLE SWITCH

DL650A VSTROM 2007 (K7) USA (E03)

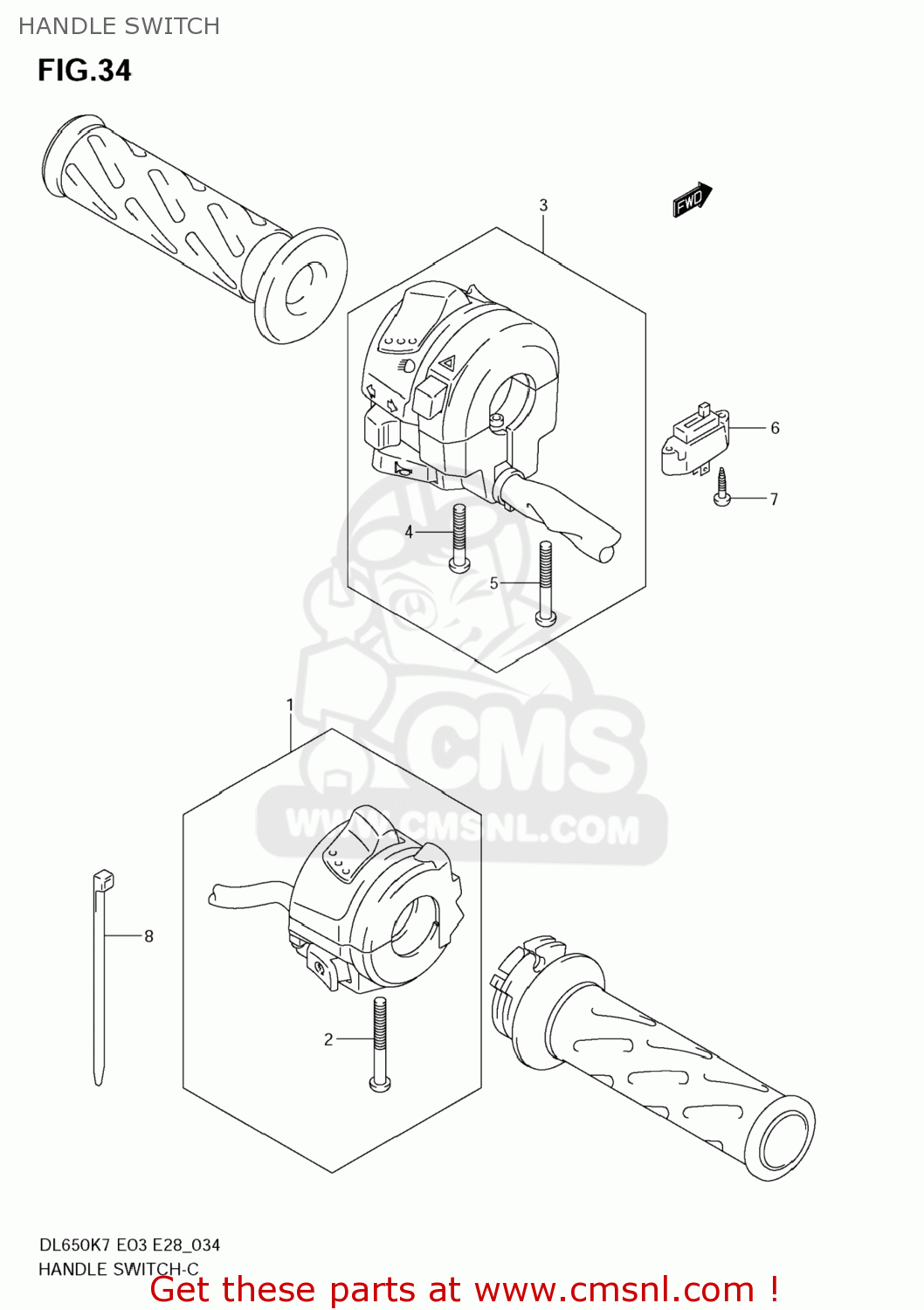

Handle switch diagram DL650A VSTROM 2007 (K7) USA (E03)

HANDLE SWITCH DL650A VSTROM 2007 (K7) USA (E03)

HANDLE SWITCH DL650A VSTROM 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720027GA0
ref: 1

SWITCH ASSY,HANDLE,R

€ 160.50

2

021120530B
ref: 2

SCREW

€ 1.50

3

3740027GA0
ref: 3
37400-27GA1

SWITCH ASSY,HA

€ 244.00

4

021120540B
ref: 4

SCREW

€ 2.00

5

021120525B
ref: 5

SCREW

€ 1.50

6

3756031F00
ref: 6

SWITCH ASSY,CLUTCH

€ 20.00

7

0913203017
ref: 7

SCREW(3X14)

€ 3.00

8

0940714407
ref: 8

CLAMP(L:145)

€ 4.00
