CYLINDER HEAD
DR100 1983 (D) USA (E03)

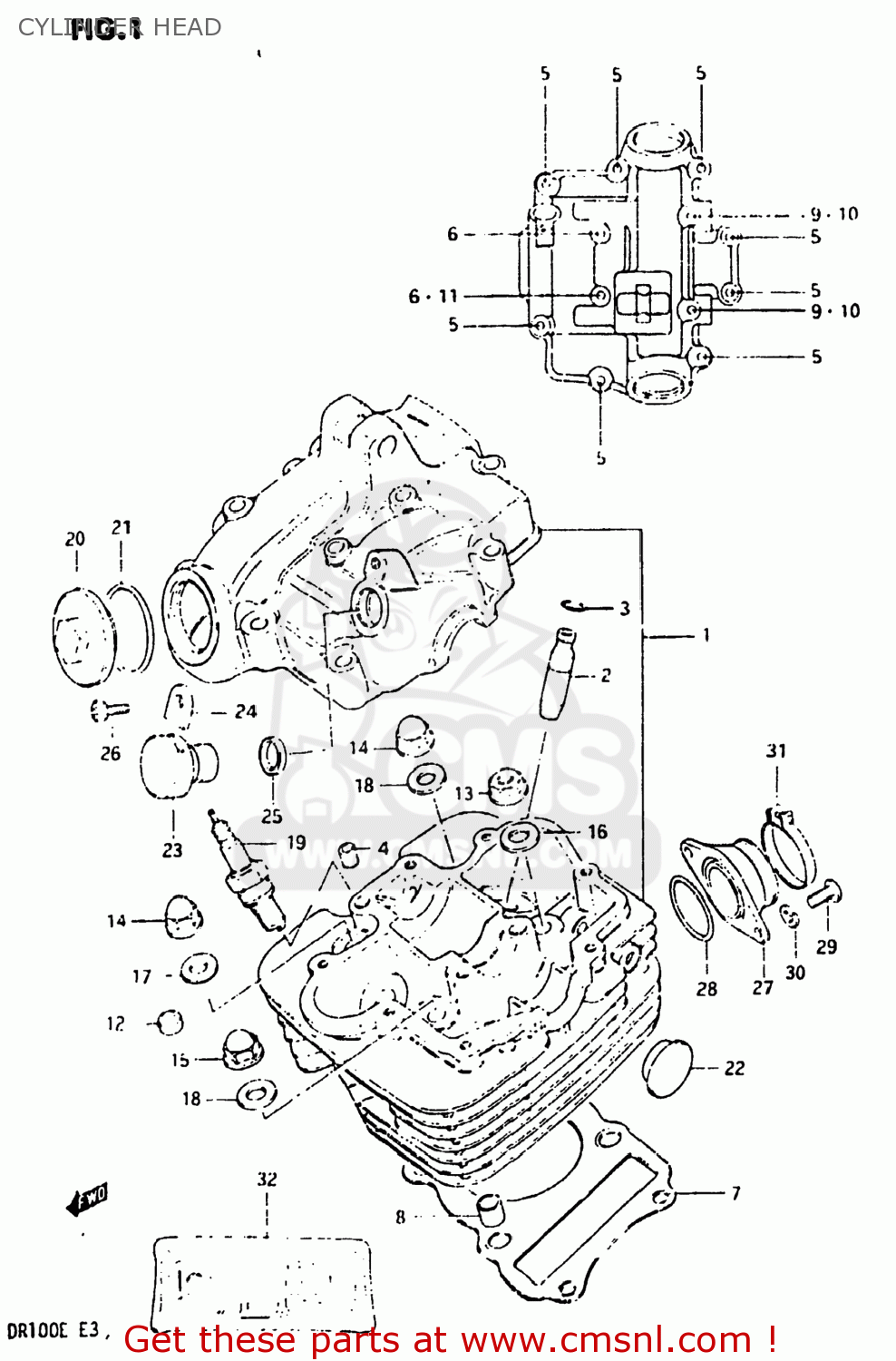

Cylinder head diagram DR100 1983 (D) USA (E03)
CYLINDER HEAD DR100 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110005253
ref: 1
11100-05290
HEAD ASSEMBLY,CYLINDER
€ 198.00
2
1111505270
ref: 2
GUIDE,VALVE
€ 18.50
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0151706355
ref: 5
01550-0635A
BOLT
€ 2.50
6
0151706605
ref: 6
01550-0660A
BOLT ,6X60
€ 2.50
7
1114105210
ref: 7
11141-05202
GASKET,CYLINDER HEAD
€ 7.50
8
0421111169
ref: 8
PIN
€ 2.00
9
0142106255
ref: 9
01421-0625A
STUD 6X25
€ 2.00
10
0831616065
ref: 10
08316-1006B
NUT
€ 2.50
11
0916806015
ref: 11
09168-06023
WASHER
€ 2.00
12
1115145000
ref: 12
PAD,CYLINDER HEAD
€ 3.00
13
0915908031
ref: 13
09159-08034
NUT
€ 2.00
14
0915908035
ref: 14
09159-08029
NUT (8MM)
€ 6.00
15
0915908029
ref: 15
NUT
€ 6.00
16
0916008039
ref: 16
WASHER(8.5X19X2.3)
€ 2.00
17
0916008053
ref: 17
09160-08039
WASHER (8.5X19X2.3)
€ 2.00
18
0916808012
ref: 18
09168-08013
GASKET (NAS)
€ 4.50
19-1
0948200144
ref: 19-1
SPARK PLUG D8EA
€ 3.50
19-2
0948200145
ref: 19-2
09482-00223
SPARK PLUG X24ES-U
€ 3.50
19-3
0948200275
ref: 19-3
09482-00144
SPARK PLUG A6YC
€ 3.50
20
1117532400
ref: 20
11175-42A00
CAP,INSPECTION
€ 9.50
21
0928030001
ref: 21
O RING(D:3,ID:29.5)
€ 2.00
22
0924122002
ref: 22
PLUG(OD:22.5)
€ 5.50
23
2644245000
ref: 23
PLUG,TACH GEAR SLEEVE HOLE
€ 15.50
24
2644933000
ref: 24
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
25
2645145000A
ref: 25
SEAL,TACHOMETER DRIVEN
€ 4.50
26
0912805101
ref: 26
SCREW(5X12)
€ 1.50
27
1311005210
ref: 27
13110-05200
PIPE,INTAKE
€ 29.00
28
0928032006
ref: 28
O RING(D:2.4,ID:31.7)
€ 2.50
29
0211206165
ref: 29
02112-0616A
SCREW
€ 2.00
30
0832121065
ref: 30
08321-0106A
LOCK WASHER
€ 2.00
31
0940240305
ref: 31
09402-40303
CLAMP
€ 4.00
32
1140005870
ref: 32
11400-05875
GASKET SET
€ 30.50
