TAIL LAMP
DR100 1983 (D) USA (E03)

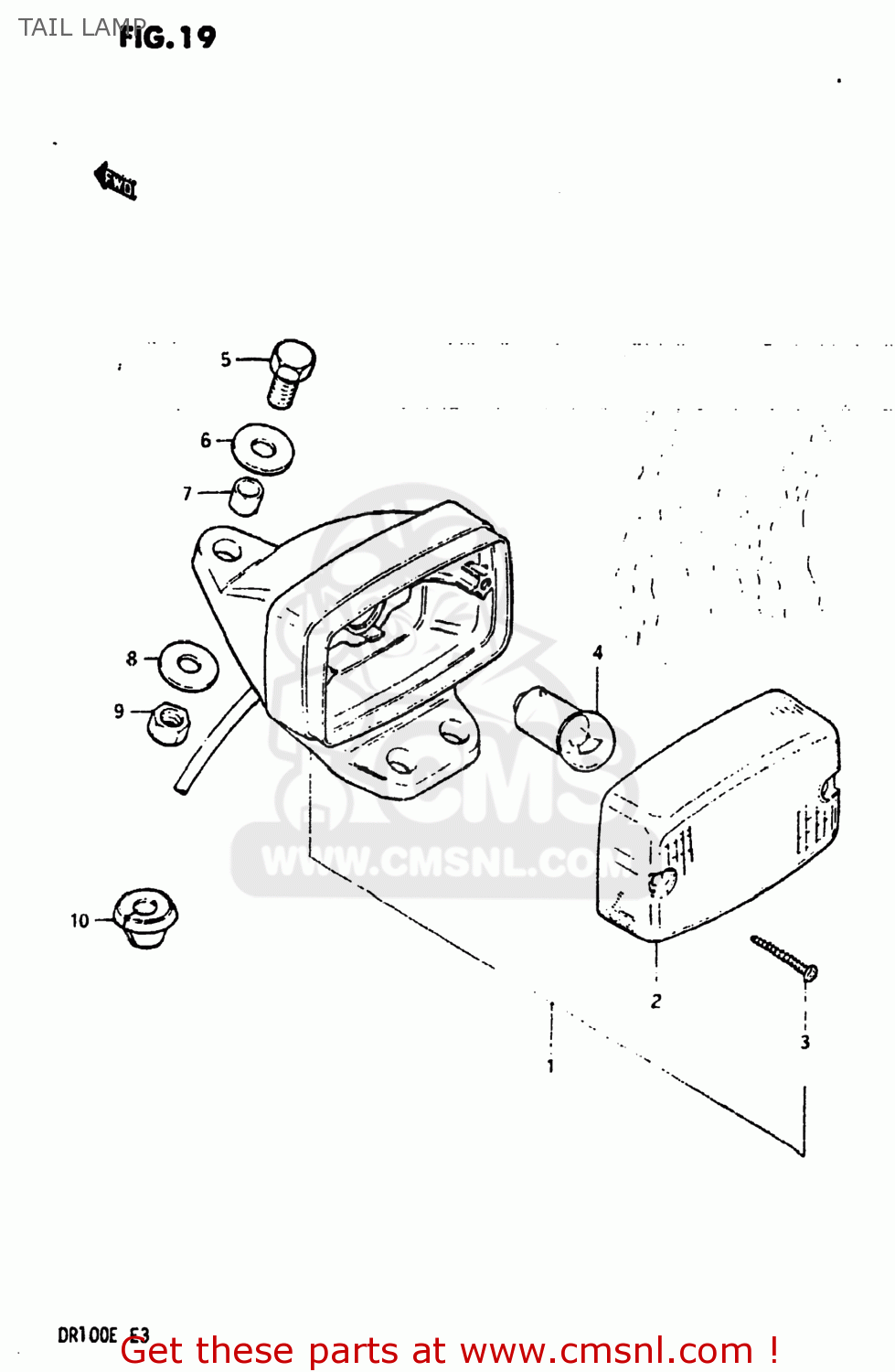

Tail lamp diagram DR100 1983 (D) USA (E03)
TAIL LAMP DR100 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571003431
ref: 1
LAMP ASSY,TAIL
€ 70.00
2
3571230410
ref: 2
LENS
€ 15.50
3
3562335300
ref: 3
SCREW
€ 2.00
4
0947106049
ref: 4
BULB(6V5W,TOKAI DENSO)
€ 3.50
5
0110706205
ref: 5
01500-0620A
BOLT
€ 2.00
6
0916006038
ref: 6
09160-06077
WASHER
€ 2.00
7
0918006038
ref: 7
SPACER(6.1X9X7.5)
€ 2.00
8
0916006060
ref: 8
09160-06077
WASHER
€ 2.00
9
0831011066
ref: 9
08310-0006A
NUT
€ 2.00
10
0930807004
ref: 10
GROMMET
€ 2.50
