REAR WHEEL
DR100 1983 (D) USA (E03)

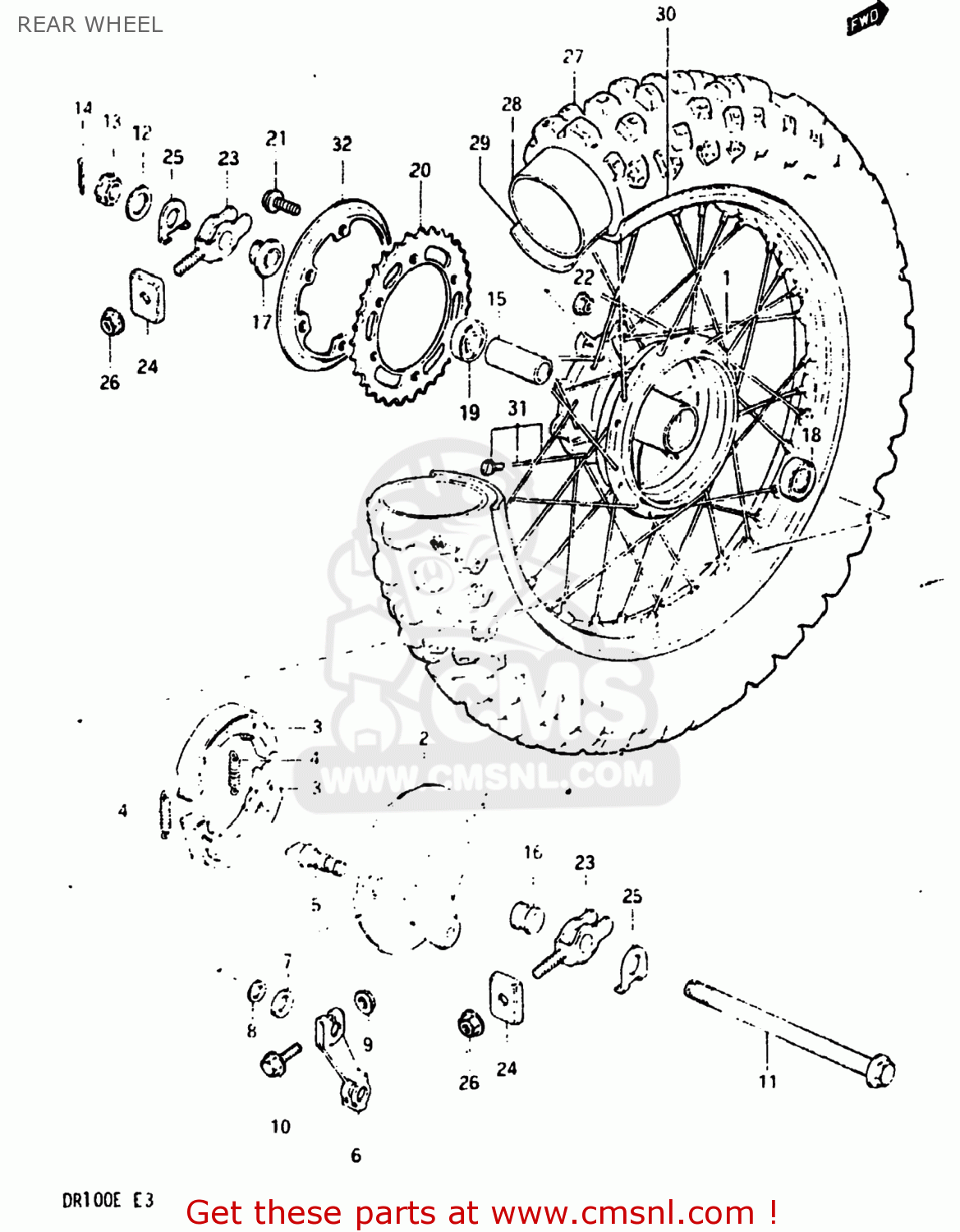

Rear wheel diagram DR100 1983 (D) USA (E03)
REAR WHEEL DR100 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411048700
ref: 1
HUB,RR WHEEL
€ 202.50
2-1
6421048700
ref: 2-1
64210-48701
PANEL,REAR HUB
€ 40.50
2-2
6421048701
ref: 2-2
PANEL,ANCHOR
€ 40.50
3
5441043010
ref: 3
54400-43880
SHOE,BRAKE
€ 19.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
5-1
5444129303
ref: 5-1
54441-29305
CAM,FRONT BRAKE
€ 13.00
5-2
5444129304
ref: 5-2
54441-29305
CAM,FRONT BRAKE
€ 13.00
6
6445105200
ref: 6
LEVER,RR BRAKE CAM
€ 0.00
7
0916014001
ref: 7
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
8
0928014003
ref: 8
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
9
0915906017
ref: 9
08319-31067
NUT
€ 2.50
10
0151706358
ref: 10
01550-06357
BOLT 6X35
€ 2.50
11
6471105210
ref: 11
AXLE,REAR
€ 0.00
12
0832221148
ref: 12
08322-01147
WASHER
€ 2.00
13
0914114001
ref: 13
NUT
€ 4.50
14
0411130308
ref: 14
04111-3030A
COTTER PIN
€ 1.50
15
0918015062
ref: 15
SPACER(15.3X21.7X97)
€ 11.00
16
6475148700
ref: 16
64751-48701
SPACER,REAR AXLE
€ 9.00
17
6475048700
ref: 17
64750-48701
SPACER,REAR AXLE
€ 9.50
18
0814362027
ref: 18
BEARING
€ 12.50
19
0812363027
ref: 19
BEARING
€ 19.00
20
6451148730
ref: 20
SPROCKET,RR(42T)
€ 30.00
21
0910308107
ref: 21
BOLT(8X33)
€ 2.50
22
0831931088
ref: 22
08319-3108A
NUT
€ 2.50
23
6141005250
ref: 23
ADJUSTER,CHAIN
€ 9.50
24
6142126501
ref: 24
61421-26502
ADJUSTER,CHAIN
€ 4.00
25
6471205250
ref: 25
64712-36A10
WASHER,CHAIN ADJUSTER
€ 3.50
26
0831931088
ref: 26
08319-3108A
NUT
€ 2.50
27
6510020520
ref: 27
TIRE 4.10-14
€ 0.00
28
6520020300
ref: 28
65200-02B40
TUBE ASSEMBLY,WHEEL,INNER
€ 26.00
29
5526124010
ref: 29
PROTECTOR,INNER TUBE
€ 9.50
30-1
6531105240
ref: 30-1
65311-05991
RIM,REAR WHEEL
€ 60.00
30-2
6531105991
ref: 30-2
RIM,REAR WHEEL 1.60X14)
€ 60.00
31
6532005240
ref: 31
SPOKE ASSY,RR WHEEL
€ 55.50
32
6451905200
ref: 32
PLATE,CHAIN SIDE
€ 8.00
