CARBURETOR
DR125 1988 (J) USA (E03)

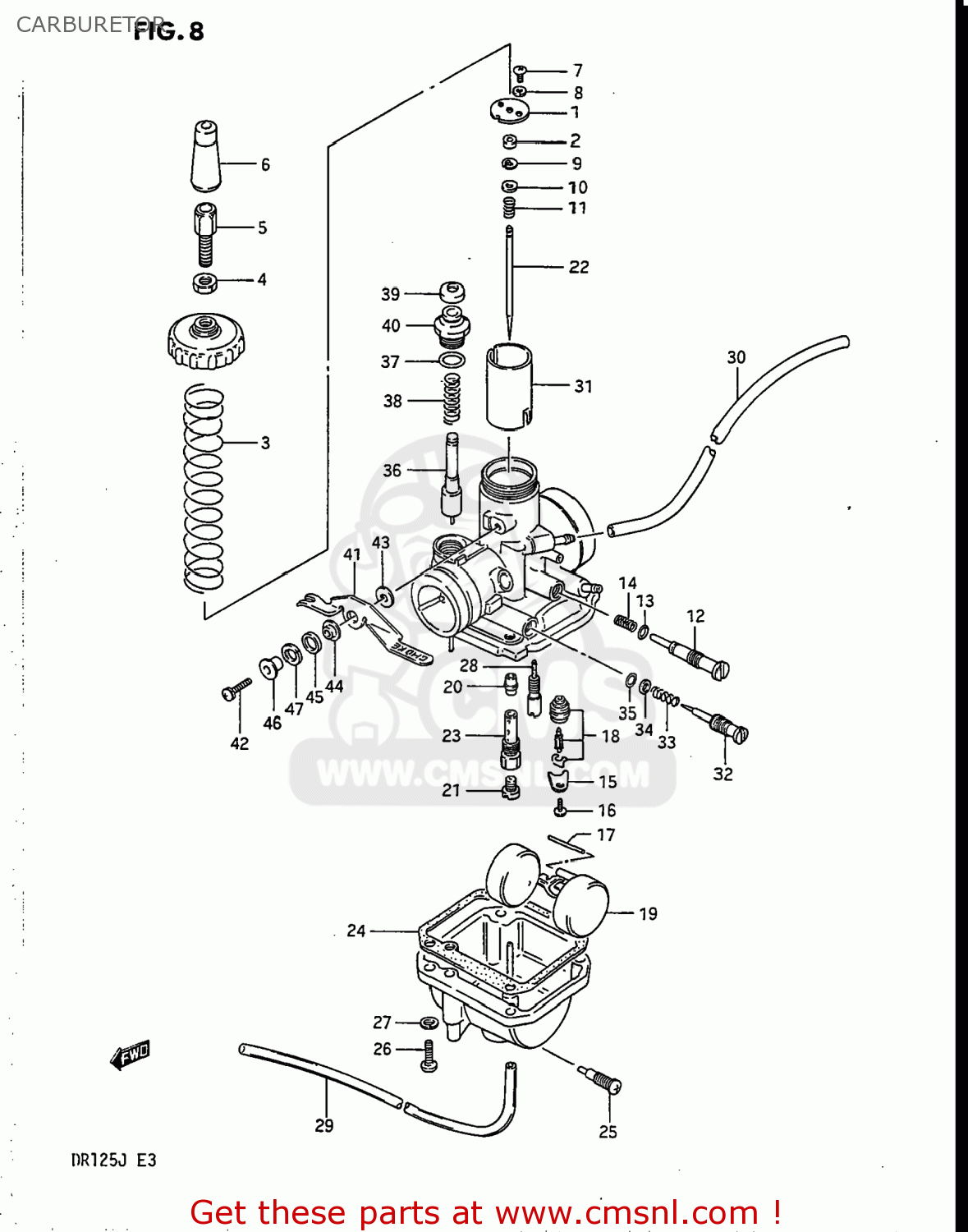

Carburetor diagram DR125 1988 (J) USA (E03)
CARBURETOR DR125 1988 (J) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320044A20
ref:
CARBURETOR ASSY (VM24)
€ 215.50
1
1337344A00
ref: 1
PLATE
€ 7.50
2
1338747010
ref: 2
RING
€ 7.50
3
1357305320
ref: 3
SPRING
€ 3.50
4
1366116600
ref: 4
NUT
€ 5.00
5
1357748110
ref: 5
ADJUSTER,CABLE
€ 8.00
6
1368116600
ref: 6
CAP,RUBBER
€ 7.00
7
0211203086
ref: 7
02112-0308A
SCREW
€ 1.50
8
0832121036
ref: 8
08321-2103B
LOCK WASHER
€ 1.50
9
1339410010
ref: 9
CLIP
€ 4.50
10
1338247010
ref: 10
WASHER,JET NEEDLE
€ 3.00
11
1338847010
ref: 11
SPRING
€ 7.00
12
1326736600
ref: 12
SCREW,THROTTLE STOP
€ 8.50
13
1329533010
ref: 13
O RING
€ 4.50
14
1326835010
ref: 14
SPRING
€ 3.00
15
1337346710
ref: 15
PLATE,NEEDLE VALVE FITING
€ 4.50
16
0211203066
ref: 16
02112-0306B
SCREW
€ 2.00
17
1325401010
ref: 17
PIN,FLOAT
€ 3.00
18
1337005320
ref: 18
VALVE ASSY,NEEDLE
€ 59.50
19
1325205320
ref: 19
13250-05230
FLOAT
€ 24.00
20
0949400490
ref: 20
JET,NEEDLE(N-8)
€ 12.00
21
0949120017
ref: 21
JET,MAIN
€ 10.50
22
1338344A00
ref: 22
NEEDLE,JET
€ 13.50
23
1338544A00
ref: 23
PIPE
€ 19.00
24
1325105320
ref: 24
GASKET (NAS)
€ 9.00
25
1324702340
ref: 25
PLUG,DRAIN
€ 5.50
26
0211204167
ref: 26
02112-0416A
SCREW
€ 1.00
27
0832121047
ref: 27
08321-0104A
WASHER,LOCK 4M
€ 2.00
28
0949230007
ref: 28
JET,PILOT(30)
€ 7.00
29
1368444A00
ref: 29
09351-30503-600
HOSE
€ 6.50
30
1368422A00
ref: 30
44420-44AR0
HOSE
€ 13.00
31
1355144A20
ref: 31
VALVE,PISTON
€ 47.50
32
1327947080
ref: 32
13279-47070
SCREW,PILOT AIR
€ 11.50
33
1326847070
ref: 33
SPRING
€ 5.00
34
1327744080
ref: 34
13291-29900
GASKET
€ 2.00
35
1327844080
ref: 35
13295-29900
O-RING
€ 4.00
36
1341105320
ref: 36
PLUNGER ASSY
€ 18.00
37
1327802330
ref: 37
O RING
€ 2.00
38
1341747070
ref: 38
SPRING
€ 4.00
39
1368231210
ref: 39
CAP,STARTER VALVE
€ 5.00
40
1341805320
ref: 40
HOLDER
€ 7.00
41
1341305320
ref: 41
LEVER
€ 16.00
42
1360122A00
ref: 42
02112-3416B
SCREW
€ 3.00
43
1342105320
ref: 43
PLATE
€ 3.00
44
1343205320
ref: 44
RING
€ 6.00
45
1358947070
ref: 45
WASHER
€ 3.00
46
1342405320
ref: 46
RING
€ 8.00
47
0832121086
ref: 47
08321-0108A
WASHER,LOCK,8.
€ 2.50
