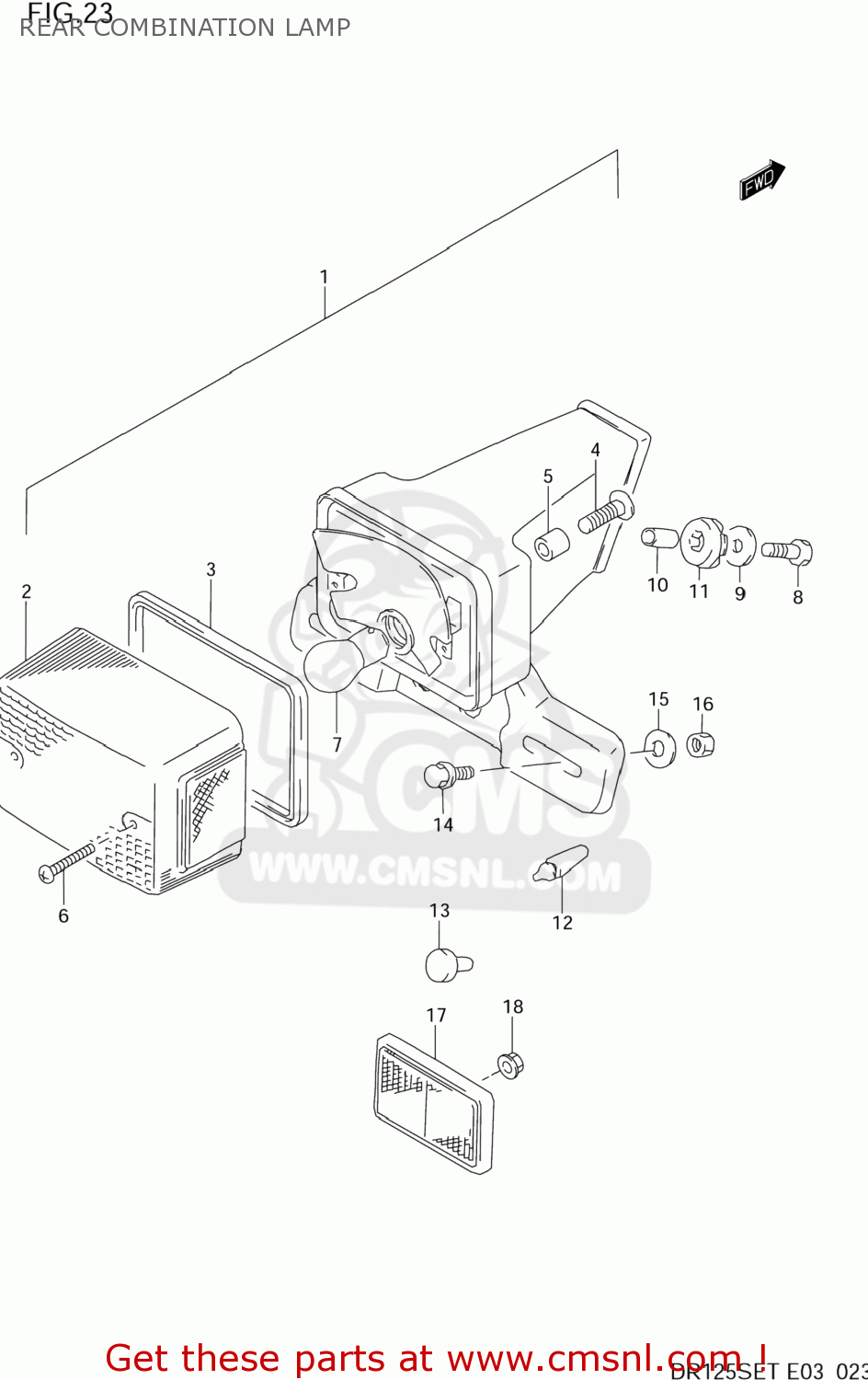

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571042A30
ref: 1

LAMP ASSY,RR COMBINATION

€ 210.00

2

3571242A30
ref: 2

LENS

€ 26.00

3

3571314D30
ref: 3

GASKET,LENS (NAS)

€ 5.00

4

0912506055
ref: 4

SCREW(6X25)

€ 3.00

5

3576614D30
ref: 5

SPACER

€ 2.50

6-1

3572314D30
ref: 6-1
09125-04501

SCREW,REAR COMBINATION LAMP LENS

€ 3.00

6-2

0912504501
ref: 6-2

SCREW(4X45)

€ 3.00

7

0947112083
ref: 7
09471-12128

BULB(12V21/5W)

€ 6.00

8

0150006203
ref: 8
01500-0620A

BOLT

€ 2.00

9

0916006057
ref: 9
09160-06109

WASHER

€ 2.00

10

0918006117
ref: 10
09180-06291

SPACER (6.8X10X13)

€ 2.00

11

0932009015
ref: 11

CUSHION

€ 2.50

12

0932106030
ref: 12

CUSHION

€ 3.00

13

0932106026
ref: 13

CUSHION

€ 3.50

14

0150006303
ref: 14
01500-0630A

BOLT

€ 2.50

15

0916006057
ref: 15
09160-06109

WASHER

€ 2.00

16

0831000063
ref: 16
08310-0006A

NUT 6MM

€ 2.00

17

3597014A00
ref: 17

RR ASSY,RR

€ 15.50

18

0831610053
ref: 18
08316-1005A

NUT

€ 2.50

all assemblies
