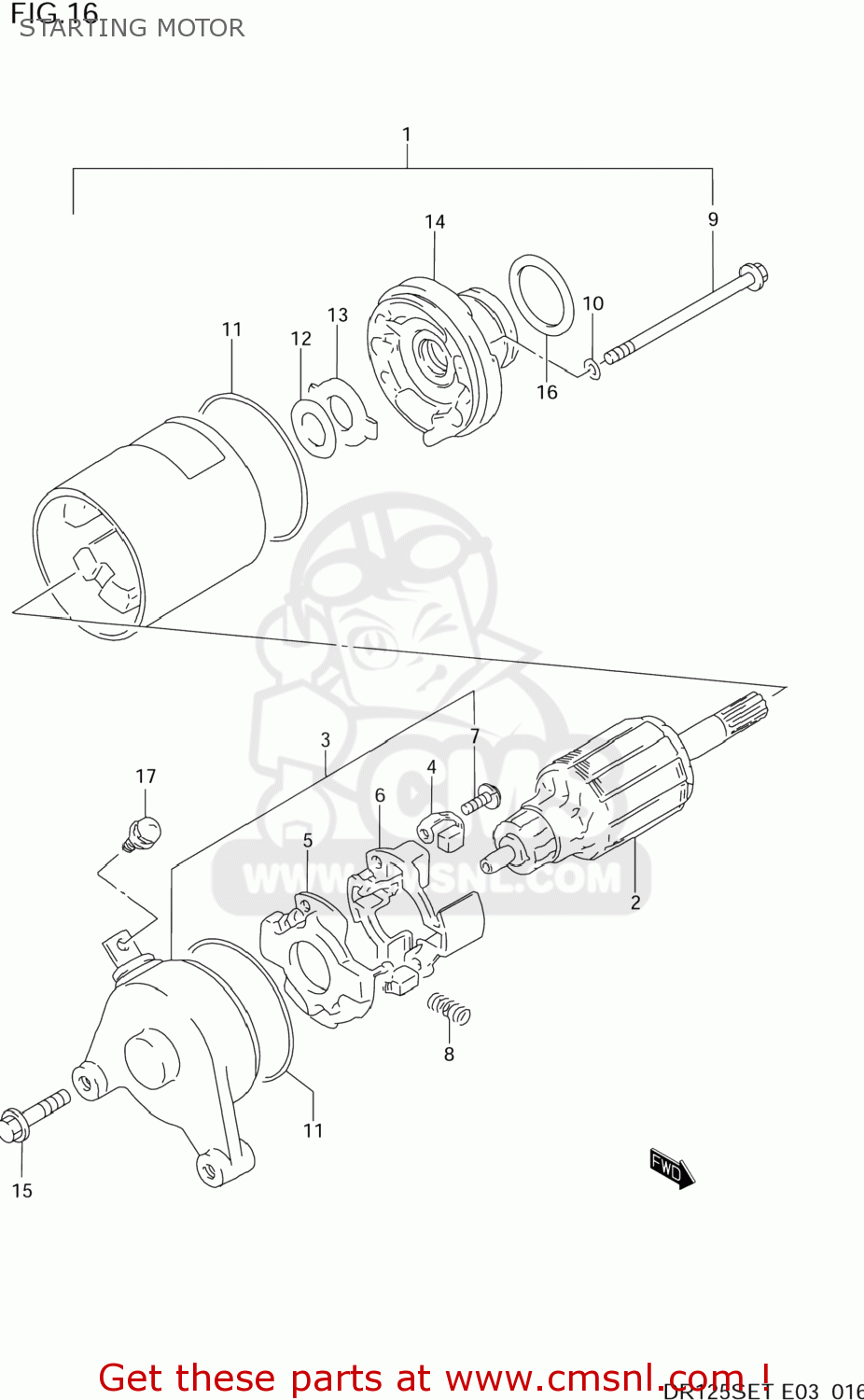

STARTING MOTOR

ref

part #

description

quantity

1-1

3110005500
ref: 1-1
31100-05510

MOTOR ASSEMBLY,STARTING

€ 899.00

1-2

3110005501
ref: 1-2
31100-05510

MOTOR ASSY,STARTING

€ 899.00

2

3131011D00
ref: 2

ARMATURE

€ 265.50

3-1

3117505330
ref: 3-1
31175-42A01

FRAME ASSEMBLY,COMMUTATOR

€ 66.50

3-2

3117542A01
ref: 3-2

FRAME ASSY,COMMUTATOR END

€ 66.50

4

3113232C10
ref: 4

BRUSH

€ 14.50

5-1

3113032C10
ref: 5-1
31130-32C20

BRUSH SUB ASSEMBLY

€ 28.00

5-2

3113032C20
ref: 5-2

BRUSH SUB ASSY,STARTER

€ 28.00

6

3113332C10
ref: 6

HOLDER,BRUSH

€ 9.00

7-1

3113432C10
ref: 7-1
02112-3412B

SCREW

€ 2.00

7-2

0211234123
ref: 7-2
02112-3412B

SCREW

€ 2.00

8

3113532C10
ref: 8

SPRING

€ 3.50

9

3128132C10
ref: 9

BOLT

€ 8.50

10

3115638300
ref: 10

O RING

€ 3.00

11

3126432C10
ref: 11

O RING

€ 9.00

12

3136138300
ref: 12

SHIM

€ 1.50

13

3136132C10
ref: 13

PLATE,LOCK

€ 2.50

14-1

3115005330
ref: 14-1
31150-06C00

BRACKET

€ 112.00

14-2

3115006C00
ref: 14-2

BRACKET

€ 112.00

15-1

0154706353
ref: 15-1
01547-0635B

BOLT

€ 3.00

15-2

0154706303
ref: 15-2
01547-0630B

BOLT,G/S SWITC

€ 3.00

16

0928024003
ref: 16

O RING(D:3,ID:24.5)

€ 2.00

17

0913705004
ref: 17

SCREW(5X8)

€ 2.00

all assemblies
