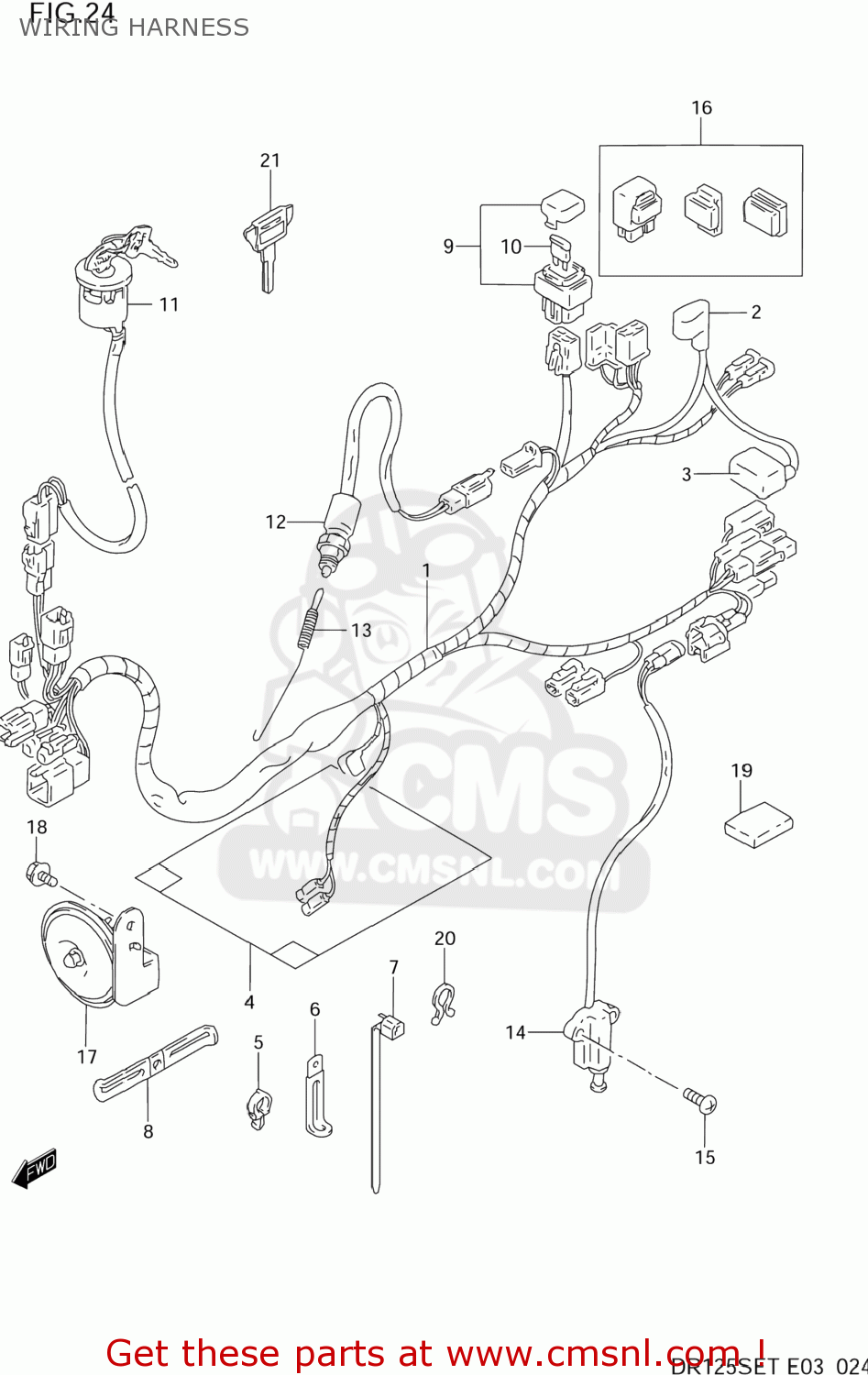

WIRING HARNESS

ref

part #

description

quantity

1-1

3661042A10
ref: 1-1

HARNESS,WIRING

€ 0.00

1-2

3661042A50
ref: 1-2

HARNESS,WIRING

€ 0.00

2

3186110D00
ref: 2

CAP,STARTER RELAY

€ 4.00

3

3362410D00
ref: 3

CAP,BATTERY PLUS

€ 4.00

4-1

3661815D02
ref: 4-1
36618-15D20

COVER,WIRING HARNESS

€ 12.00

4-2

3661815D20
ref: 4-2

COVER,WIRING HARNESS

€ 12.00

5

0940312404
ref: 5

CLAMP

€ 1.50

6-1

0940406434
ref: 6-1

CLAMP(L:80 T:1.0)

€ 3.00

6-2

0940406426
ref: 6-2
09404-06433

CLAMP

€ 3.00

6-3

0940406429
ref: 6-3

CLAMP(L:45)

€ 2.50

7-1

0940714403
ref: 7-1

CLAMP(L:125)

€ 2.50

7-2

0940711401
ref: 7-2

CLAMP(L:95)

€ 2.50

7-3

0940718403
ref: 7-3
09407-18402

CLAMP L:165

€ 2.50

7-4

0940720404
ref: 7-4
09407-25402

CLAMP

€ 4.50

7-5

0940725401
ref: 7-5

CLAMP(L:235)

€ 4.00

8

3665105301
ref: 8

CLAMP,STARTER MOTOR LEAD

€ 5.00

9-1

3674009301
ref: 9-1
36740-24B01

BOX ASSEMBLY,FUSE

€ 18.00

9-2

3674024B01
ref: 9-2

BOX ASSY,FUSE

€ 18.00

10

0948120101
ref: 10

FUSE(20A)

€ 2.00

11

3711044A00
ref: 11
37110-44A20

SWITCH ASSEMBLY,IGNITION

€ 70.00

12

3774031D00
ref: 12

SWITCH ASSY,STOP LAMP

€ 20.50

13

0944306064
ref: 13

SPRING

€ 3.50

14-1

3784044A20
ref: 14-1
37840-44X50

SWITCH ASSEMBLY,SIDE STAND

€ 75.50

14-2

3784044X50
ref: 14-2

SWITCH ASSY,SIDE STAND

€ 75.50

15

0214206203
ref: 15
02142-0620A

SCREW

€ 2.00

16

3874024X50
ref: 16

RELAY ASSY

€ 37.50

17-1

3850044B10
ref: 17-1
38500-44B00

HORN ASSEMBLY

€ 48.00

17-2

3850044B00
ref: 17-2

HORN ASSY

€ 48.00

18

0155006123
ref: 18
01550-0612A

BOLT

€ 2.50

19

3692014D00
ref: 19

PROTECTOR,WIRING HARNESS

€ 5.50

20

0940800012
ref: 20

CLIP(ID:11.5)

€ 2.00

21-1

3714603A00
ref: 21-1

KEY,BLANK(TYPE:C)

€ 6.00

21-2

3714603A10
ref: 21-2

KEY,BLANK(TYPE:D)

€ 6.00

21-3

3714603A20
ref: 21-3

KEY,BLANK(TYPE:E)

€ 6.00

21-4

3714603A30
ref: 21-4

KEY,BLANK(TYPE:F)

€ 6.00
