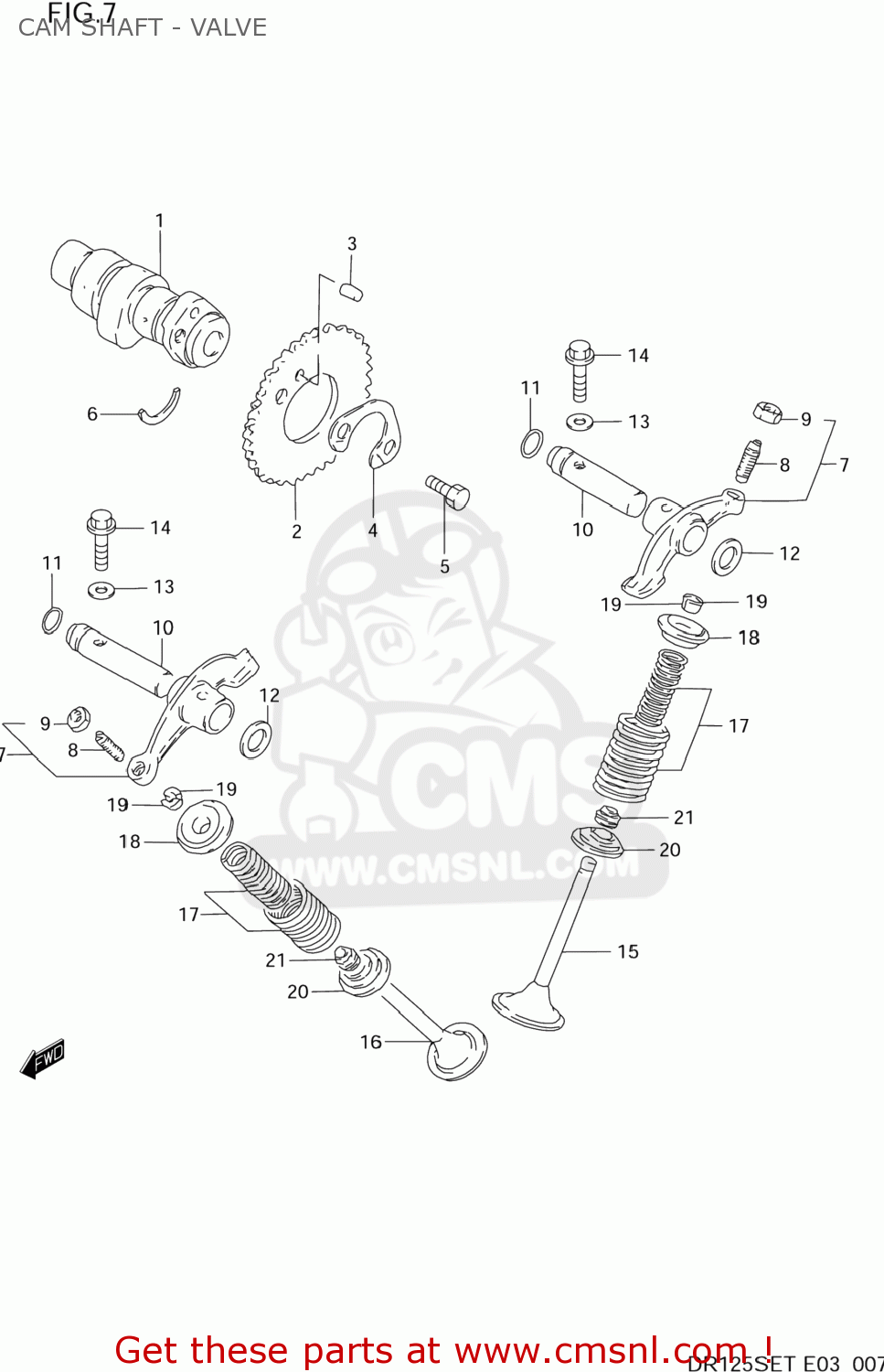

CAM SHAFT - VALVE - DR125SE 1995 (S) USA (E03)

ref

part #

description

quantity

1

1271144A01
ref: 1
12711-44A02

CAMSHAFT

€ 343.00

2

1274105201
ref: 2

SPROCKET,CAMSHAFT

€ 14.00

3

0926105005
ref: 3

PIN(5X8)

€ 1.50

4

1274705201
ref: 4
12747-05202

WASHER,SPROCKET

€ 2.00

5

0911106032
ref: 5

BOLT(6X10.5)

€ 2.00

6

0939022002
ref: 6

C RING

€ 2.00

7-1

1284005200
ref: 7-1
12850-25C00

ARM,VALVE ROCKER

€ 28.00

7-2

1285025C00
ref: 7-2

ARM ASSY,VALVE ROCKER

€ 28.00

8

1284232411
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1286105201
ref: 10

SHAFT,VALVE ROCKET

€ 9.50

11

0928009005
ref: 11

O RING(D:1.9,ID:8.6)

€ 4.00

12

0916412021
ref: 12

WASHER

€ 2.00

13

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

14

0155006253
ref: 14
01550-0625A

BOLT

€ 2.50

15-1

1291124400
ref: 15-1
12911-04B00

VALVE,INTAKE

€ 41.50

15-2

1291104B00
ref: 15-2

VALVE,INTAKE

€ 41.50

16

1291224400
ref: 16

VALVE,EXHAUST

€ 41.50

17

1292005240
ref: 17

SPRING SET,VALVE

€ 10.50

18

1293149200
ref: 18
12931-49201

RETAINER,VALVE SPRING

€ 5.50

19

1293224400
ref: 19

COTTER,VALVE

€ 2.00

20

1293349201
ref: 20

SEAT,VALVE SPRING

€ 4.50

21

0928905015
ref: 21

SEAL,OIL(5.5X11X8.2)

€ 6.50

CAM SHAFT - VALVE

all assemblies
