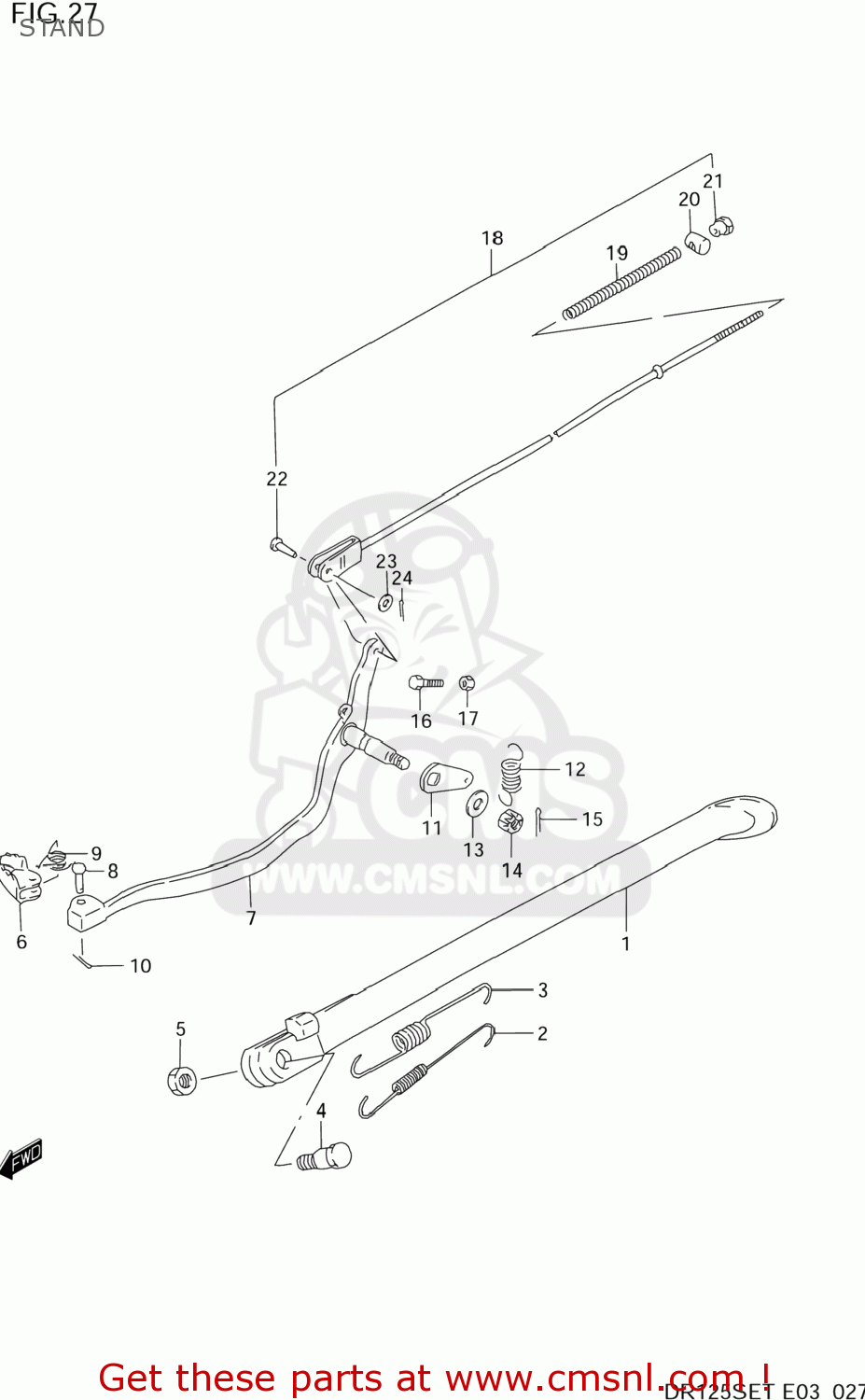

STAND

ref

part #

description

quantity

1

4231044A32019
ref: 1
42310-44A33-019

STAND COMP,PROP

€ 48.00

2

0944312035
ref: 2

SPRING

€ 6.00

3

0944320003
ref: 3

SPRING

€ 9.00

4

0911110019
ref: 4
09111-10047

BOLT L:30

€ 4.50

5

0915910097
ref: 5

NUT

€ 5.00

6

4311014130
ref: 6

PEDAL,BRAKE

€ 6.00

7

4312044A11
ref: 7
43120-44A12

ARM,BRAKE PEDAL

€ 34.00

8

0920006038
ref: 8

PIN

€ 2.00

9

0944411005
ref: 9

SPRING

€ 3.00

10

0411120158
ref: 10
04111-2015A

PIN

€ 1.50

11

4312838200
ref: 11

ARM,BRAKE RETURN SPRING

€ 3.50

12

0944314002
ref: 12

SPRING

€ 2.50

13

0821108202
ref: 13

WASHER

€ 1.50

14

0831440083
ref: 14
08314-4008B

NUT

€ 2.50

15

0411120208
ref: 15
04111-2020A

PIN 20X20

€ 1.50

16

0910006009
ref: 16

BOLT(6X23)

€ 1.50

17

0831000063
ref: 17
08310-0006A

NUT 6MM

€ 2.00

18

4330044A03
ref: 18

ROD ASSY,RR BRAKE

€ 20.00

19

0944009004
ref: 19

SPRING

€ 2.00

20

0920913005
ref: 20
09209-13018

PIN

€ 3.50

21

0915006009
ref: 21
09150-06010

NUT (6MM)

€ 3.50

22

0920006013
ref: 22

PIN(L:13.5)

€ 2.00

23

0832201063
ref: 23
08322-0106B

WASHER

€ 2.00

24

0411120208
ref: 24
04111-2020A

PIN 20X20

€ 1.50
