REAR WHEEL
DR125SE 1995 (S) USA (E03)

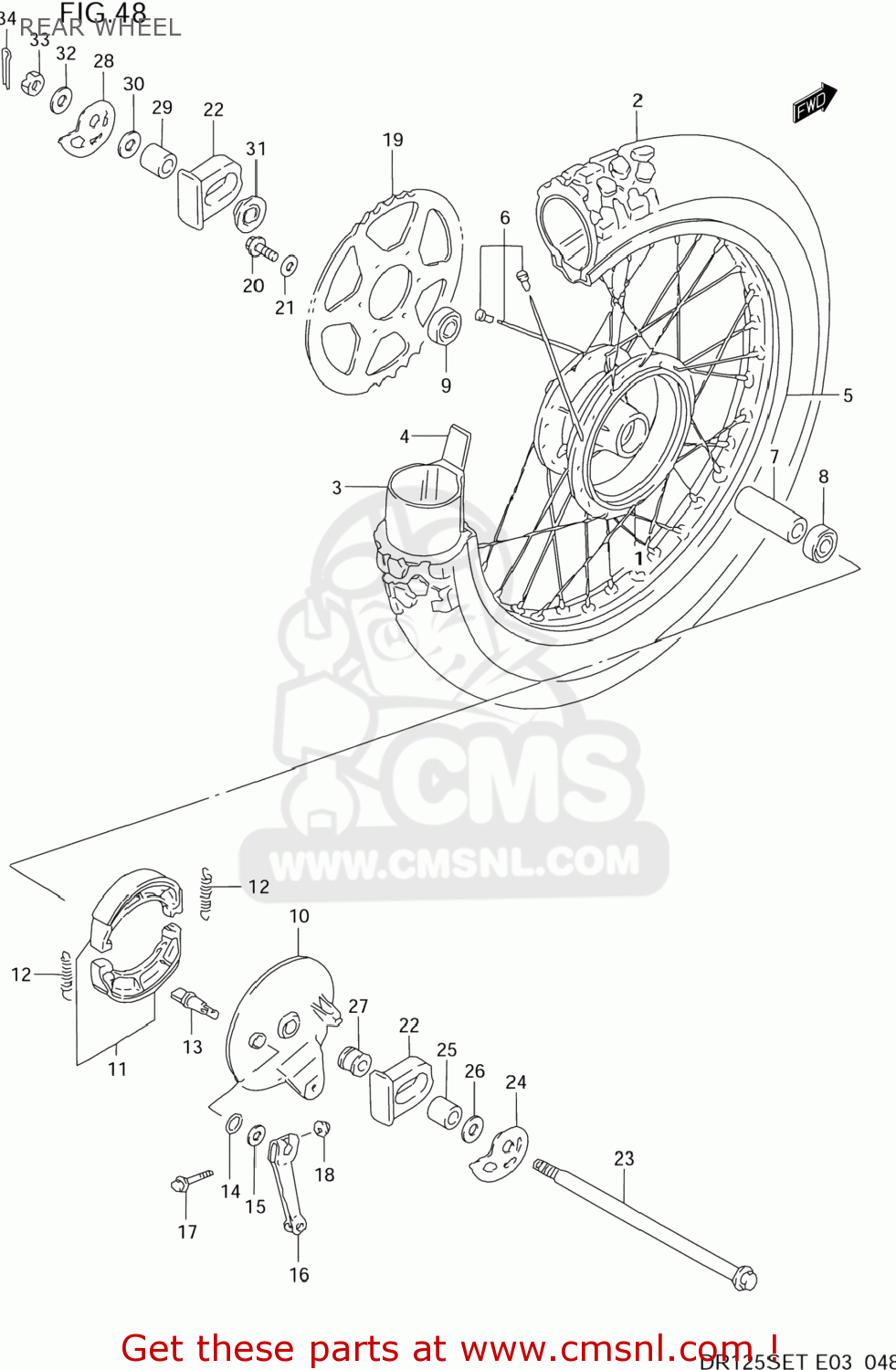

Rear wheel diagram DR125SE 1995 (S) USA (E03)
REAR WHEEL DR125SE 1995 (S) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411044A01
ref: 1-1
HUB,RR WHEEL
€ 298.00
1-2
6411044A10
ref: 1-2
HUB,RR WHEEL
€ 200.50
2
6511044AA0
ref: 2
TIRE,RR(90/90-18 51P)
€ 173.50
2
6511044AA0
ref: 2
TIRE,RR(90/90-18 51P)
€ 173.50
3
6520044AA0
ref: 3
TUBE ASSY,INNER
€ 35.00
4
6526133030
ref: 4
PROTECTOR,INNER TUBE
€ 5.50
5
6531144AA0
ref: 5
RIM,RR WHEEL(18X1.85 FE)
€ 117.50
6
6532044AA0
ref: 6
SPOKE SET,RR WHEEL
€ 43.50
7
0918015013
ref: 7
SPACER(15.3X21.7X107.5)
€ 7.50
8
0814362027
ref: 8
BEARING
€ 12.50
9
0812363027
ref: 9
BEARING
€ 19.00
10-1
6421048000
ref: 10-1
PANEL,RR BRAKE ANCHOR
€ 83.50
10-1
6421048000
ref: 10-1
PANEL,RR BRAKE ANCHOR
€ 83.50
10-2
6421044A00
ref: 10-2
PANEL,RR BRAKE ANCHOR
€ 128.50
10-2
6421044A00
ref: 10-2
PANEL,RR BRAKE ANCHOR
€ 128.50
11
5440007870
ref: 11
SHOE SET,BRAKE (NAS)
€ 35.00
12
0944307001
ref: 12
09443-07025
SPRING(L:34)
€ 2.50
13
5444129305
ref: 13
CAM,BRAKE
€ 13.00
14
0928014003
ref: 14
09280-14011
O-RING (D:2.4 ID:13.8)
€ 3.50
15
0916014001
ref: 15
09160-14055
WASHER (14.5X22X1.6)
€ 2.50
16
6445130501
ref: 16
LEVER,RR BRAKE CAM
€ 15.00
17
0155006403
ref: 17
01550-0640A
BOLT
€ 2.00
18
0831610063
ref: 18
08316-1006B
NUT
€ 2.50
19-1
6451144A01
ref: 19-1
64511-44A02
SPROCKET,REAR
€ 65.50
19-2
6451144A02
ref: 19-2
SPROCKET,RR(NT:53)
€ 65.50
20
0910308048
ref: 20
BOLT(8X30)
€ 3.50
21
0916408020
ref: 21
WASHER
€ 2.50
22
6147044A00
ref: 22
CAP,RR SWINGING ARM
€ 7.50
23
6471144A11
ref: 23
AXLE,RR
€ 30.00
24
6141142A00
ref: 24
ADJUSTER,CHAIN,R
€ 7.00
25
6141344A00
ref: 25
SPACER,CHAIN ADJUSTER
€ 5.00
26
0916015002
ref: 26
WASHER(15.5X26X2.3)
€ 2.00
27
6474105200
ref: 27
SPACER,RR AXLE,R
€ 6.50
28
6142142A00
ref: 28
ADJUSTER,CHAIN,L
€ 7.00
29
6141344A00
ref: 29
SPACER,CHAIN ADJUSTER
€ 5.00
30
0916015002
ref: 30
WASHER(15.5X26X2.3)
€ 2.00
31
6475005202
ref: 31
SPACER,RR AXLE,L
€ 8.00
32
0916014033
ref: 32
09160-14062
WASHER
€ 3.00
33
0831440143
ref: 33
08314-4014B
NUT
€ 3.00
34
0411130308
ref: 34
04111-3030A
COTTER PIN
€ 1.50
