FRONT FENDER (MODEL X)

DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

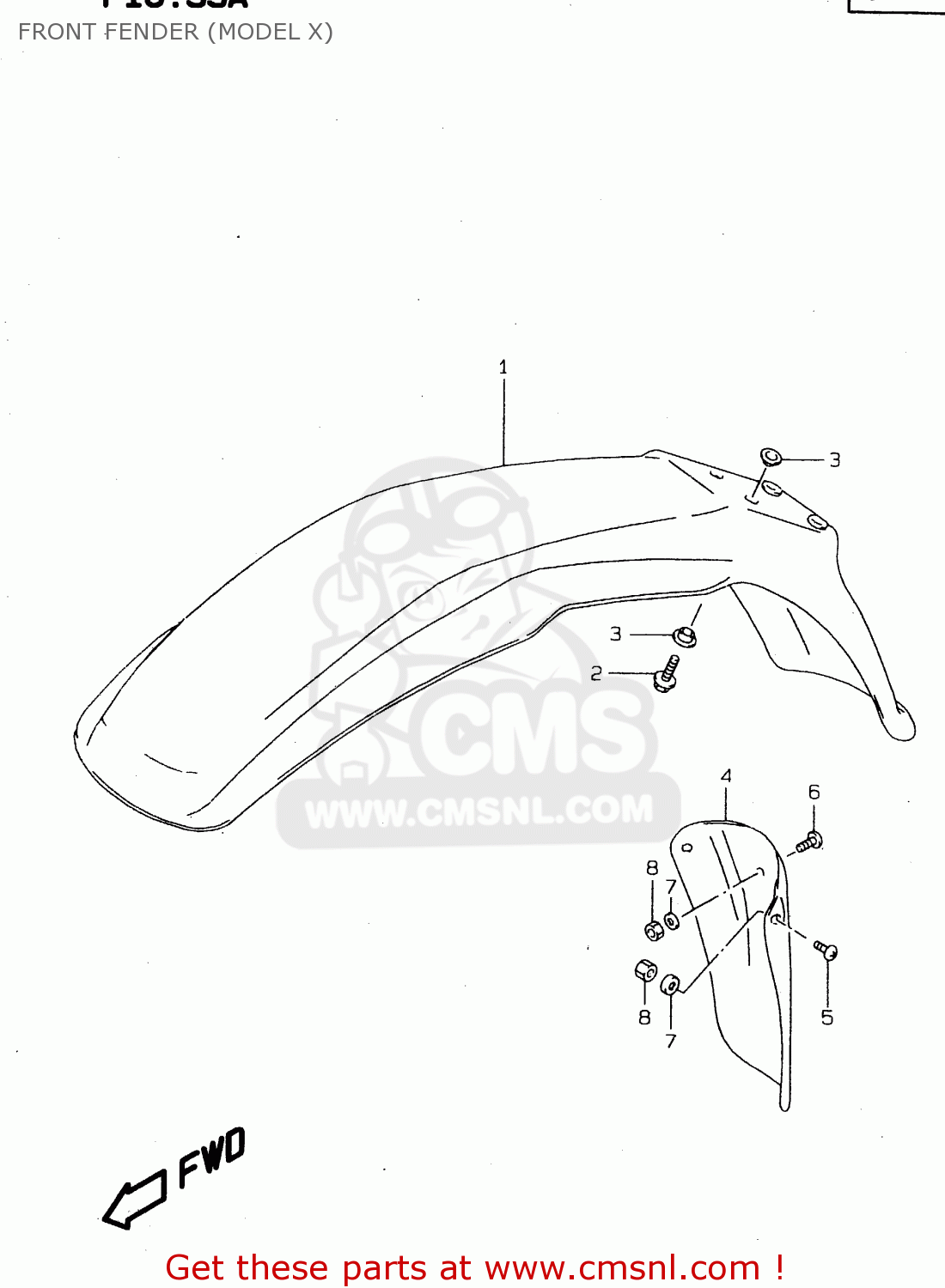

Front fender (model x) diagram DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

5311144A00019
ref: 1
FOR 019

FENDER,FR

€ 60.50

5311144A0030H
ref: 1
FOR L3E, L9V

FENDER,FR

€ 72.00

5311144A10019
ref: 1
E18, E22 FOR 019

FENDER,FRONT(B

€ 76.00

5311144A1030H
ref: 1
E18, E22 FOR L3E, L9

FENDER,FR

€ 60.50

0155006163
ref: 2

BOLT

€ 2.50

0916906054
ref: 3

WASHER

€ 2.00

5331014A40
ref: 4
E18, E22

MUDFLAP, FRONT FENDER

€ 0.00

0214206167
ref: 5
E18, E22

SCREW

€ 2.00

0214206207
ref: 6
E18, E22

SCREW

€ 2.00

0916006129
ref: 7
E18, E22

WASHER(6.5X16X1)

€ 2.00

0831610063
ref: 8
E18, E22

NUT

€ 2.50
