HANDLE SWITCH

DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

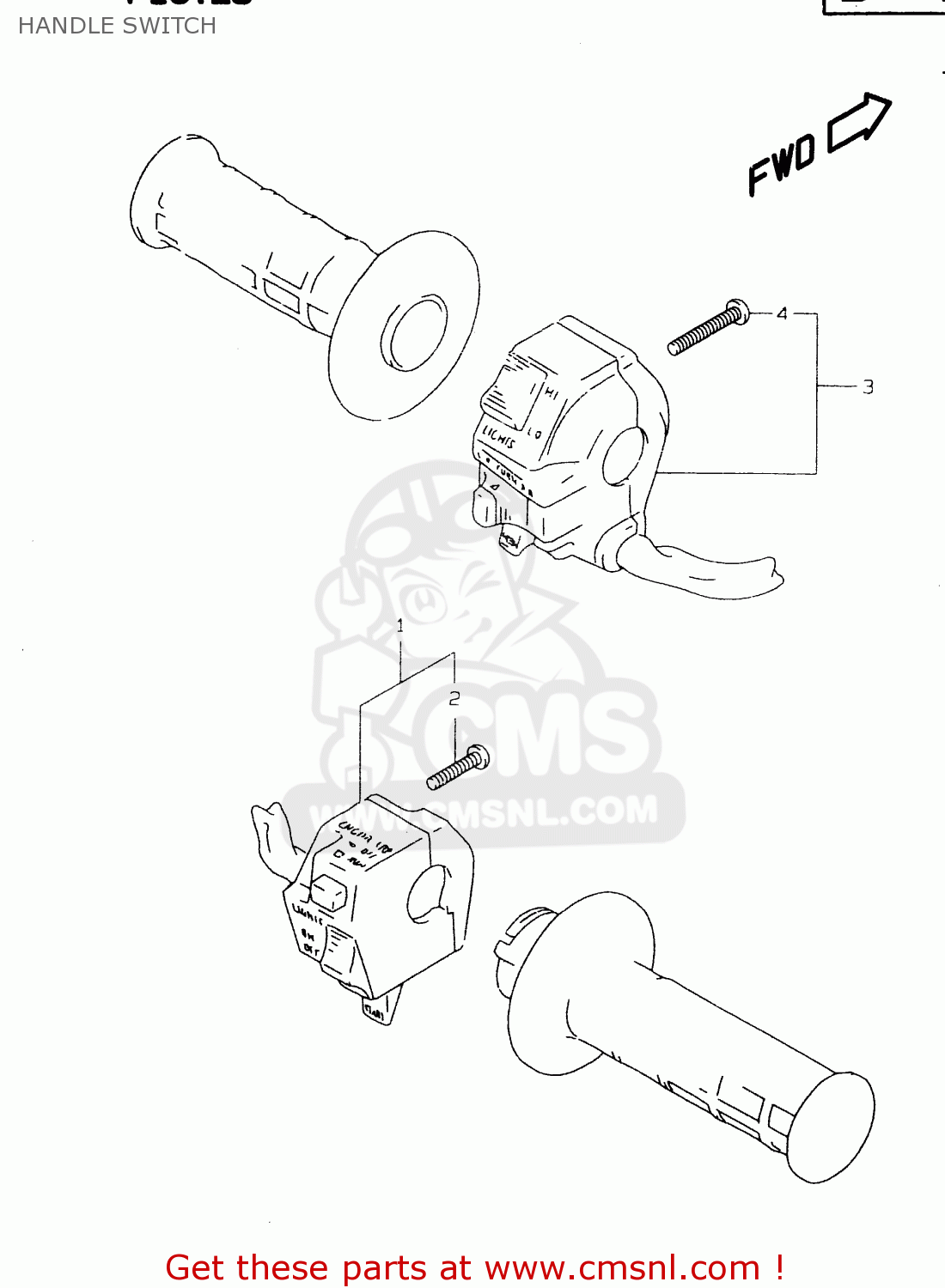

Handle switch diagram DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

3720044A00
ref: 1
MODEL R/S/T

SWITCH ASSY,HANDLE,R

€ 92.50

3720044A50
ref: 1
MODEL R/S/T E22

SWITCH ASSY, HANDLE RH

€ 139.00

3720044A50
ref: 1
MODEL V

SWITCH ASSY, HANDLE RH

€ 139.00

3720032E20
ref: 1
MODEL W/X

SWITCH ASSY,HANDLE,R

€ 139.00

0912505066
ref: 2

SCREW(5X25)

€ 2.00

3740044A00
ref: 3
MODEL R/S/T/V

SWITCH ASSEMBLY,HANDLE,LEFT

€ 110.50

3740044A30
ref: 3
MODEL W/X

SWITCH ASSY,HANDLE,L

€ 110.50

0211205305
ref: 4

SCREW

€ 1.50
