FRONT MASTER CYLINDER

DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

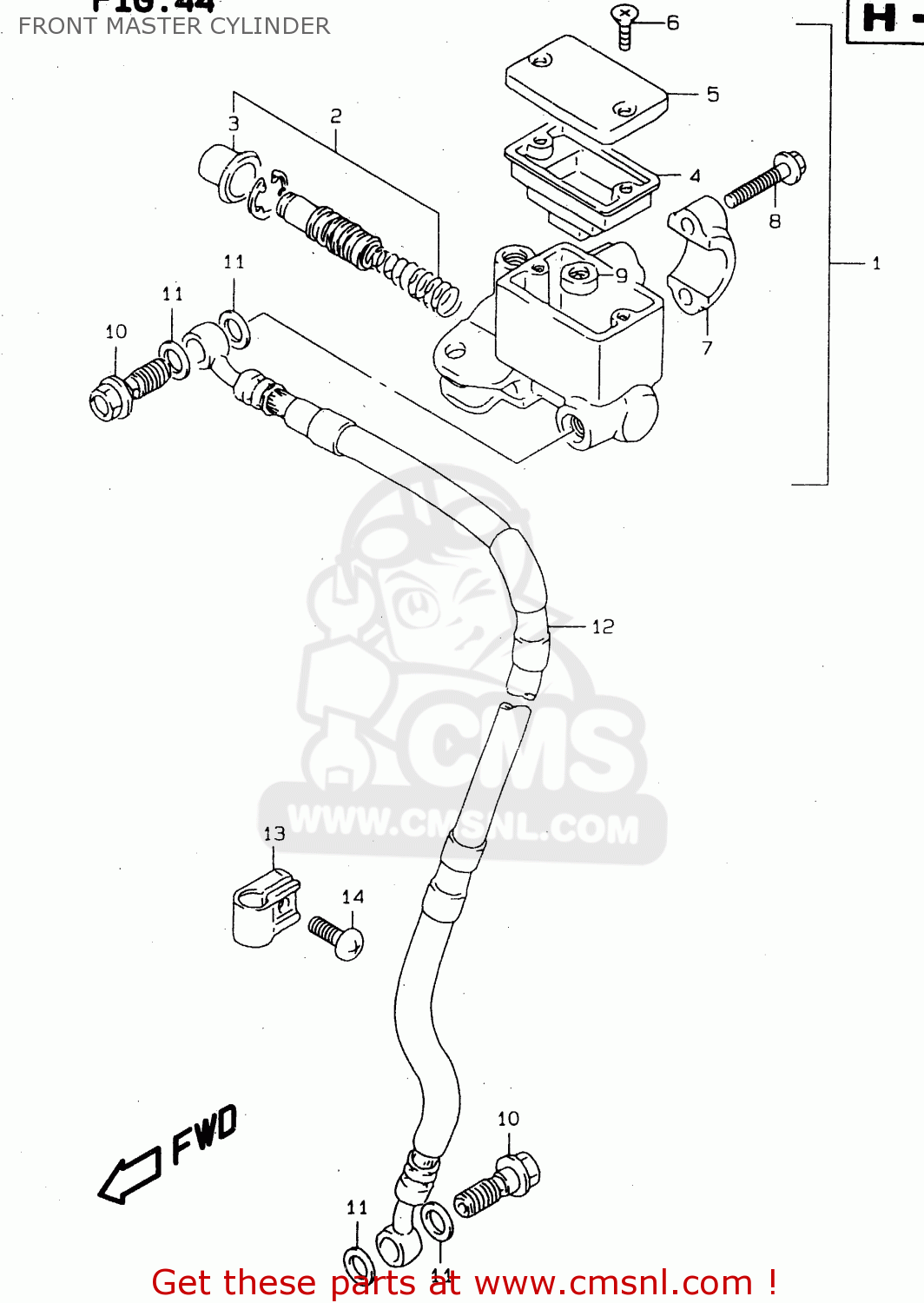

Front master cylinder diagram DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

FRONT MASTER CYLINDER DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

FRONT MASTER CYLINDER DR125SE 1997 (V) FRANCE GERMANY ITALY (E04 E22 E34)

prices are in EUR

ref

part #

description

quantity

1

5960003D00
ref: 1

CYLINDER ASSEMBLY,FRONT MASTER

€ 175.50

2

6960038810
ref: 2

PISTON/CUP SET

€ 42.50

3

5966644300
ref: 3

BOOT

€ 6.00

4

5966744B00
ref: 4

DIAPHRAGM

€ 8.00

5

5966903D00
ref: 5

CAP

€ 14.00

6

0212204123
ref: 6

SCREW

€ 2.00

7

5967103D00
ref: 7

HOLDER

€ 13.00

8

5967527C00
ref: 8

BOLT

€ 2.50

9

5974814500
ref: 9

SEPARATOR

€ 6.00

10

0936010039
ref: 10

BOLT UNION

€ 6.50

11

0916110009
ref: 11

WASHER(10X15X1.5)

€ 2.00

12

5948044AA0
ref: 12

HOSE COMP,FRONT BRAKE

€ 183.00

13

5862107A10
ref: 13

CLAMP,BRAKE HOSE

€ 3.50

14

0214206163
ref: 14

SCREW

€ 2.50
