BATTERY

DR125SEU 1999 (X) GERMANY (E22)

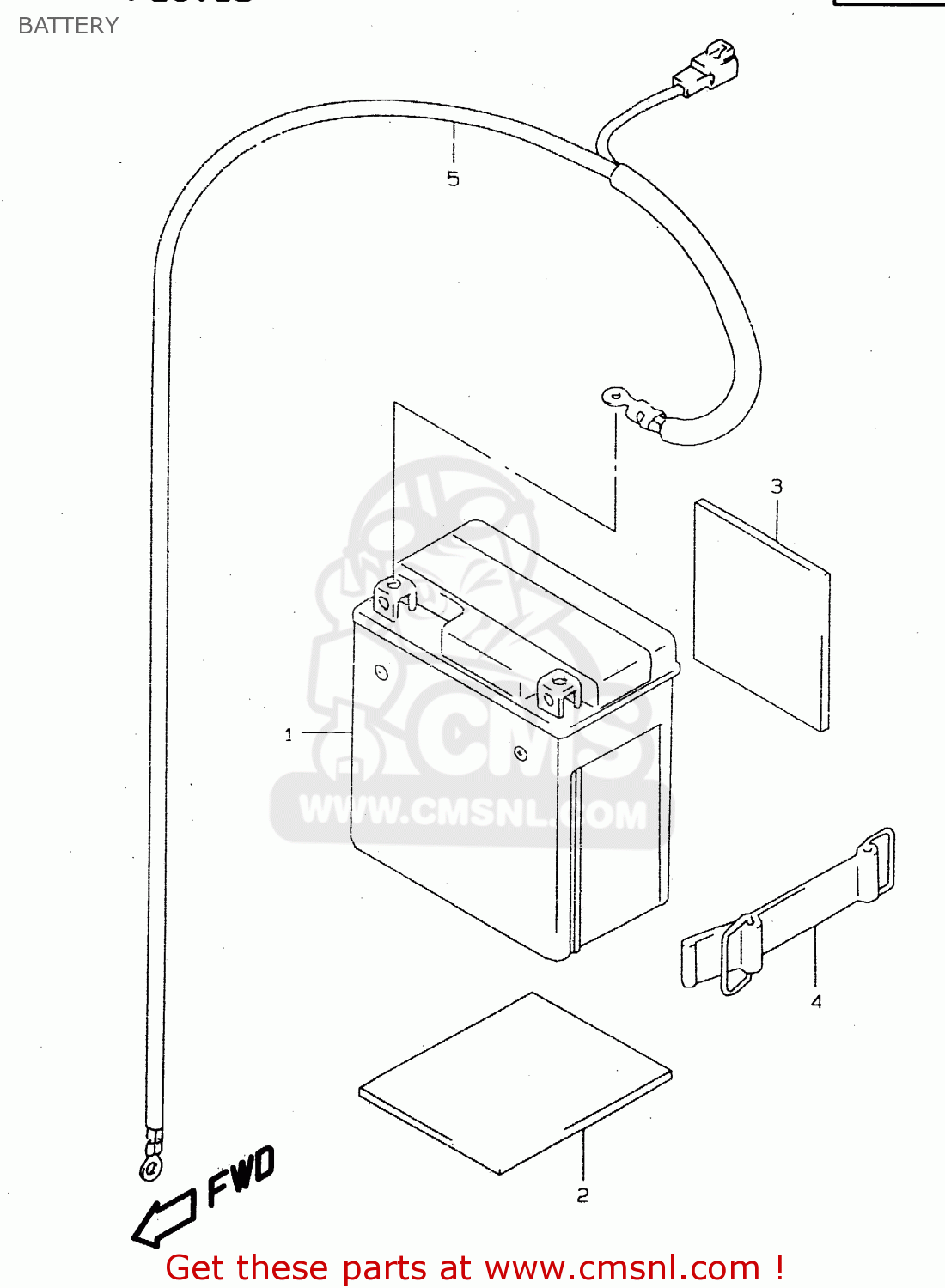

Battery diagram DR125SEU 1999 (X) GERMANY (E22)

BATTERY DR125SEU 1999 (X) GERMANY (E22)

BATTERY DR125SEU 1999 (X) GERMANY (E22)

prices are in EUR

ref

part #

description

quantity

1

3361015D20
ref: 1

BATTERY ASSY(YTX7L-BS,12V6AH)

€ 65.50

2

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3

3365137000
ref: 3
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

4

0946200093
ref: 4

BAND

€ 8.50

5

3386044A00
ref: 5

WIRE,BATTERY MINUS

€ 15.00
