STARTING MOTOR
DR125SEU 1999 (X) GERMANY (E22)

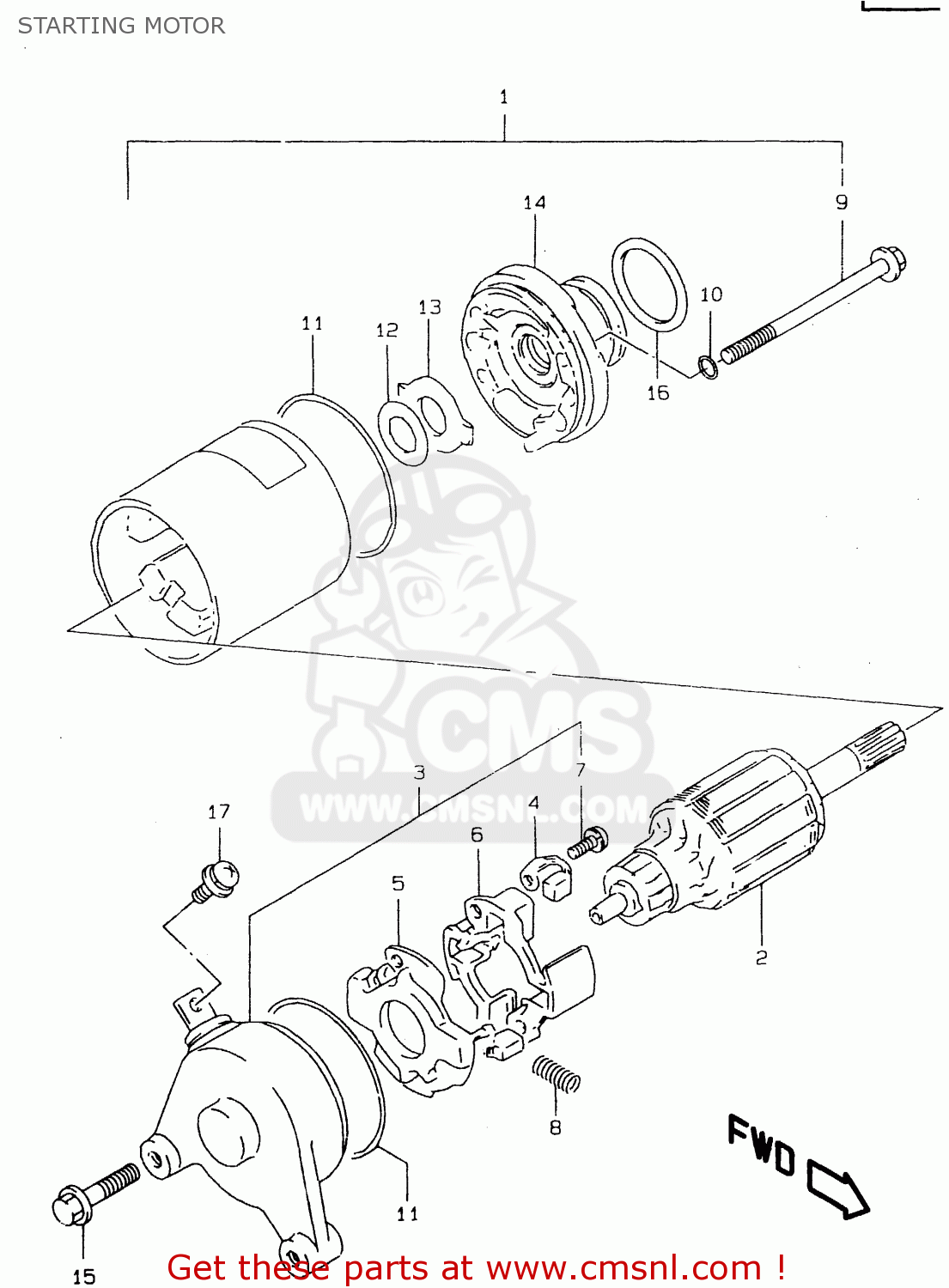

Starting motor diagram DR125SEU 1999 (X) GERMANY (E22)
STARTING MOTOR DR125SEU 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
3110005500
ref: 1
MODEL R/S
MOTOR ASSEMBLY,STARTING
€ 899.00
1
3110005501
ref: 1
MODEL T/V/W/X
MOTOR ASSY,STARTING
€ 899.00
2
3131011D00
ref: 2
ARMATURE
€ 265.50
3
3117505330
ref: 3
MODEL R
FRAME ASSEMBLY,COMMUTATOR
€ 66.50
3
3117529B00
ref: 3
MODEL S
FRAME ASSEMBLY,COMMUTATOR
€ 66.50
3
3117542A01
ref: 3
MODEL T/V/W/X
FRAME ASSY,COMMUTATOR END
€ 66.50
4
3113232C10
ref: 4
BRUSH
€ 14.50
5
3113032C20
ref: 5
BRUSH SUB ASSY,STARTER
€ 28.00
6
3113332C10
ref: 6
HOLDER,BRUSH
€ 9.00
7
0211234123
ref: 7
SCREW
€ 2.00
8
3113532C10
ref: 8
SPRING
€ 3.50
9
3128132C10
ref: 9
BOLT
€ 8.50
10
3115638300
ref: 10
O RING
€ 3.00
11
3126432C10
ref: 11
O RING
€ 9.00
12
3136138300
ref: 12
SHIM
€ 1.50
13
3136132C10
ref: 13
PLATE,LOCK
€ 2.50
14
3115006C00
ref: 14
BRACKET
€ 112.00
15
0154706353
ref: 15
MODEL R/S
BOLT
€ 3.00
15
0154706303
ref: 15
MODEL T/V/W/X
BOLT,G/S SWITC
€ 3.00
16
0928024003
ref: 16
O RING(D:3,ID:24.5)
€ 2.00
17
0913705004
ref: 17
SCREW(5X8)
€ 2.00
