FRONT WHEEL
DR125SEU 1999 (X) GERMANY (E22)

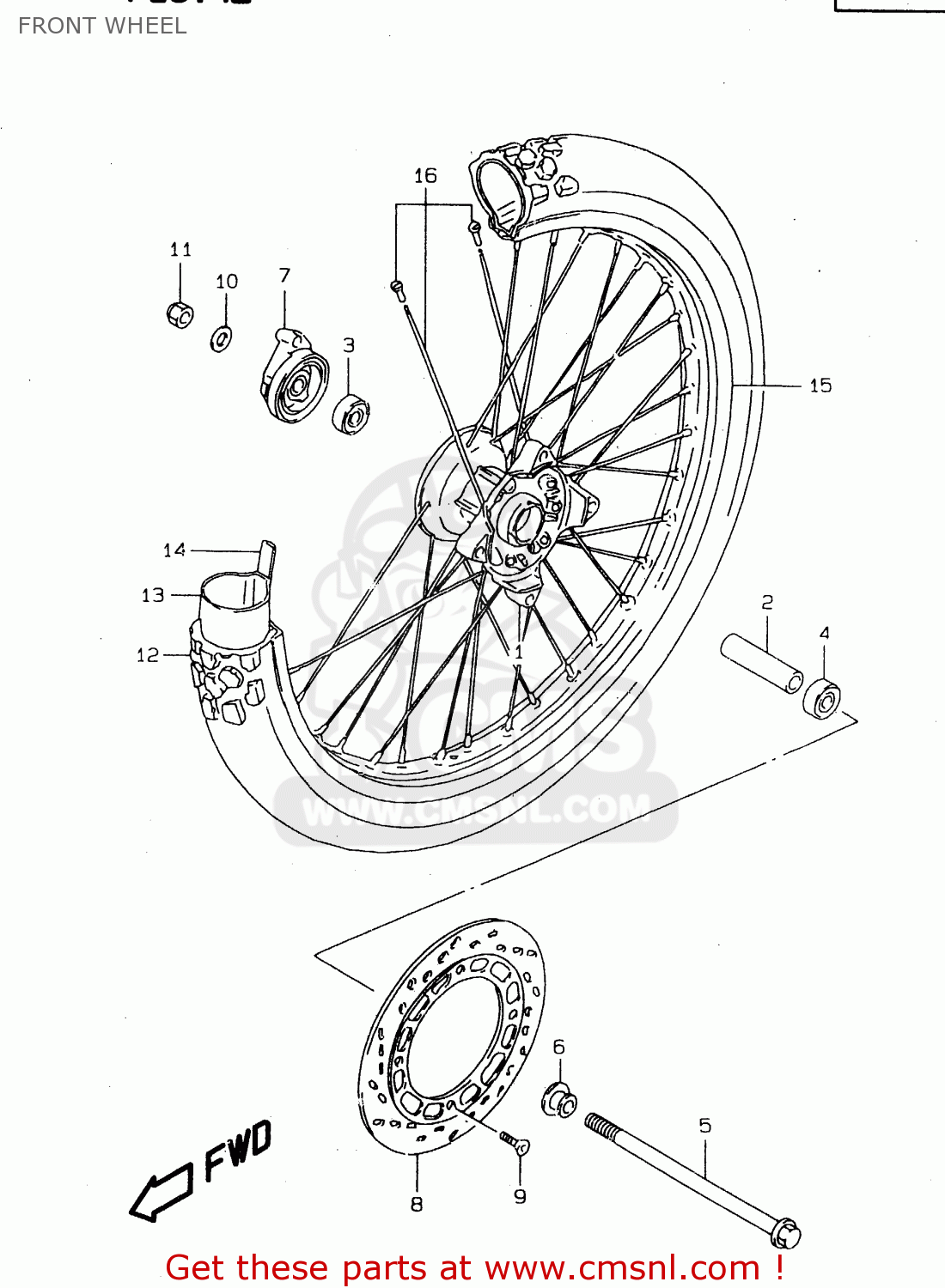

Front wheel diagram DR125SEU 1999 (X) GERMANY (E22)
FRONT WHEEL DR125SEU 1999 (X) GERMANY (E22)
×
prices are in EUR
ref
part #
description
quantity
1
5411144A01
ref: 1
MODEL R
HUB,FR
€ 151.00
1
5411144A10
ref: 1
MODEL S/T/V/W/X
HUB,FR WHEEL
€ 157.50
2
0918012146
ref: 2
SPACER(12.5X19X60.5)
€ 8.00
3
0811362017
ref: 3
BEARING
€ 11.00
4
0813362017
ref: 4
BEARING (12X32X10)
€ 15.00
5
5471144A01
ref: 5
AXLE,FR
€ 22.00
6
5474002B40
ref: 6
SPACER,FR AXLE
€ 9.50
7
5460001A00
ref: 7
BOX ASSY,SPEEDOMETER GEAR
€ 44.50
8
5922113A01
ref: 8
DISC,FR BRAKE
€ 134.00
9
5942103A10
ref: 9
BOLT,BRAKE DISC
€ 4.00
10
0832201123
ref: 10
WASHER
€ 2.00
11
0915912008
ref: 11
MODEL R/S/T
NUT (12MM)
€ 3.00
11
0831921128
ref: 11
MODEL V/W/X
NUT 12MM
€ 4.00
12
5511042AA0
ref: 12
TIRE,FR(70/100-21 44P)
€ 137.50
13
5520016510
ref: 13
TUBE
€ 32.50
14
5526114540
ref: 14
PROTECTOR,WHEEL INNER
€ 5.00
15
5531108D10
ref: 15
RIM,FR WHEEL(21X1.60 FE)
€ 133.50
16
5532044A01
ref: 16
SPOKE SET,FR WHEEL
€ 39.50
