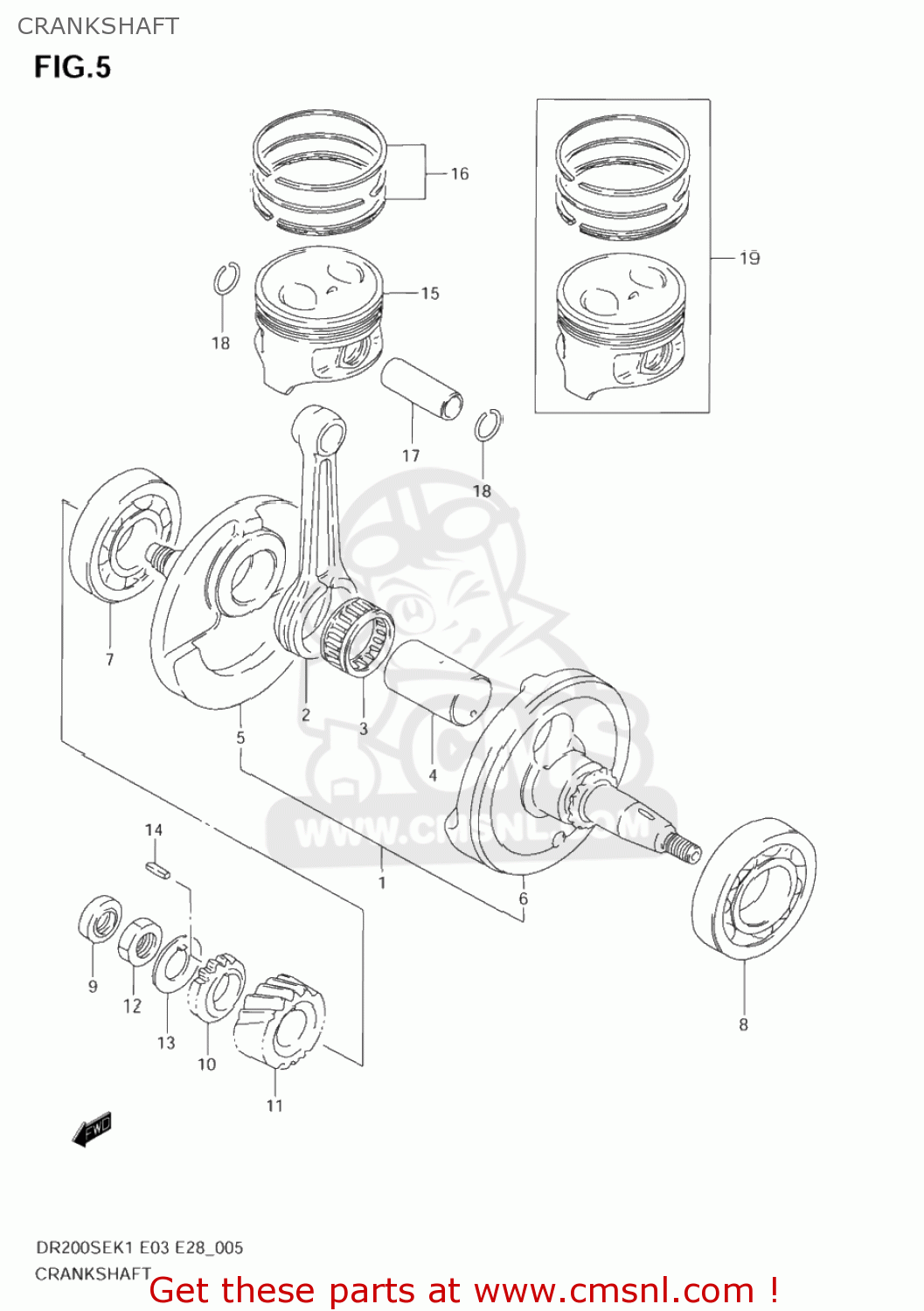

CRANKSHAFT

ref

part #

description

quantity

1-1

1220042A10
ref: 1-1
12200-42A21

CRANKSHAFT ASSEMBLY

€ 352.00

1-2

1220042A20
ref: 1-2
12200-42A21

CRANKSHAFT ASSY

€ 352.00

1-3

1220042A21
ref: 1-3

CRANKSHAFT ASSY

€ 352.00

2

1216142A01
ref: 2

CONNECTING ROD

€ 87.50

3

09263310080B0
ref: 3

BEARING(31X38X18)

€ 26.50

4-1

1221042A00
ref: 4-1
12210-42A01

PIN,CRANK

€ 29.50

4-2

1221042A01
ref: 4-2

PIN,CRANK

€ 29.50

5

1222142A02
ref: 5

CRANKSHAFT,R

€ 67.50

6-1

1226142A10
ref: 6-1
12261-42A20

CRANKSHAFT,LEFT

€ 141.50

6-2

1226142A20
ref: 6-2

CRANKSHAFT,L

€ 141.50

7

0926228014
ref: 7

BEARING(28X68X18)

€ 40.00

8

0926235038
ref: 8

BEARING(35X72X17)

€ 38.00

9

0928212009
ref: 9

SEAL,OIL(12X21X7)

€ 9.00

10

1632142A00
ref: 10

GEAR,OIL PUMP DRIVE(NT:15)

€ 33.50

11

2111142A01
ref: 11

GEAR,PRIMARY DRIVE

€ 28.00

12

0914018004
ref: 12

NUT

€ 3.00

13

0916618003
ref: 13

WASHER

€ 2.00

14

0942104007
ref: 14

KEY

€ 0.00

15-1

1211142A03
ref: 15-1
12111-42A11-0F0

PISTON (66.00MM)

€ 31.50

15-2

1211142A100F0
ref: 15-2
12111-42A11-0F0

PISTON

€ 31.50

16-1

1214019B10
ref: 16-1

RING SET,PISTON

€ 56.00

16-2

1214042A00
ref: 16-2
12140-42A01

RING SET, PISTON (STD)

€ 41.00

16-3

1214019B10050
ref: 16-3

RING SET,PISTON(OS:0.50)

€ 56.00

16-3

1214019B10050
ref: 16-3

RING SET,PISTON(OS:0.50)

€ 56.00

17

1215122A02
ref: 17

PIN,PISTON

€ 8.00

18

0938116001
ref: 18

RING,SNAP 16MM

€ 1.50

19

1210042A00050
ref: 19
12100-42A32-050

PISTON SET (OS:0.5)

€ 89.00

19

1210042A00050
ref: 19
12100-42A32-050

PISTON SET (OS:0.5)

€ 89.00

all assemblies
