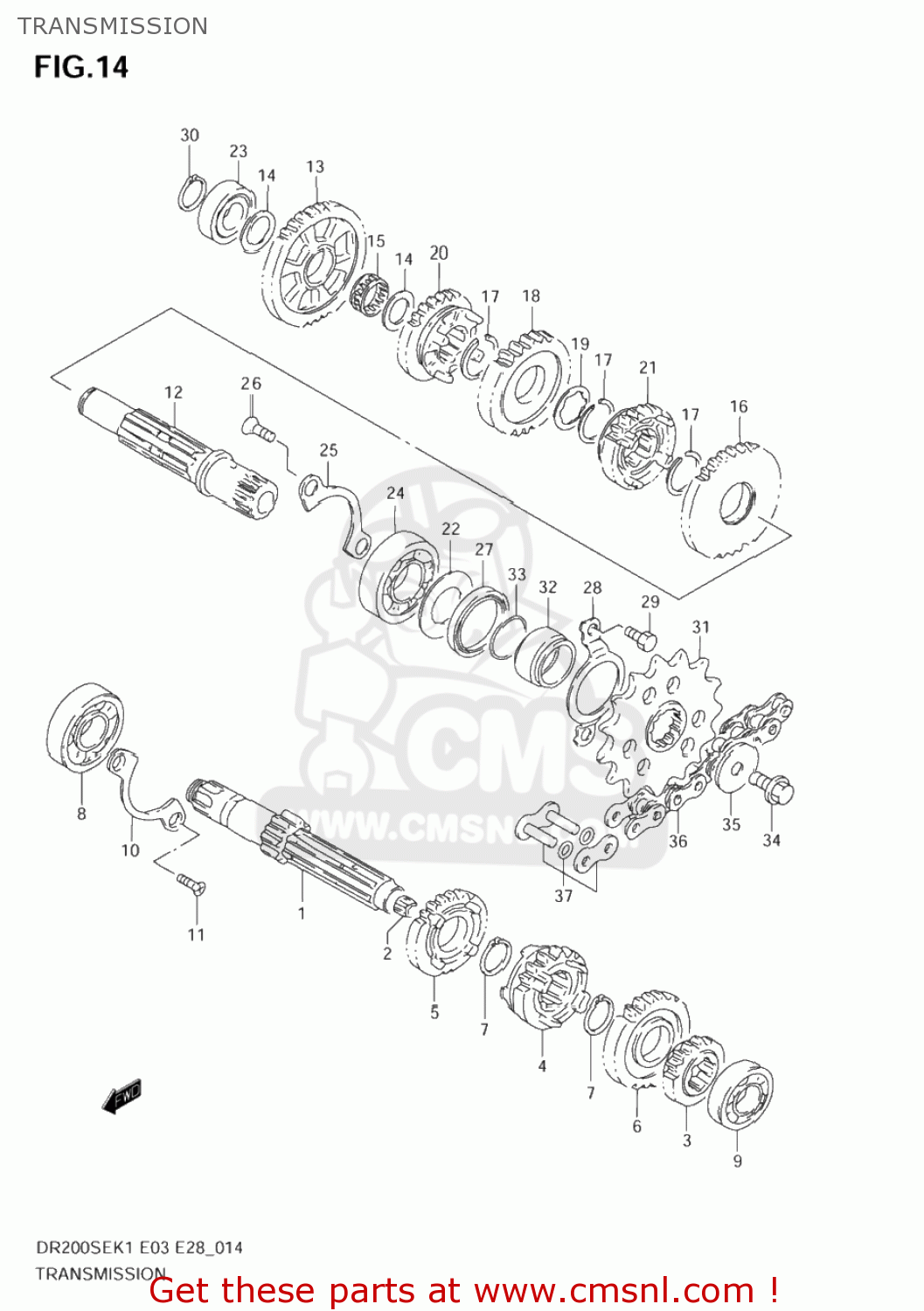

TRANSMISSION

ref

part #

description

quantity

1

2412042A01
ref: 1

SHAFT,COUNTER(NT:11)

€ 246.50

2

2412538201
ref: 2

BUSH

€ 3.50

3

2422142A02
ref: 3

GEAR,2ND DRIVE

€ 56.00

4

2423142A03
ref: 4

GEAR,3RD DRIVE(NT:16)

€ 66.00

5

2424142A00
ref: 5

GEAR,4TH DRIVE

€ 51.50

6

2425142A03
ref: 6
24251-42A10

GEAR,FIFTH DRIVE

€ 57.50

7

0938020009
ref: 7

CIRCLIP

€ 2.00

8

0926220069
ref: 8

BEARING(20X47X14)

€ 28.00

9

0812360027
ref: 9

BEARING

€ 16.00

10

2474105200
ref: 10

RETAINER,DRIVE SHAFT BEARING

€ 3.50

11

0212206123
ref: 11
02122-0612A

SCREW

€ 3.00

12

2413042A20
ref: 12

SHAFT,DRIVE

€ 0.00

13

2431142A00
ref: 13

GEAR,1ST DRIVEN

€ 59.50

14

0918117167
ref: 14

SHIM(17X26X1)

€ 3.00

15

0926317004
ref: 15

BEARING(17X21X9.8)

€ 7.00

16

2432042A03
ref: 16

GEAR,2ND DRIVEN(NT:29)

€ 49.00

17

0938022006
ref: 17

CIRCLIP

€ 3.00

18

2433142A02
ref: 18

GEAR,3RD DRIVEN(NT:23)

€ 50.50

19

0916722011
ref: 19

WASHER,LOCK

€ 3.00

20

2434142A02
ref: 20

GEAR,4TH DRIVEN(NT:23)

€ 73.50

21

2435142A02
ref: 21

GEAR,5TH DRIVEN

€ 49.00

22

2435942A00
ref: 22

WASHER,OIL SEALING

€ 3.00

23

0926417001
ref: 23

BEARING(17X36X12)

€ 27.00

24

0926222018
ref: 24

BEARING(22X50X14)

€ 17.50

25

2474105200
ref: 25

RETAINER,DRIVE SHAFT BEARING

€ 3.50

26

0212206123
ref: 26
02122-0612A

SCREW

€ 3.00

27

0928330053
ref: 27

SEAL,OIL(30X40X6)

€ 8.00

28

2475142A10
ref: 28

RETAINER,DRIVE SHAFT OIL SEAL

€ 2.50

29

0150006103
ref: 29
01500-0610B

BOLT

€ 2.00

30

0833131176
ref: 30
08331-3117A

CIRCLIP,17MM

€ 2.00

31

2751042A10
ref: 31

SPROCKET,ENGINE

€ 26.00

32

2753142A00
ref: 32

SPACER,ENGINE SPROCKET

€ 12.00

33

0928021008
ref: 33

O RING(D:2.5,ID:21)

€ 2.00

34

0155008123
ref: 34
01550-0812A

BOLT

€ 3.50

35

0821108283
ref: 35

WASHER

€ 2.50

36

2760014A10112
ref: 36

CHAIN(DID520VC5,112LE)

€ 110.50

37

2762014A10
ref: 37

JOINT SET,CHAIN

€ 7.50
