FUEL TANK (MODEL S)
DR250SE 1993 (P) USA (E03)

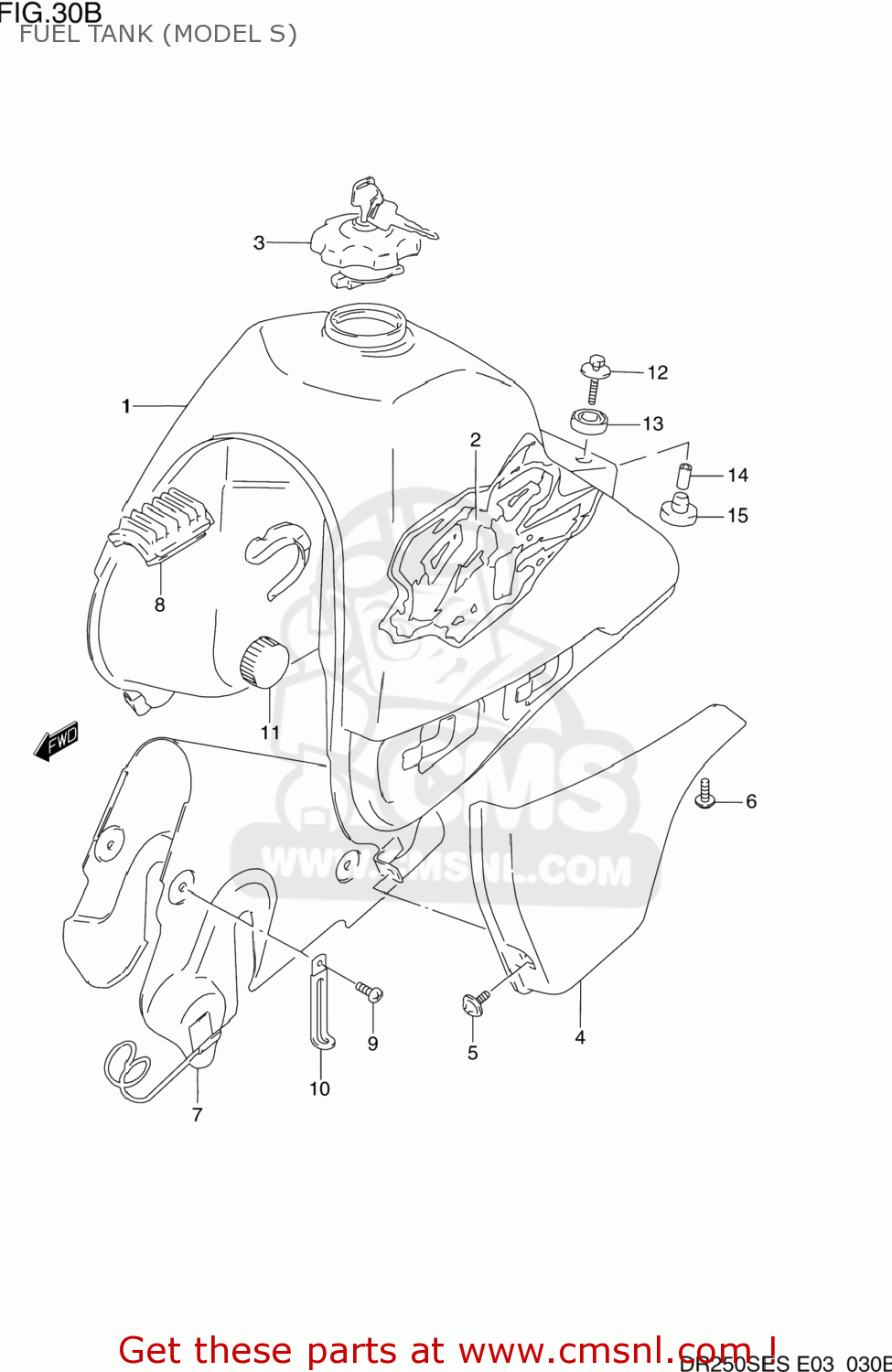

Fuel tank (model s) diagram DR250SE 1993 (P) USA (E03)
FUEL TANK (MODEL S) DR250SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4410014EL028X
ref: 1-1
TANK ASSEMBLY,FUEL
€ 0.00
1-2
4410014EK028X
ref: 1-2
TANK ASSEMBLY,FUEL
€ 0.00
2
6812014E00D1R
ref: 2
EMBLEM SET,FUEL TANK
€ 47.00
3-1
4420003811
ref: 3-1
CAP SET,FUEL TANK
€ 90.50
3-2
4420005820
ref: 3-2
CAP SET,FUEL TANK
€ 103.50
4-1
4417115D0030H
ref: 4-1
COVER,FUEL TANK,R
€ 20.50
4-2
4418115D0030H
ref: 4-2
COVER,FUEL TANK,L
€ 18.50
5
0214206107
ref: 5
SCREW
€ 2.00
6
0913606002
ref: 6
SCREW(6X12)
€ 2.50
7-1
4913114D20
ref: 7-1
SHIELD,FUEL TANK
€ 26.50
7-2
4913015D30
ref: 7-2
SHIELD COMP,FUEL TANK
€ 32.50
8
4454115D01
ref: 8
CUSHION,FUEL TANK FR UPR
€ 18.50
9
0156005103
ref: 9
BOLT
€ 0.00
10
0940406202
ref: 10
09404-06432
CLAMP
€ 2.50
11
0932910016
ref: 11
CUSHION
€ 3.00
12
0911606172
ref: 12
BOLT(6X30)
€ 2.50
13
0932014013
ref: 13
CUSHION
€ 3.00
14
0918006072
ref: 14
09180-06271
SPACER
€ 2.00
15
0932010020
ref: 15
CUSHION
€ 4.00
