OIL PUMP
DR250SE 1993 (P) USA (E03)

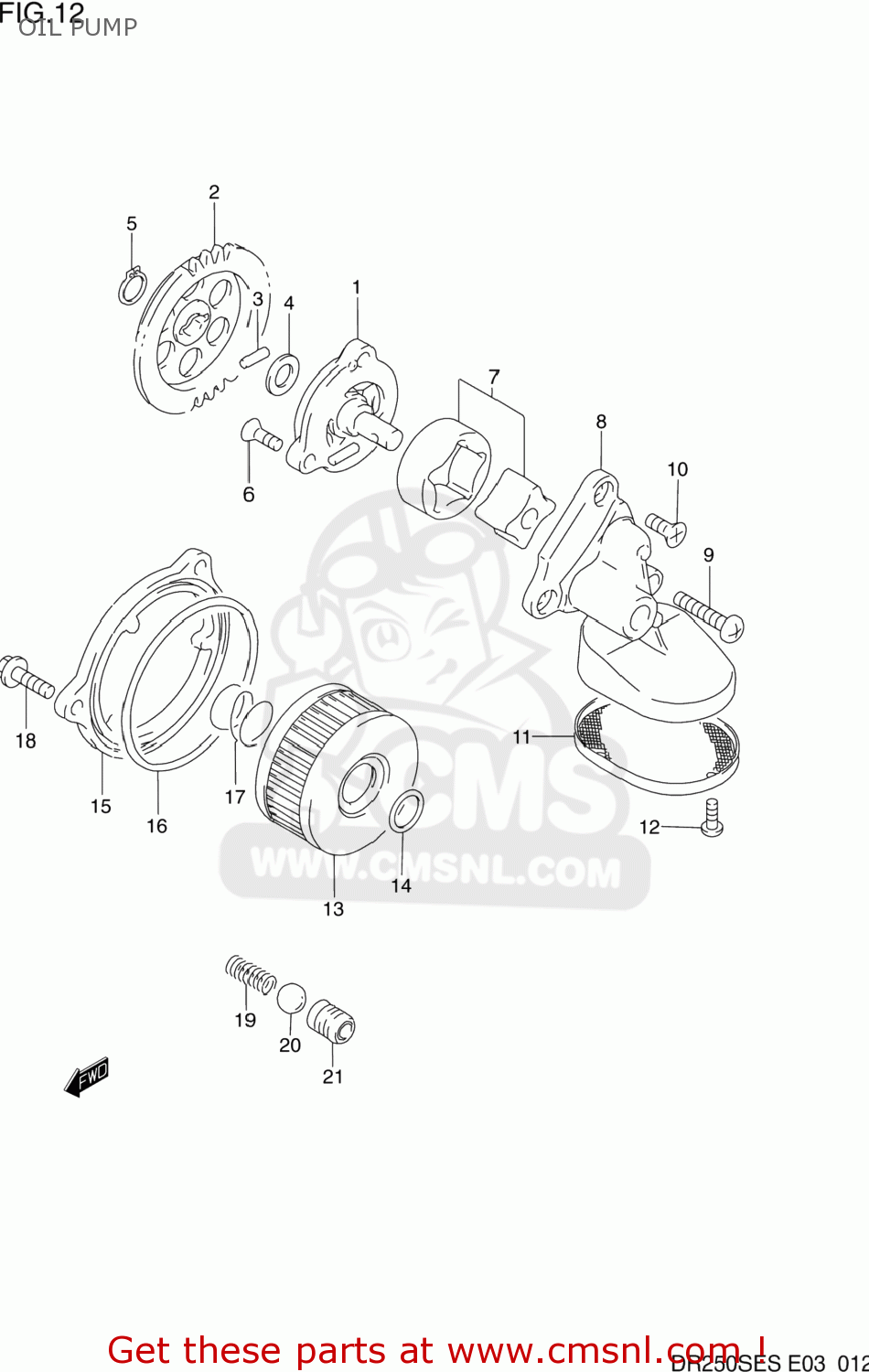

Oil pump diagram DR250SE 1993 (P) USA (E03)
OIL PUMP DR250SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1640014D01
ref: 1
PUMP ASSY,ENGINE OIL NO.1
€ 164.50
2-1
1633114D00
ref: 2-1
16331-14D02
GEAR,OIL PUMP DRIVEN
€ 30.00
2-2
1633114D01
ref: 2-2
16331-14D02
GEAR,OIL PUMP DRIVEN (N
€ 30.00
3
0926104009
ref: 3
PIN(4X15.8)
€ 1.50
4
0822110185
ref: 4
SHIM
€ 2.00
5
0833131106
ref: 5
08331-3110A
CIRCLIP,10MM
€ 2.00
6-1
0212206166
ref: 6-1
02122-0616A
SCREW M6X1X16
€ 2.00
6-2
0212206163
ref: 6-2
02122-0616A
SCREW ,6X16
€ 2.00
7
1641014D00
ref: 7
ROTOR SET,OIL PUMP,NO.2
€ 45.00
8
1643114D01
ref: 8
COVER,OIL PUMP NO.2
€ 73.50
9-1
0211206306
ref: 9-1
02112-0630A
SCREW,6X30
€ 2.50
9-2
0211206303
ref: 9-2
02112-0630A
SCREW 6X30
€ 2.50
10-1
0212206166
ref: 10-1
02122-0616A
SCREW M6X1X16
€ 2.00
10-2
0212206163
ref: 10-2
02122-0616A
SCREW ,6X16
€ 2.00
11
1652014D00
ref: 11
STRAINER,OIL PUMP NO.2
€ 11.00
12-1
0211205106
ref: 12-1
02112-0510A
SCREW 5X10
€ 2.00
12-2
0211205103
ref: 12-2
02112-0510A
SCREW
€ 2.00
13
1651038240
ref: 13
FILTER ASSY,ENGINE OIL
€ 7.50
14-1
0928016005
ref: 14-1
O RING(D:2.4,ID:15.8)
€ 1.50
14-2
0928015007
ref: 14-2
O RING(D:2.4,ID:15.8)
€ 2.00
15
1651214D00
ref: 15
CAP,OIL FILTER
€ 23.50
16
0928072001
ref: 16
O RING(D:2.4,ID:73)
€ 5.00
17-1
0944021004
ref: 17-1
SPRING
€ 13.00
17-2
0944021006
ref: 17-2
SPRING
€ 2.50
18-1
0154706207
ref: 18-1
BOLT
€ 2.50
18-2
0154706203
ref: 18-2
01547-0620B
SCREW
€ 2.50
19
0944007073
ref: 19
SPRING
€ 4.00
20
0611112004
ref: 20
BALL
€ 1.50
21
1644214D00
ref: 21
SEAT,OIL CHECK VALVE
€ 28.50
