STARTING MOTOR (MODEL P/R/S)
DR250SE 1993 (P) USA (E03)

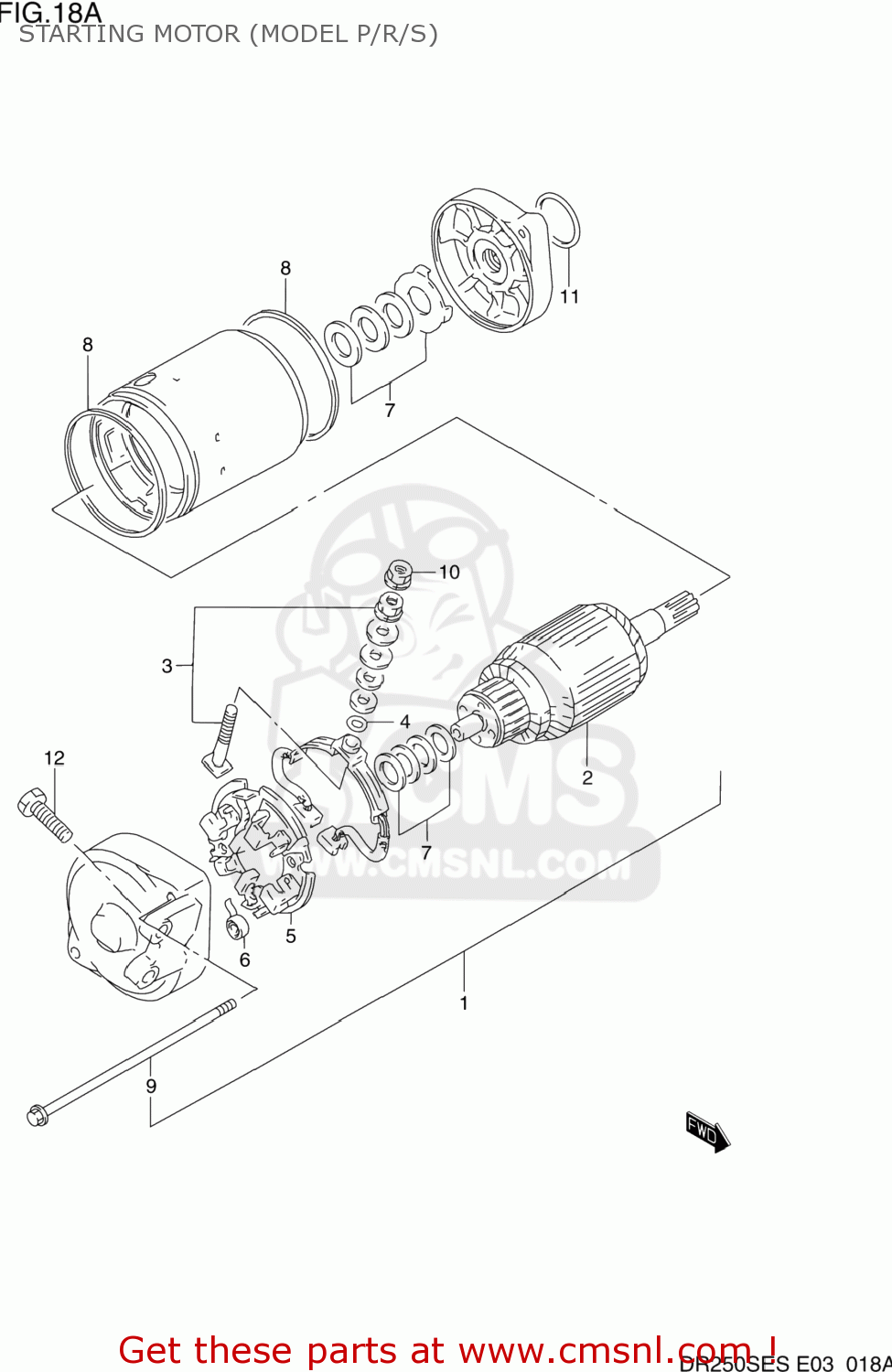

Starting motor (model p/r/s) diagram DR250SE 1993 (P) USA (E03)
STARTING MOTOR (MODEL P/R/S) DR250SE 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110047D00
ref: 1-1
31100-47D01
MOTOR ASSEMBLY,STARTING
€ 472.50
1-2
3110047D01
ref: 1-2
MOTOR ASSY,STARTING
€ 472.50
2
3131015D00
ref: 2
ARMATURE
€ 145.00
3
3113038B00
ref: 3
TERMINAL SET,BRUSH
€ 45.00
4
3114349040
ref: 4
O RING
€ 3.00
5
3113238B00
ref: 5
HOLDER SET,BRUSH
€ 45.00
6
3113538B00
ref: 6
SPRING,BRUSH
€ 3.50
7
3117019B10
ref: 7
SHIM SET,STARTING MOTOR
€ 8.00
8
3126431300
ref: 8
31264-32E00
O RING
€ 7.50
9
3128026D00
ref: 9
BOLT
€ 12.50
10
0836135066
ref: 10
08361-3506A
NUT
€ 2.00
11
0928024003
ref: 11
O RING(D:3,ID:24.5)
€ 2.00
12-1
0713006205
ref: 12-1
07130-0620B
BOLT
€ 3.00
12-2
0713006203
ref: 12-2
07130-0620B
BOLT,CRKCASE,R
€ 3.00
