CAM CHAIN
DR250SE 1994 (R) USA (E03)

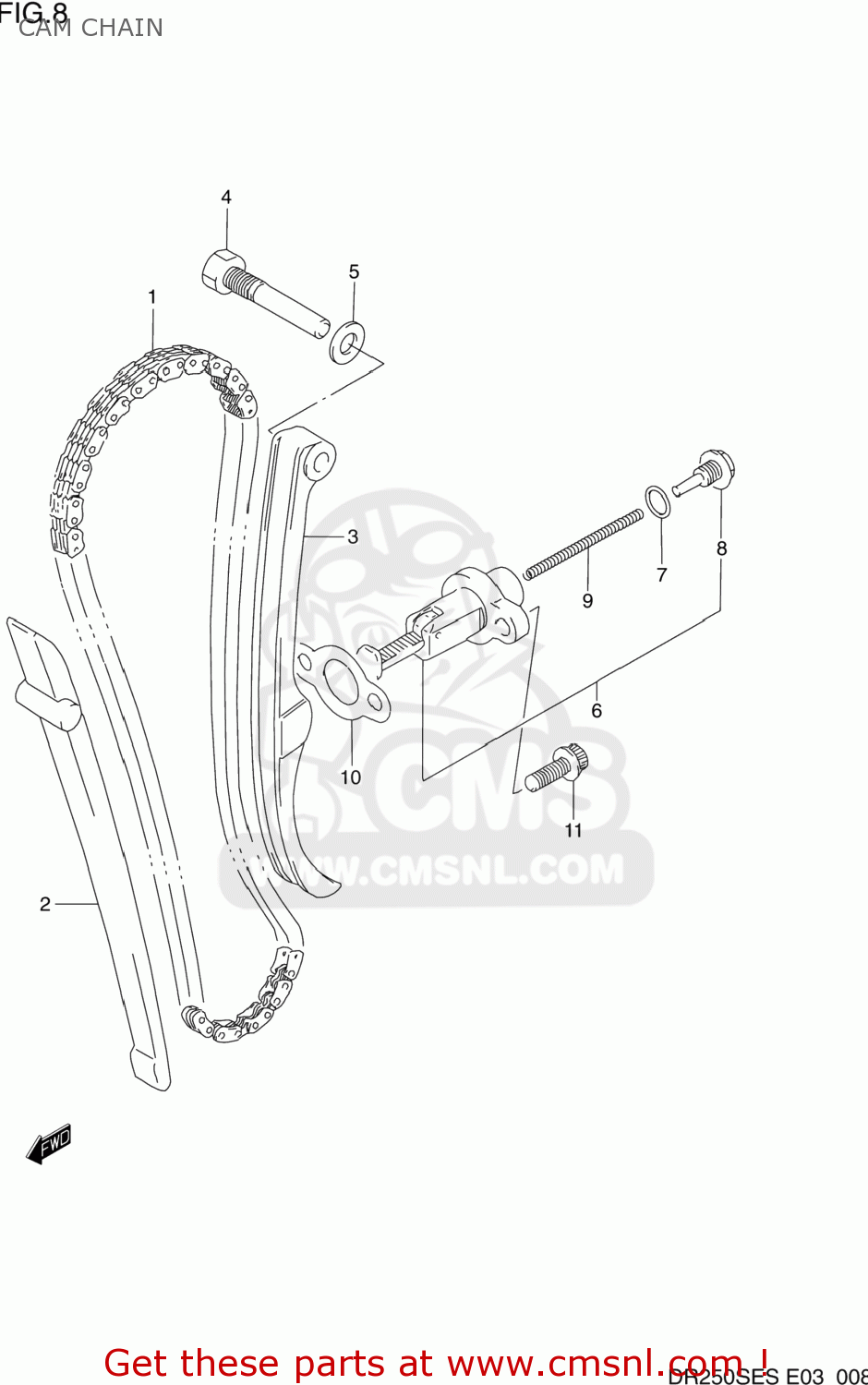

Cam chain diagram DR250SE 1994 (R) USA (E03)
CAM CHAIN DR250SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276019B71
ref: 1
CHAIN,CAMSHAFT DRIVE
€ 59.50
2
1277114D00
ref: 2
GUIDE,CAM CHAIN
€ 34.50
3
1281114D00
ref: 3
TENSIONER,CAM CHAIN
€ 30.00
4
1281232410
ref: 4
BOLT,CAM CHAIN TENSIONER
€ 3.50
5
0916808008
ref: 5
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
6
1283029B11
ref: 6
ADJUSTER ASSY,TENSIONER
€ 72.50
7
1283202A00
ref: 7
O RING
€ 2.00
8
1283426B00
ref: 8
PLUG,ADJUSTER
€ 8.00
9
1283329B00
ref: 9
SPRING
€ 2.50
10-1
1283714D00
ref: 10-1
12837-19B10
GASKET,TENSIONER ADJUSTER(NA) (NAS)
€ 3.00
10-2
1283719B10
ref: 10-2
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.00
11-1
0712006205
ref: 11-1
07120-0620B
PLUG ,6X20
€ 3.50
11-2
0712006203
ref: 11-2
07120-0620B
BOLT
€ 3.50
