CARBURETOR (MODEL L/M)
DR250SE 1994 (R) USA (E03)

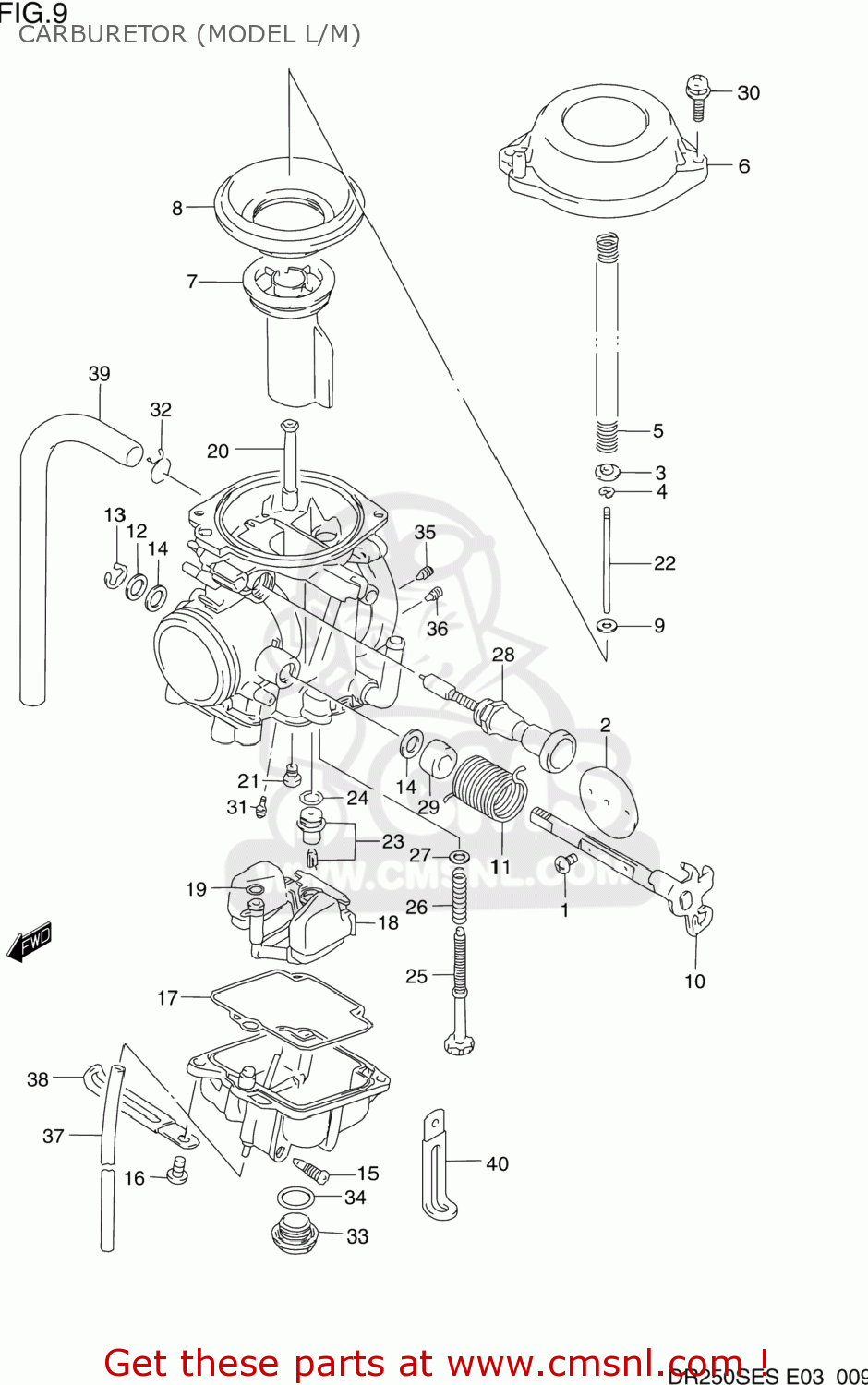

Carburetor (model l/m) diagram DR250SE 1994 (R) USA (E03)
CARBURETOR (MODEL L/M) DR250SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320015D10
ref:
CARBURETOR ASSEMBLY
€ 226.00
1320015D30
ref:
CARBURETOR ASSEMBLY
€ 257.50
1
1360442A00
ref: 1
13604-44080
SCREW
€ 3.50
2
1355145B00
ref: 2
VALVE,THROTTLE (115)
€ 21.00
3
1338242A00
ref: 3
RING
€ 3.50
4
1339401D00
ref: 4
E RING
€ 4.50
5
1341744B00
ref: 5
SPRING
€ 6.00
6
1350245B00
ref: 6
13502-44B00
COVER,DIAPHRAGM
€ 36.00
7
1355144B10
ref: 7
VALVE PISTON
€ 74.50
8
1350744B00
ref: 8
DIAPHRAGM
€ 29.00
9
1338747010
ref: 9
RING
€ 7.50
10
1355014D10
ref: 10
SHAFT ASSEMBLY
€ 50.00
11
1357314D10
ref: 11
SPRING
€ 7.00
12
1355747070
ref: 12
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
13
1361744080
ref: 13
E RING
€ 3.50
14
1355644B00
ref: 14
SEAL
€ 3.50
15-1
1324713A00
ref: 15-1
13247-02340
SCREW,DRAIN
€ 5.50
15-2
1324702340
ref: 15-2
PLUG,DRAIN
€ 5.50
16
1360205128
ref: 16
02112-05127
SCREW
€ 2.50
17
1325844B00
ref: 17
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
18
1324014D30
ref: 18
FLOAT ASSY
€ 46.50
19
1337446710
ref: 19
O RING
€ 4.50
20
0949400691
ref: 20
09494-00883
JET,NEEDLE (O-6)
€ 40.50
21
0949126011
ref: 21
JET,MAIN(130)
€ 11.50
22
1338314D20
ref: 22
NEEDLE,JET
€ 12.50
23
1337044B00
ref: 23
13370-02D00
VALVE ASSEMBLY,NEEDLE
€ 46.50
24
1337444080
ref: 24
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
25
1326714D10
ref: 25
SCREW,ADJUSTER
€ 22.50
26
1337514D10
ref: 26
SPRING
€ 6.50
27
1342738300
ref: 27
WASHER
€ 1.50
28
1341114D10
ref: 28
PLUNGER ASSY
€ 37.50
29
1357428A00
ref: 29
RING
€ 4.50
30
1360234390
ref: 30
02112-7516A
SCREW
€ 2.50
31
0949240014
ref: 31
JET(40)
€ 8.50
32
1367148B10
ref: 32
09401-10401
CLIP
€ 1.50
33
1324732210
ref: 33
SCREW,GUIDE
€ 13.00
34
1324941310
ref: 34
O RING,DRAIN PLUG
€ 5.00
35
0949328006
ref: 35
JET,PILOT AIR,1.4
€ 15.50
36
0949360004
ref: 36
JET,AIR(0.6)
€ 11.00
37
1368336A00
ref: 37
09352-30503-600
HOSE
€ 8.00
38
1367105A20
ref: 38
09404-06433
CLIP
€ 3.00
39
1368343410
ref: 39
09352-70113-600
HOSE
€ 17.50
40
0940406401
ref: 40
09404-06432
CLAMP L:35
€ 2.50
