SPEEDOMETER
DR250SE 1994 (R) USA (E03)

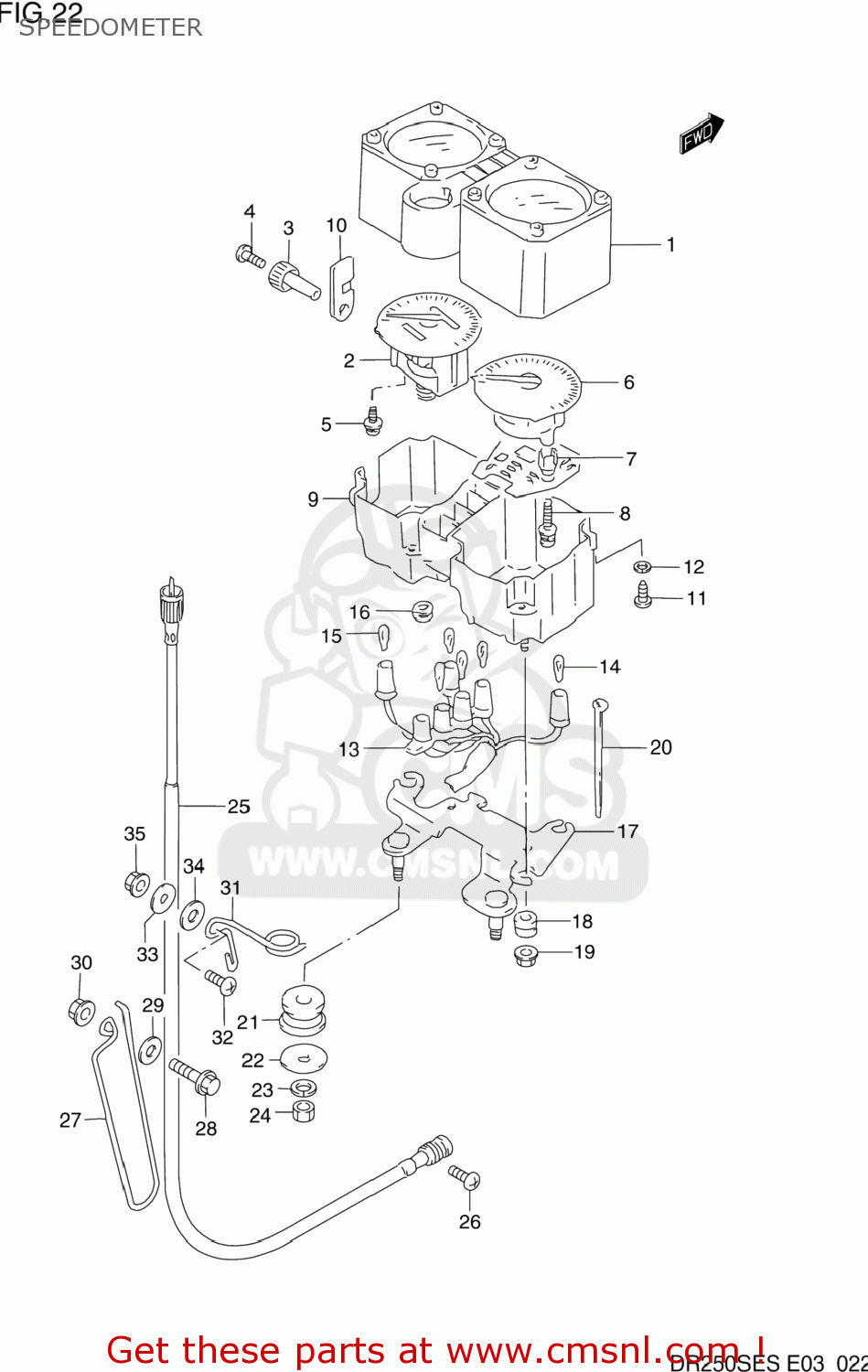

Speedometer diagram DR250SE 1994 (R) USA (E03)
SPEEDOMETER DR250SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3415044B40
ref: 1
34150-14D20
HOOD,METER
€ 99.50
2
3411014D00
ref: 2
SPEEDOMETER(MILE/KILO)
€ 359.00
3
3412444B30
ref: 3
KNOB,TRIP
€ 7.00
4
3418412D00
ref: 4
SCREW,TRIP KNOB
€ 2.00
5-1
0211273106
ref: 5-1
02112-73103
SCREW
€ 1.50
5-2
0211273103
ref: 5-2
SCREW
€ 1.50
6-1
3421015D00
ref: 6-1
34210-15D40
TACHOMETER
€ 226.50
6-2
3421015D40
ref: 6-2
TACHOMETER
€ 226.50
7
3418714A00
ref: 7
SPACER
€ 4.50
8-1
3428314A00
ref: 8-1
02112-74253
SCREW
€ 2.00
8-2
0211274253
ref: 8-2
SCREW
€ 2.00
9
3411144B10
ref: 9
CASE,METER
€ 54.00
10
3419614A00
ref: 10
CUSHION,METER
€ 11.50
11-1
0311205129
ref: 11-1
03111-0512A
SCREW
€ 1.50
11-2
0311205123
ref: 11-2
03111-0512A
SCREW
€ 1.50
12-1
0832121057
ref: 12-1
08321-0105A
LOCK WASHER
€ 2.00
12-2
0832101057
ref: 12-2
08321-0105A
WASHER,LOCK
€ 2.00
13
3417014D00
ref: 13
34170-44B11
SOCKET,METER
€ 78.00
14
0947112085
ref: 14
BULB(12V3W,WB371,T7)
€ 3.00
15
0947112100
ref: 15
BULB(12V1.7W,WB372,T7)
€ 2.00
16
3419414A00
ref: 16
CAP
€ 8.00
17
3495014D00
ref: 17
BRACKET
€ 99.50
18
3499643410
ref: 18
CUSHION,METER
€ 3.00
19
3418514A00
ref: 19
08310-0005A
NUT
€ 5.50
20
0940410404
ref: 20
09404-10417
CLAMP
€ 2.50
21
3495631001
ref: 21
CUSHION,METER BRACKET
€ 4.50
22
0916008057
ref: 22
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
23-1
0832121084
ref: 23-1
08321-0108A
WASHER,LOCK,8.
€ 2.50
23-2
0832101083
ref: 23-2
08321-0108A
LOCK WASHER
€ 2.50
23-3
0916208008
ref: 23-3
WASHER,LOCK
€ 2.00
24-1
0831012085
ref: 24-1
08310-0008A
NUT ,8MM
€ 1.50
24-2
0831000083
ref: 24-2
08310-0008A
NUT
€ 1.50
25-1
3491014D11
ref: 25-1
34910-12E00
CABLE ASSEMBLY,SPEEDOMETER
€ 40.50
25-2
3491014D12
ref: 25-2
34910-12E00
CABLE ASSEMBLY,SPEEDOMETER
€ 40.50
26-1
0211205164
ref: 26-1
SCREW
€ 2.00
26-2
0211205163
ref: 26-2
02112-0516A
SCREW
€ 2.00
27
3493814D30
ref: 27
GUIDE,METER CABLE NO.2
€ 8.00
28-1
0151706207
ref: 28-1
01550-06207
BOLT 6X20
€ 2.50
28-2
0155006203
ref: 28-2
01550-0620A
BOLT
€ 2.50
29
0916006066
ref: 29
WASHER(6.5X20X1.6)
€ 2.00
30-1
0915906017
ref: 30-1
08319-31067
NUT
€ 2.50
30-2
0831610063
ref: 30-2
08316-1006B
NUT
€ 2.50
31
3493814D20
ref: 31
34938-14D21
GUIDE,METER CABLE NO.3
€ 6.50
32-1
0214206167
ref: 32-1
SCREW
€ 2.00
32-2
0214206163
ref: 32-2
02142-0616A
SCREW
€ 2.50
33
0916006057
ref: 33
09160-06109
WASHER
€ 2.00
34
0916906053
ref: 34
WASHER
€ 2.00
35-1
0831011068
ref: 35-1
08310-00067
NUT
€ 2.50
35-2
0831000063
ref: 35-2
08310-0006A
NUT 6MM
€ 2.00
