FUEL COCK

DR350 1990 (L) USA (E03)

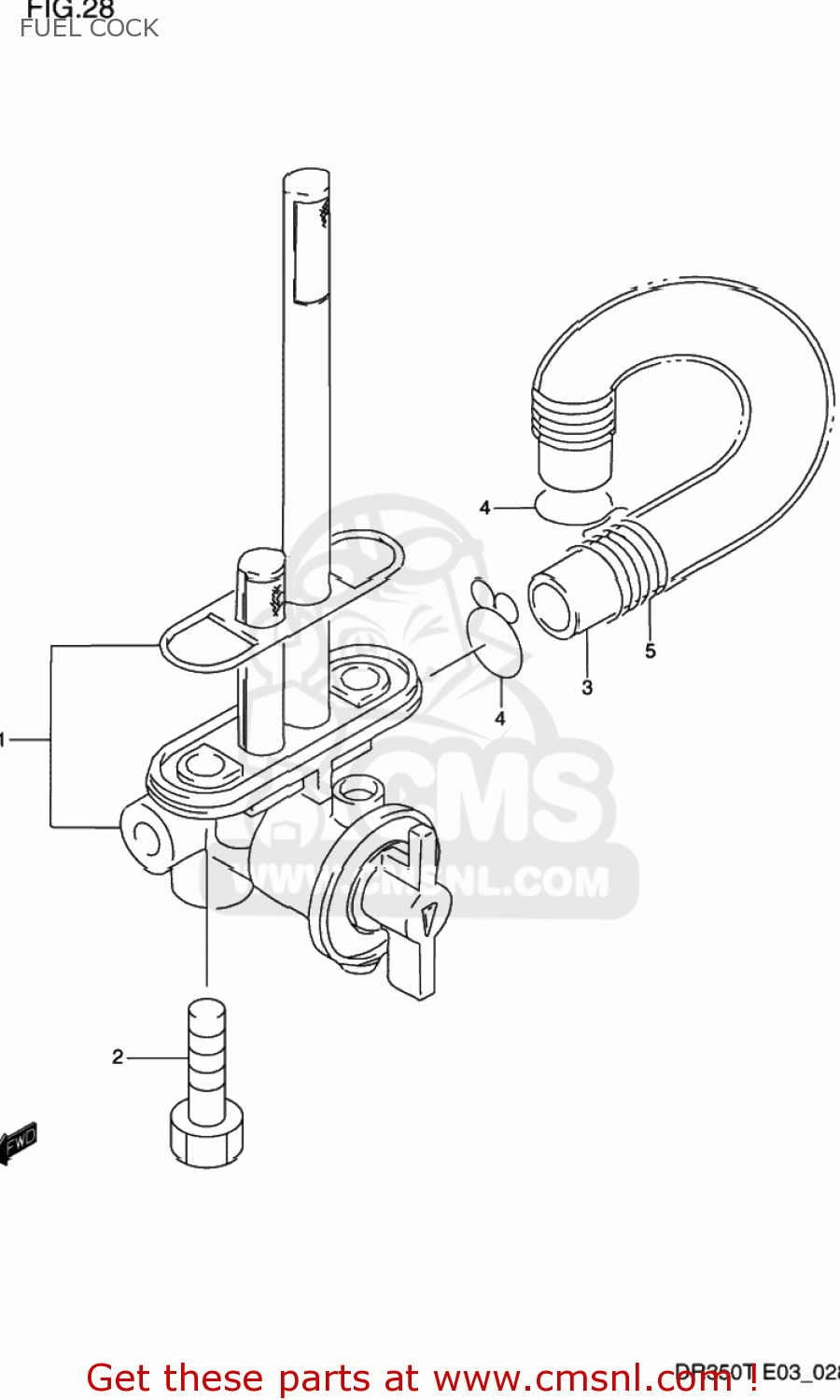

Fuel cock diagram DR350 1990 (L) USA (E03)

FUEL COCK DR350 1990 (L) USA (E03)

FUEL COCK DR350 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4430014D00
ref: 1

COCK ASSY,FUEL

€ 81.00

2-1

0211236167
ref: 2-1

SCREW

€ 2.00

2-2

0211236163
ref: 2-2
02112-3616A

SCREW

€ 2.50

3

0935270103600
ref: 3

HOSE(7X10.2X600)

€ 8.00

4

0940110401
ref: 4

CLIP

€ 1.50

5

0944013031
ref: 5
09440-13031-XC0

SPRING

€ 2.50
