OIL HOSE
DR350 1990 (L) USA (E03)

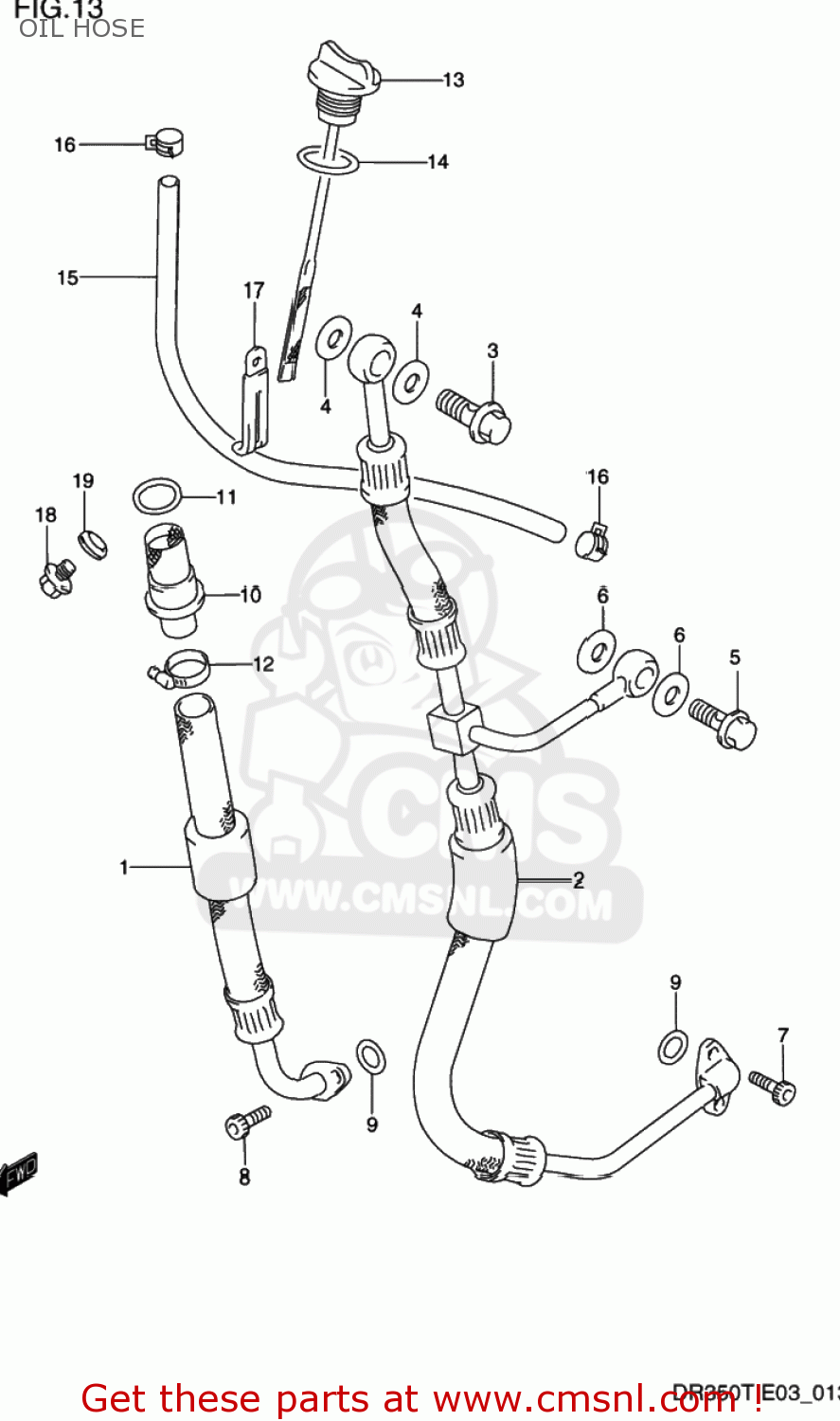

Oil hose diagram DR350 1990 (L) USA (E03)
OIL HOSE DR350 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1646014D02
ref: 1-1
16460-14D03
HOSE,OIL
€ 78.00
1-2
1646014D03
ref: 1-2
HOSE,OIL TANK INLET
€ 78.00
2-1
1647014D02
ref: 2-1
16470-14D51
HOSE,OIL
€ 341.50
2-2
1647014D03
ref: 2-2
16470-14D51
HOSE,OIL
€ 341.50
2-3
1647014D51
ref: 2-3
HOSE,OIL TANK
€ 341.50
3
0936016002
ref: 3
BOLT UNION
€ 12.00
4
0916816003
ref: 4
GASKET(16X22X2) (NAS)
€ 2.00
5-1
0936012009
ref: 5-1
09360-12008
BOLT UNION
€ 7.50
5-2
0936012010
ref: 5-2
09360-12008
BOLT UNION
€ 7.50
6-1
0916812010
ref: 6-1
GASKET(12X16.5X1.5) (NAS)
€ 7.00
6-2
0916812017
ref: 6-2
GASKET(12X17X1) (NAS)
€ 2.00
7-1
0711006165
ref: 7-1
07130-0616B
BOLT
€ 3.00
7-2
0713006163
ref: 7-2
07130-0616B
BOLT,OIL FILLE
€ 3.00
8-1
0711006205
ref: 8-1
07130-0620B
BOLT
€ 3.00
8-2
0713006203
ref: 8-2
07130-0620B
BOLT,CRKCASE,R
€ 3.00
9
0928012008
ref: 9
O RING(D:2.4,ID:12.3)
€ 3.00
10
1655014D02
ref: 10
STRAINER,FRAME HEAD UNDER
€ 58.00
11
0928022008
ref: 11
O RING(D:3.1,ID:22.7)
€ 2.50
12-1
0940222502
ref: 12-1
09402-22511
CLAMP
€ 6.00
12-2
0940222511
ref: 12-2
CLAMP
€ 6.00
13
1656014D01
ref: 13
GAUGE ASSY,OIL LEVEL
€ 26.00
14
0928017003
ref: 14
O RING(D:3.1,ID:16.8)
€ 2.00
15-1
1648014D00
ref: 15-1
16480-47D00
HOSE,OIL COOLER,UPPER
€ 30.00
15-2
1648047D00
ref: 15-2
HOSE,OIL OVER FLOW
€ 30.00
16-1
0940112406
ref: 16-1
09401-11415
CLAMP
€ 2.50
16-2
0940111407
ref: 16-2
09401-11415
CLIP
€ 2.50
17-1
0940406412
ref: 17-1
09404-06432
CLAMP
€ 2.50
17-2
0940406402
ref: 17-2
09404-06432
CLAMP
€ 2.50
17-3
0940406429
ref: 17-3
CLAMP(L:45)
€ 2.50
18-1
0924710001
ref: 18-1
PLUG
€ 3.00
18-2
0924710008
ref: 18-2
PLUG(10X12)
€ 3.00
19
0916810002
ref: 19
GASKET(10X14X3.6) (NAS)
€ 2.00
