TAIL LAMP
DR350 1990 (L) USA (E03)

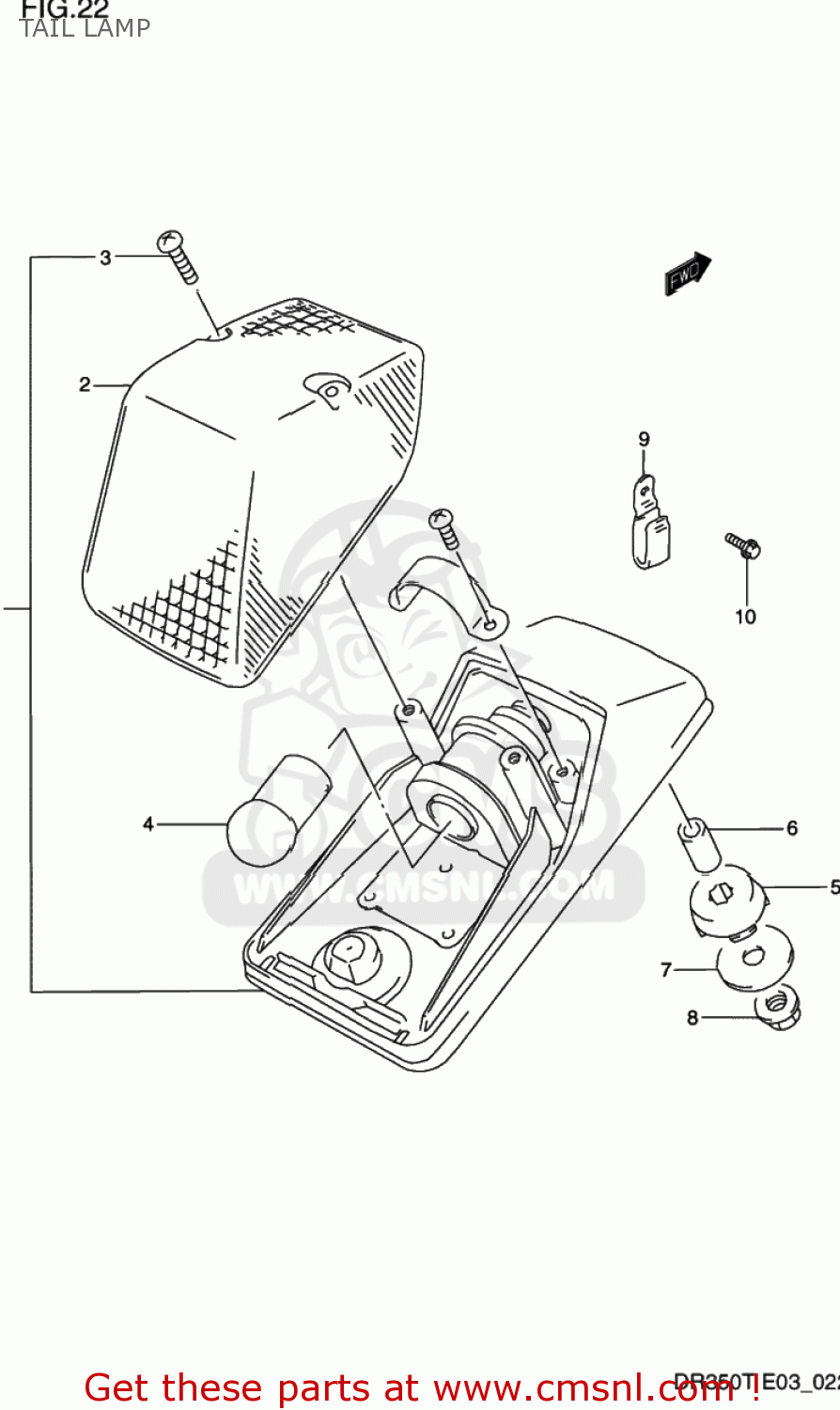

Tail lamp diagram DR350 1990 (L) USA (E03)
TAIL LAMP DR350 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3571014D00
ref: 1
LAMP ASSY,TAIL
€ 62.50
2
3571203D00
ref: 2
LENS
€ 18.50
3
0351104163
ref: 3
03511-0416A
SCREW
€ 1.50
4
0947112140
ref: 4
09471-12058
BULB(12V5W,BF150-40160A)
€ 4.00
5
0932009010
ref: 5
CUSHION
€ 2.50
6
0918006121
ref: 6
SPACER(6.4X9.2X12)
€ 2.50
7-1
0916006060
ref: 7-1
09160-06077
WASHER
€ 2.00
7-2
0916006077
ref: 7-2
WASHER(6.5X20X1.2)
€ 2.00
8-1
0831610063
ref: 8-1
08316-1006B
NUT
€ 2.50
8-2
0831000063
ref: 8-2
08310-0006A
NUT 6MM
€ 2.00
9
0940306408
ref: 9
CLAMP
€ 2.50
10
0354104123
ref: 10
03541-0412A
SCREW
€ 1.50
