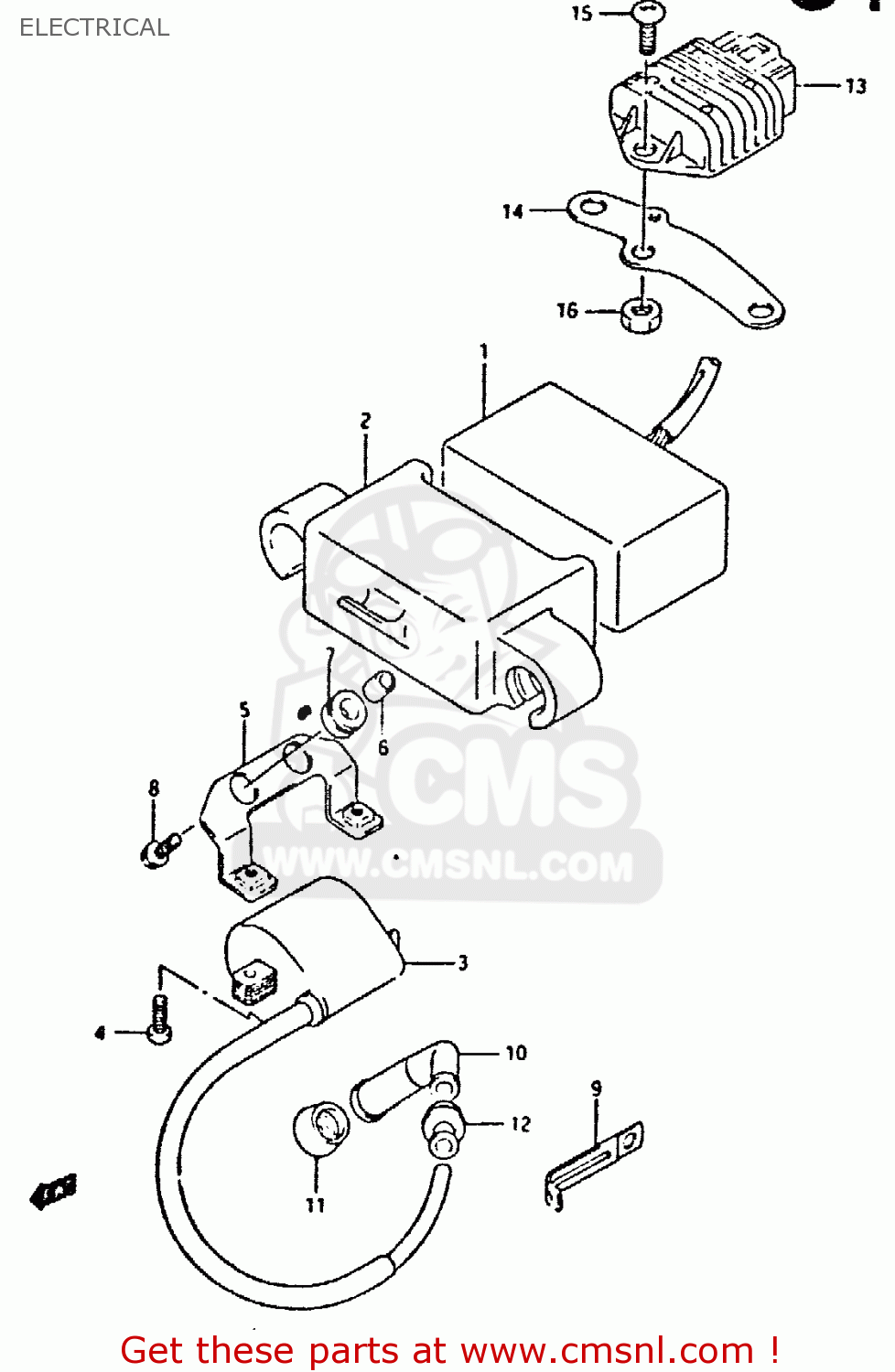

ELECTRICAL

ref

part #

description

quantity

1-1

3290014D00
ref: 1-1
MODEL L/M/N

CDI UNIT

€ 464.00

1-2

3290014D30
ref: 1-2
MODEL P/R/S/T

CDI UNIT

€ 526.50

2

3298014D00
ref: 2

CUSHION,CDI UNIT

€ 15.50

3

3341014D00
ref: 3

COIL ASSY,IGNITION

€ 101.00

4-1

0211206206
ref: 4-1
MODEL L/M/N/P

SCREW

€ 2.00

4-2

0211206203
ref: 4-2
MODEL R/S/T

SCREW, 6X20

€ 2.00

5

3341614D00
ref: 5

BRACKET,IGNITION COIL

€ 7.00

6

0918006027
ref: 6

SPACER (6.3X9.1X6.7)

€ 3.00

7

0932009036
ref: 7

CUSHION

€ 4.00

8-1

0111406166
ref: 8-1
MODEL L/M/N/P

BOLT

€ 2.50

8-2

0150006163
ref: 8-2
MODEL R

BOLT

€ 2.00

8-3

0156006163
ref: 8-3
MODEL S/T

BOLT

€ 2.00

9

0940406429
ref: 9
<09404-06422

CLAMP(L:45)

€ 2.50

10

3351043010
ref: 10

CAP,SPARK PLUG

€ 11.50

11-1

3354124510
ref: 11-1
MODEL L/M/N/P

SEAL,SPARK PLUG CAP

€ 7.00

11-2

3354147D00
ref: 11-2
MODEL R/S/T

SEAL,SPARK PLUG

€ 7.00

12

3354238B00
ref: 12

SEAL,HIGH TENSION CORD

€ 4.50

13

3250014D00
ref: 13

REGULATOR ASSY

€ 99.00

14

3251114D00
ref: 14

BRACKET,REGULATOR

€ 0.00

15-1

0214206126
ref: 15-1
MODEL L/M/N/P

SCREW

€ 2.00

15-2

0214206123
ref: 15-2
MODLE R/S/T

SCREW 6X12

€ 2.00

16-1

0831012066
ref: 16-1
MODEL L/M/N/P

NUT

€ 2.00

16-2

0831000063
ref: 16-2
MODEL R/S/T

NUT 6MM

€ 2.00

all assemblies
