FRAME
DR350 1991 (M)

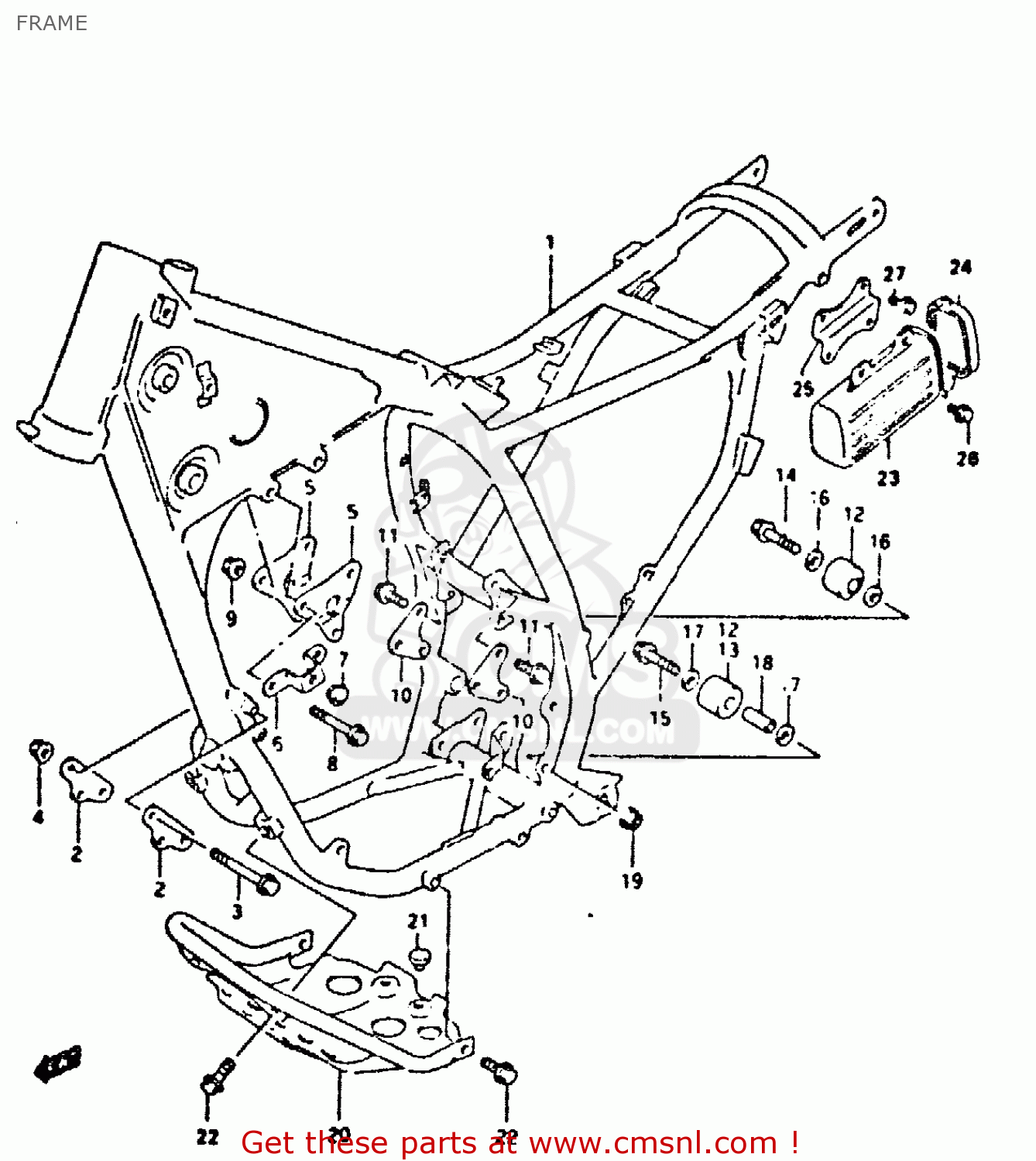

Frame diagram DR350 1991 (M)
FRAME DR350 1991 (M)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110014D010RP
ref: 1-1
MODEL L
FRAME
€ 1,797.50
1-2
4110014D101AZ
ref: 1-2
MODEL M
FRAME
€ 1,797.50
1-3
4110014D111AZ
ref: 1-3
MODEL N
FRAME
€ 1,797.50
1-4
4110014D111TS
ref: 1-4
MODEL P
FRAME
€ 1,797.50
1-5
4110014D1224K
ref: 1-5
MODEL R/S/T
FRAME COMP
€ 1,797.50
2
4191114D01
ref: 2
PLATE,ENGINE MOUNT FR
€ 21.00
3
0910308294
ref: 3
BOLT(8X85)
€ 4.50
4
0915908034
ref: 4
NUT
€ 2.00
5
4199114D01
ref: 5
PLATE,ENGINE MOUNT UPR
€ 30.50
6
4416414D00
ref: 6
PLATE,FUEL TANK STOPPER
€ 3.50
7
0932110018
ref: 7
CUSHION
€ 5.00
8
0910308293
ref: 8
BOLT(8X70)
€ 4.50
9
0915908034
ref: 9
NUT
€ 2.00
10
4197114D01
ref: 10
PLATE,ENGINE MOUNTING,REAR
€ 21.00
11
0910308283
ref: 11
BOLT(8X16)
€ 2.50
12-1
4391027C10
ref: 12-1
MODEL L
ROLLER,CHAIN
€ 36.50
12-2
4391027C10
ref: 12-2
MODEL M
ROLLER,CHAIN
€ 36.50
12-3
4391027C11
ref: 12-3
MODEL N/P/R/S/T
ROLLER,CHAIN
€ 36.50
13
4391101B10
ref: 13
MODEL L
ROLLER,CHAIN CONTROL
€ 14.50
14
0910308178
ref: 14
BOLT(8X38)
€ 5.00
15-1
0155008457
ref: 15-1
MODEL L
BOLT
€ 4.00
15-2
0910308068
ref: 15-2
MODEL M/N/P/R/S/T
BOLT 8X45
€ 4.50
16-1
0916008074
ref: 16-1
MODEL L/M
WASHER(8.5X13X1.6)
€ 2.50
16-2
0821108121
ref: 16-2
MODEL N/P/R/S/T
WASHER
€ 2.00
17-1
0916008021
ref: 17-1
MODEL L
WASHER (8.2X24X1.6)
€ 2.00
17-2
0916008074
ref: 17-2
MODEL M
WASHER(8.5X13X1.6)
€ 2.50
17-3
0821108121
ref: 17-3
MODEL N/P/R/S/T
WASHER
€ 2.00
18
0918008136
ref: 18
SPACER (8.6X13.8X28)
€ 9.00
19-1
0831320087
ref: 19-1
MODEL L/M/N/P
NUT
€ 2.50
19-2
0831320083
ref: 19-2
MODEL R/S/T
NUT
€ 2.50
20-1
4251014D0113L
ref: 20-1
MODEL L
PROTECTOR,ENGINE
€ 269.50
20-2
4251014D1013L
ref: 20-2
MODEL M/N/P/R/S/T
PROTECTOR,ENGINE(SILVER)
€ 269.50
21
0932110026
ref: 21
CUSHION
€ 9.00
22-1
0155008127
ref: 22-1
MODEL L/M/N/P
BOLT
€ 3.50
22-2
0155008123
ref: 22-2
MODEL R/S/T
BOLT
€ 3.50
23
4743114D00
ref: 23
OPT
HOLDER,TOOL
€ 25.50
24
4743214D00
ref: 24
OPT
CAP,TOOL HOLDER
€ 8.50
25
4744014D00
ref: 25
OPT
PLATE,TOOL HOLDER FITING
€ 0.00
26-1
0911606085
ref: 26-1
OPT, MODEL L/M/N/P
BOLT M6X16
€ 2.50
26-2
0911606144
ref: 26-2
OPT, MODEL R/S/T
BOLT 6X16
€ 2.50
27-1
0151706105
ref: 27-1
OPT, MODEL L/M/N/P
BOLT
€ 2.50
27-2
0155006103
ref: 27-2
OPT, MODEL R/S/T
BOLT
€ 2.50
