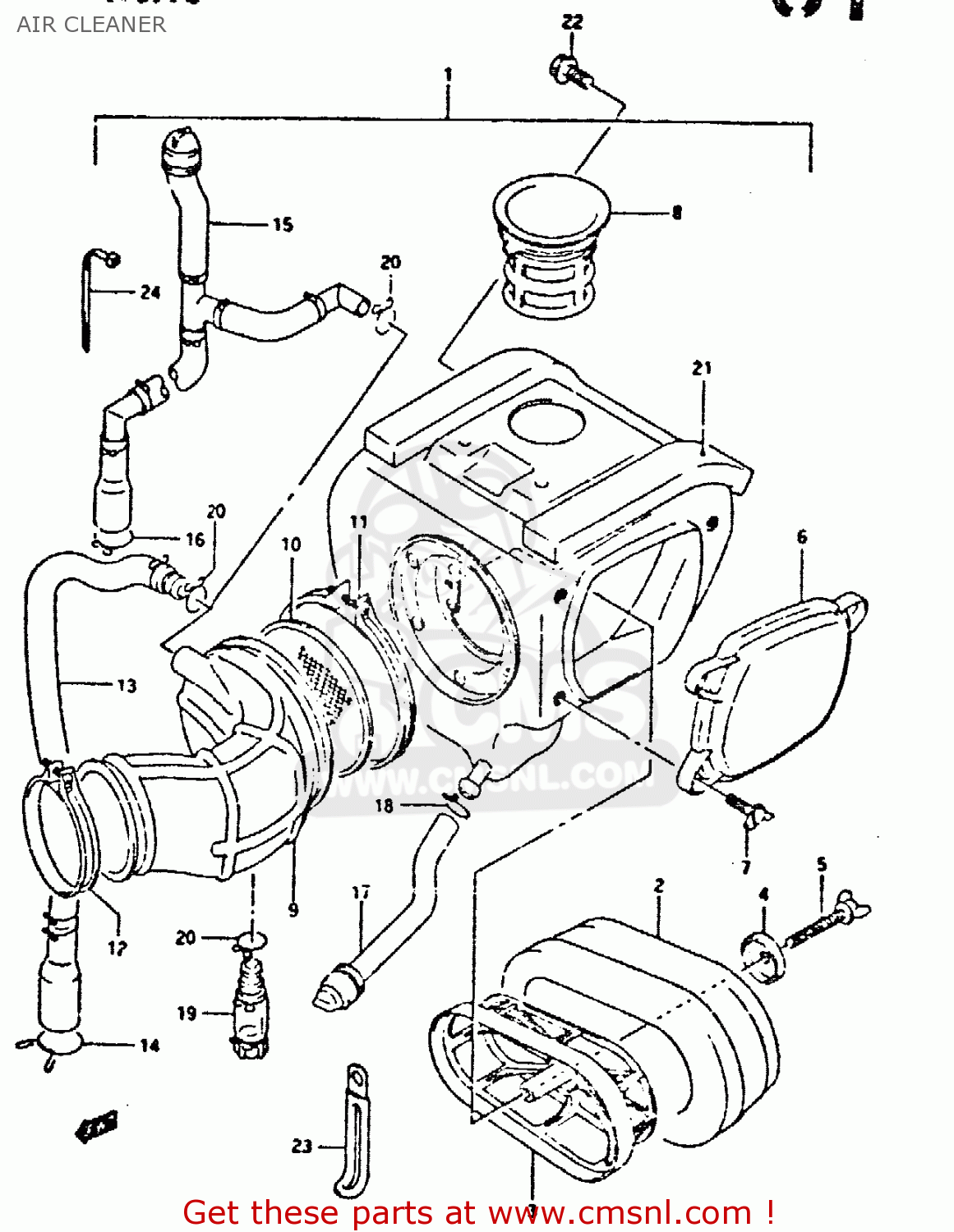

AIR CLEANER

ref

part #

description

quantity

1-1

1370014D02
ref: 1-1
MODEL L

CLEANER ASSEMBLY,AIR

€ 134.00

1-2

1370014D05
ref: 1-2
MODEL M/N

CLEANER ASSEMBLY,AIR

€ 134.00

1-3

1370014D06
ref: 1-3
MODEL P

CLEANER ASSEMBLY,AIR

€ 134.00

1-4

1370014D50
ref: 1-4
MODEL R/S/T

CLEANER ASSY,AIR

€ 0.00

2

1378014D02
ref: 2

FILTER

€ 35.50

3

1379114D00
ref: 3

HOLDER,FILTER

€ 25.00

4

1379213A01
ref: 4

WASHER,AIR CLEANER

€ 3.00

5

1383102B00
ref: 5

BOLT,WING

€ 4.00

6

1374014D00
ref: 6

CAP,AIR CLEANER

€ 20.50

7-1

1383714D01
ref: 7-1
MODEL L/M/N/P

BOLT,WING

€ 6.00

7-2

0214205207
ref: 7-2
MODEL R/S/T

SCREW

€ 2.00

8

1389114D02
ref: 8

TUBE,INLET

€ 17.00

9

1388114D03
ref: 9

TUBE,OUTLET

€ 47.00

10

1381014D02
ref: 10

TRAP,FRAME

€ 6.50

11-1

1382614D00
ref: 11-1
MODEL L

CLAMP

€ 7.50

11-2

1382614D01
ref: 11-2
MODEL M/N/P/R/S/T

CLAMP,OUTLET TUBE

€ 7.50

12

0940256208
ref: 12

CLAMP

€ 3.50

13

1385014D00
ref: 13
MODEL L

TUBE,BREATHER

€ 0.00

14

1382414D00
ref: 14
MODEL L

CLIP

€ 3.50

15-1

1385014D22
ref: 15-1
MODEL M/N/P

TUBE,BREATHER

€ 65.50

15-2

1385014D50
ref: 15-2
MODEL R/S/T

TUBE,BREATHER

€ 31.50

16-1

1382414D00
ref: 16-1
MODEL L/M/N/P

CLIP

€ 3.50

16-2

0940114301
ref: 16-2
MODEL R/S/T

CLIP

€ 2.00

17

1387014D20
ref: 17

TUBE,DRAIN A

€ 15.50

18

0940114301
ref: 18

CLIP

€ 2.00

19

1387011458
ref: 19

TUBE,DRAIN

€ 13.50

20

0940114301
ref: 20

CLIP

€ 2.00

21

1373614D00
ref: 21

CUSHION

€ 29.50

22-1

0155006127
ref: 22-1
MODEL L/M/N/P

BOLT

€ 2.50

22-2

0155006123
ref: 22-2
MODEL R/S/T

BOLT

€ 2.50

23-1

0940408404
ref: 23-1
MODEL L/M/N/P/R/S

CLAMP

€ 3.00

23-2

0940408419
ref: 23-2
MODEL T

CLAMP(L:80)

€ 2.00

24-1

0940718402
ref: 24-1
MODEL M/N/P/R/S

CLAMP(L:165)

€ 2.50

24-2

0940718403
ref: 24-2
MODEL T

CLAMP L:165

€ 2.50

all assemblies
