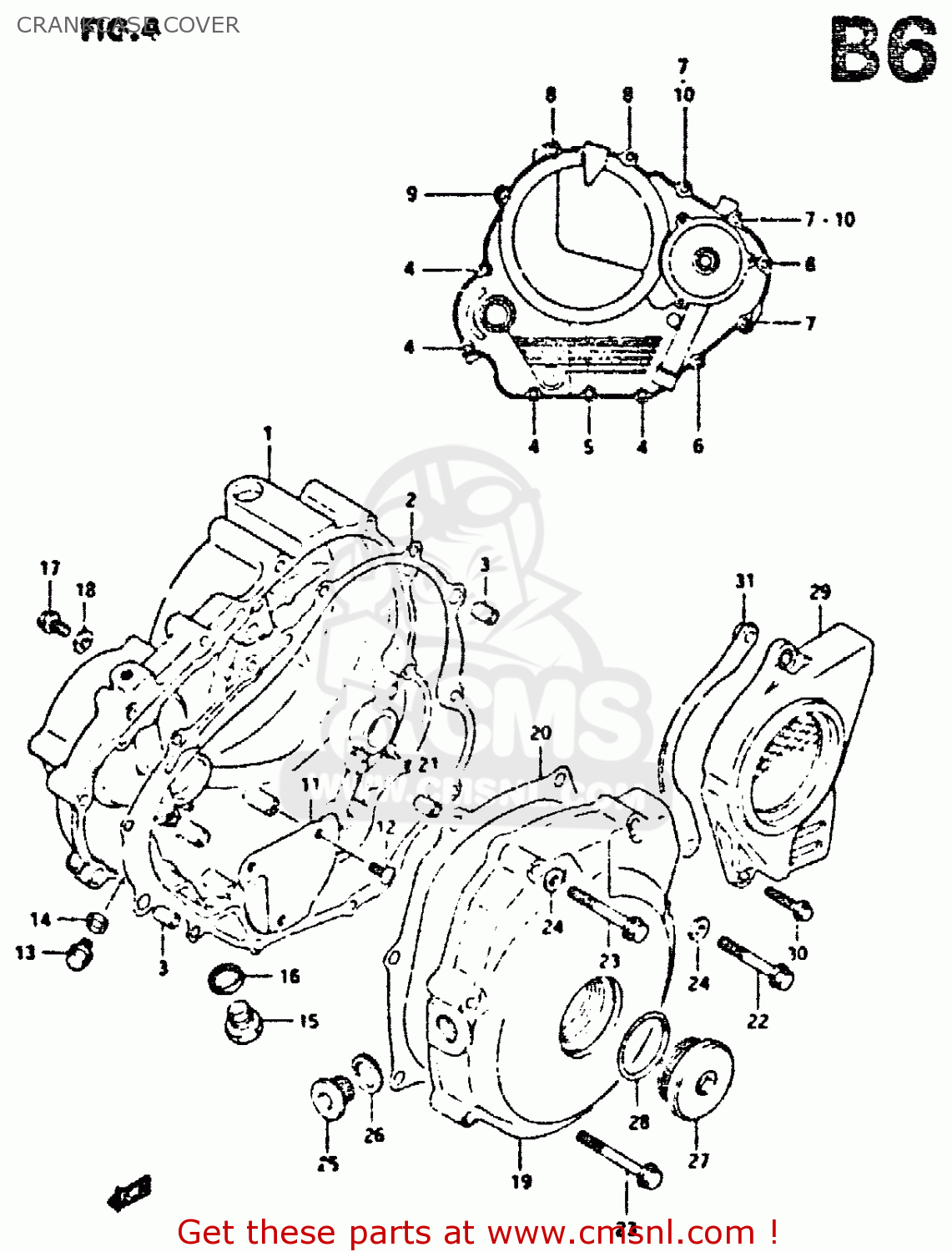

CRANKCASE COVER

ref

part #

description

quantity

1-1

1134114D02
ref: 1-1
MODEL L/M/N11341-14D

COVER,CLUTCH

€ 261.00

1-2

1134114D06
ref: 1-2
MODEL P/R/S/T

COVER,CLUTCH

€ 261.00

2

1148214D03
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 24.50

3

0421109149
ref: 3

PIN

€ 2.00

4-1

0154706254
ref: 4-1
MODEL L

BOLT 6X25

€ 2.50

4-2

0154706257
ref: 4-2
MODEL M/N/P

BOLT

€ 2.50

4-3

0154706253
ref: 4-3
MODEL R/S/T

SCREW

€ 2.50

5-1

0154706304
ref: 5-1
MODEL L

BOLT 6X30

€ 2.50

5-2

0154706307
ref: 5-2
MODEL M/N/P

BOLT

€ 2.50

5-3

0154706303
ref: 5-3
MODEL R/S/T

BOLT,G/S SWITC

€ 3.00

6-1

0154706354
ref: 6-1
MODEL L

BOLT 6X35

€ 3.00

6-2

0154706357
ref: 6-2
MODEL M/N/P

BOLT

€ 2.50

6-3

0154706353
ref: 6-3
MODEL R/S/T

BOLT

€ 3.00

7-1

0154706404
ref: 7-1
MODEL L

BOLT 6X40

€ 3.00

7-2

0154706407
ref: 7-2
MODEL M/N/P

BOLT

€ 2.50

7-3

0154706403
ref: 7-3
MODEL R/S/T

BOLT

€ 3.00

8-1

0154706605
ref: 8-1
MODEL L

BOLT (6X60)

€ 3.50

8-2

0154706607
ref: 8-2
MODEL M/N/P

BOLT

€ 2.50

8-3

0154706603
ref: 8-3
MODEL R/S/T

BOLT

€ 3.50

9-1

0154706654
ref: 9-1
MODEL L

BOLT

€ 2.00

9-2

0154706657
ref: 9-2
MODEL M/N/P

BOLT

€ 2.00

9-3

0154706653
ref: 9-3
MODEL R/S/T

BOLT

€ 2.00

10-1

0916806023
ref: 10-1
MODEL L/M/N/P/R

GASKET(5.8X13X1.2) (NAS)

€ 2.00

10-2

0916806024
ref: 10-2
MODEL S/T

GASKET(5.8X11X1.2) (NAS)

€ 2.00

11

1134914D00
ref: 11

SEPARATOR,OIL RETURN

€ 4.50

12-1

0912505042
ref: 12-1
MODEL L/M/N/P

SCREW(5X10)

€ 2.50

12-2

0214205103
ref: 12-2
MODEL R/S/T

SCREW

€ 2.50

13

0910306078
ref: 13

BOLT(6X8)

€ 2.00

14

0916806004
ref: 14

GASKET(6.2X11X1).2 (NAS)

€ 1.50

15-1

0924814005
ref: 15-1
MODEL L/M/N

PLUG,14X12

€ 5.00

15-2

0924810007
ref: 15-2
MODEL P/R/S/T

PLUG(10X6.8)

€ 4.50

16-1

0916814004
ref: 16-1
MODEL L/M/N

GASKET(14X19.2X2) (NAS)

€ 2.50

16-2

0916810002
ref: 16-2
MODEL P/R/S/T

GASKET(10X14X3.6) (NAS)

€ 2.00

17

0912806043
ref: 17

SCREW (6X10)

€ 2.00

18-1

0916806023
ref: 18-1
MODEL L/M/N/P/R

GASKET(5.8X13X1.2) (NAS)

€ 2.00

18-2

0916806024
ref: 18-2
MODEL S/T

GASKET(5.8X11X1.2) (NAS)

€ 2.00

19-1

1135114D02
ref: 19-1
MODEL L/M/N

COVER,MAGNETO

€ 92.00

19-2

1135114D10
ref: 19-2
MODEL P/R/S/T

COVER,MAGNETO

€ 189.00

20

1148314D03
ref: 20

GASKET,MAGNETO COVER (NAS)

€ 23.00

21

0421109149
ref: 21

PIN

€ 2.00

22-1

0154706354
ref: 22-1
MODEL L

BOLT 6X35

€ 3.00

22-2

0154706357
ref: 22-2
MODEL M/N

BOLT

€ 2.50

22-3

0154706357
ref: 22-3
MODEL P

BOLT

€ 2.50

22-4

0154706353
ref: 22-4
MODEL R/S/T

BOLT

€ 3.00

23-1

0154706454
ref: 23-1
MODEL L

BOLT

€ 3.00

23-2

0154706457
ref: 23-2
MODEL M/N

BOLT

€ 2.50

23-3

0154706457
ref: 23-3
MODEL P

BOLT

€ 2.50

23-4

0154706453
ref: 23-4
MODEL R/S/T

BOLT

€ 3.00

24-1

0916806023
ref: 24-1
MODEL L/M/N/P/R

GASKET(5.8X13X1.2) (NAS)

€ 2.00

24-2

0916806024
ref: 24-2
MODEL S/T

GASKET(5.8X11X1.2) (NAS)

€ 2.00

25

0924814005
ref: 25
09248-14011

PLUG,14X12

€ 5.00

26

0916814002
ref: 26

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

27

092593601620H
ref: 27
09259-36016

PLUG(SILVER)

€ 10.50

28

0928033004
ref: 28

O RING(D:3.1,ID:32.7)

€ 2.50

29

1136014D01
ref: 29

COVER,ENGINE SPROCKET

€ 84.00

30-1

0154700254
ref: 30-1
MODEL L

BOLT

€ 0.00

30-2

0154706257
ref: 30-2
MODEL M/N/P

BOLT

€ 2.50

30-3

0154706253
ref: 30-3
MODEL R/S/T

SCREW

€ 2.50

31-1

2764014D01
ref: 31-1
MODEL L/M/N/P

PLATE,FR CHAIN GUIDE

€ 59.50

31-2

2764014D10
ref: 31-2
MODEL R/S/T

PLATE,FR CHAIN GUIDE

€ 14.50

all assemblies
