TAIL LAMP

DR350 1996 (T)

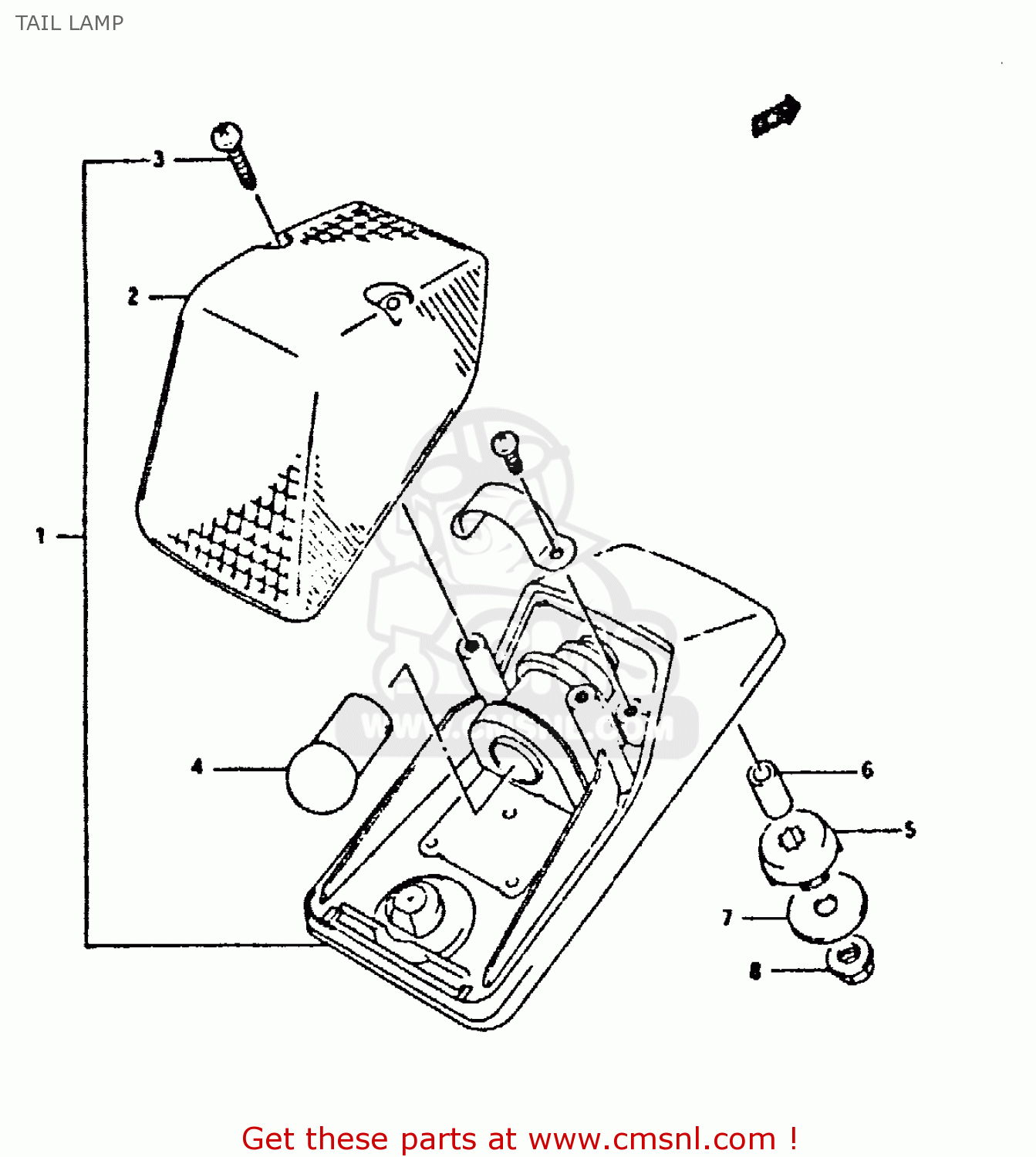

Tail lamp diagram DR350 1996 (T)

prices are in EUR

ref

part #

description

quantity

3571014D00
ref: 1

LAMP ASSY,TAIL

€ 62.50

3571203D00
ref: 2

LENS

€ 18.50

0351104163
ref: 3

SCREW

€ 1.50

0947112140
ref: 4

BULB(12V5W,BF150-40160A)

€ 4.00

0932009010
ref: 5

CUSHION

€ 2.50

0918006121
ref: 6

SPACER(6.4X9.2X12)

€ 2.50

7-1

0916006060
ref: 7-1
MODEL L/M/N/P/R

WASHER

€ 2.00

7-2

0916006077
ref: 7-2
MODEL S/T

WASHER(6.5X20X1.2)

€ 2.00

8-1

0831610063
ref: 8-1
MODEL L/M/N

NUT

€ 2.50

8-2

0831000063
ref: 8-2
MODEL P/R/S/T

NUT 6MM

€ 2.00
